Rockwell Automation Publication 2198-UM002L-EN-P - October 2021 241
Chapter 6 Configure and Start the Kinetix 5700 Drive System

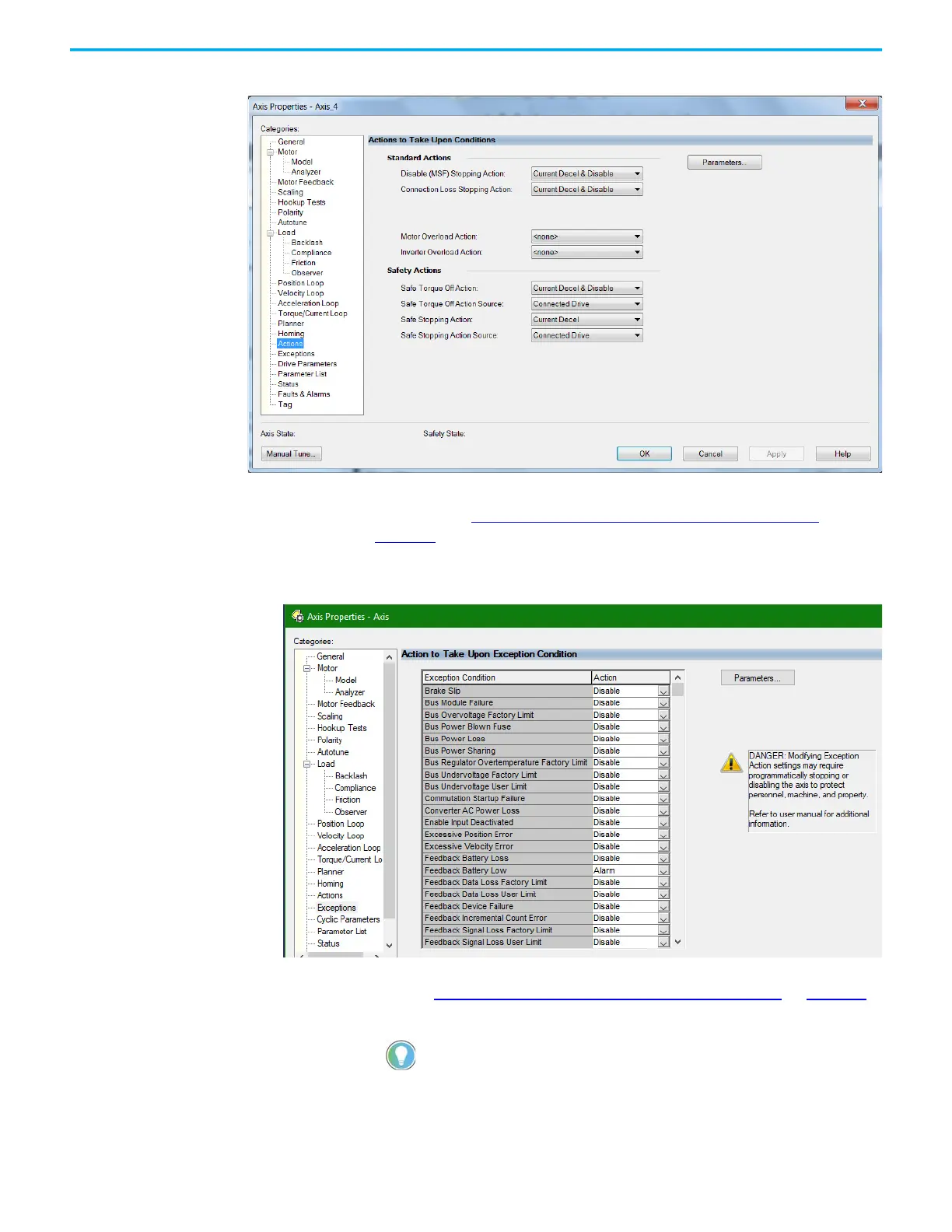

The Actions to Take Upon Conditions dialog box appears.
From this dialog box you can program actions for the drive module to
take. Refer to Logix 5000 Controller and Drive Module Behavior
on
page 264
for more information.
17. Select the Exceptions category.
The Action to Take Upon Exception Condition dialog box appears.
From this dialog box you can change the action for exceptions (faults).
Refer to Logix 5000 Controller and Drive Module Behavior
on page 264
for more information.
18. Select the Parameter List category.
In the Logix Designer application, version 32 and later, Disable
replaced StopDrive as the default Action.
To Next Page
