Section 06 ENGINE MANAGEMENT (RFI)
Subsection 01 (OVERVIEW)
Remove spark plugs and dry them using a rag.
Cover spark plug holes with a rag.
While engine is stopped, depress and HOLD the
throttle lever at full throttle position for cranking.
Crank the engine several times.
Reinstall spark plugs and connect cables.
Start engine normally without applying the throt-
tle.

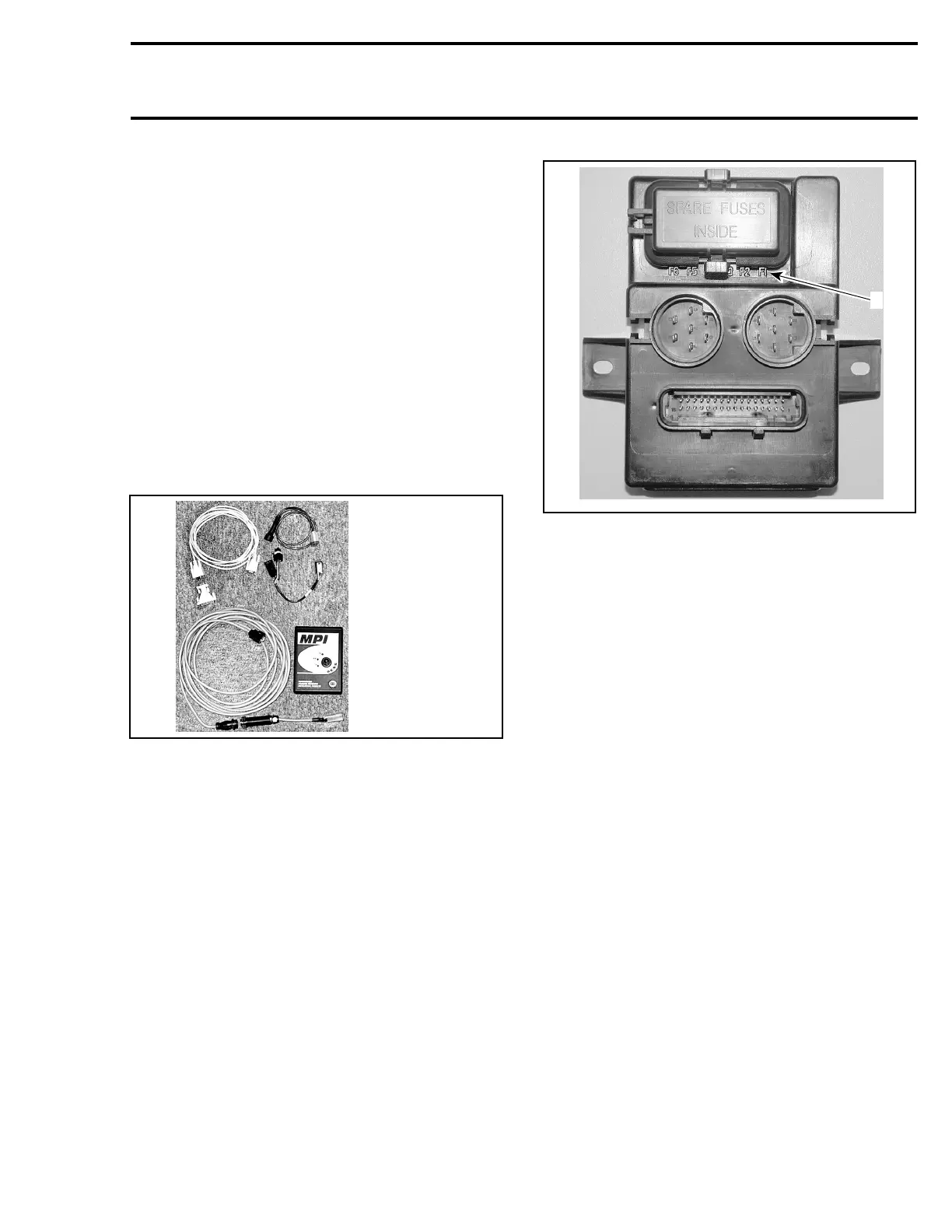

Diagnostic Mode
The malfunctions are recorded in the memory
of the ECM. The memory of the ECM can be
checked using the VCK (Vehicle Communication
Kit) (P/N 529 035 981) to see the fault codes.
Refer to the DIAGNOSTIC PROCEDURES sub-
section.
529 035 981
Vehicle Control Module (VCM)
TheVCMismountedonthesamesupportasthe
ECM, in the front of the engine.
1
F22H0NA
1. VCM
The VCM is responsible of the following electrical
functions:
Power Distribution
A power supply cut-off relay isolates the battery
from the electrical system to prevent battery drain.
When the safety lanyard is installed, the relay then
supplies current to the VCM.
The relay is located inside VCM.
The VCM distributes power from the battery to the
following electrical components:
– accessories
– fuel pump
– RAVE solenoid
– Ignition coil
– starter solenoid
– injectors
– ECM
Electrical components are protected by fuses in-
tegratedintheVCMandinseparatefuseholders
close to VCM. Fuses are identified besides their
holder on VCM.
smr2005-054 113
