Section 06 ENGINE MANAGEMENT (RFI)
Subsection 01 (OVERVIEW)
1
F22H0NA

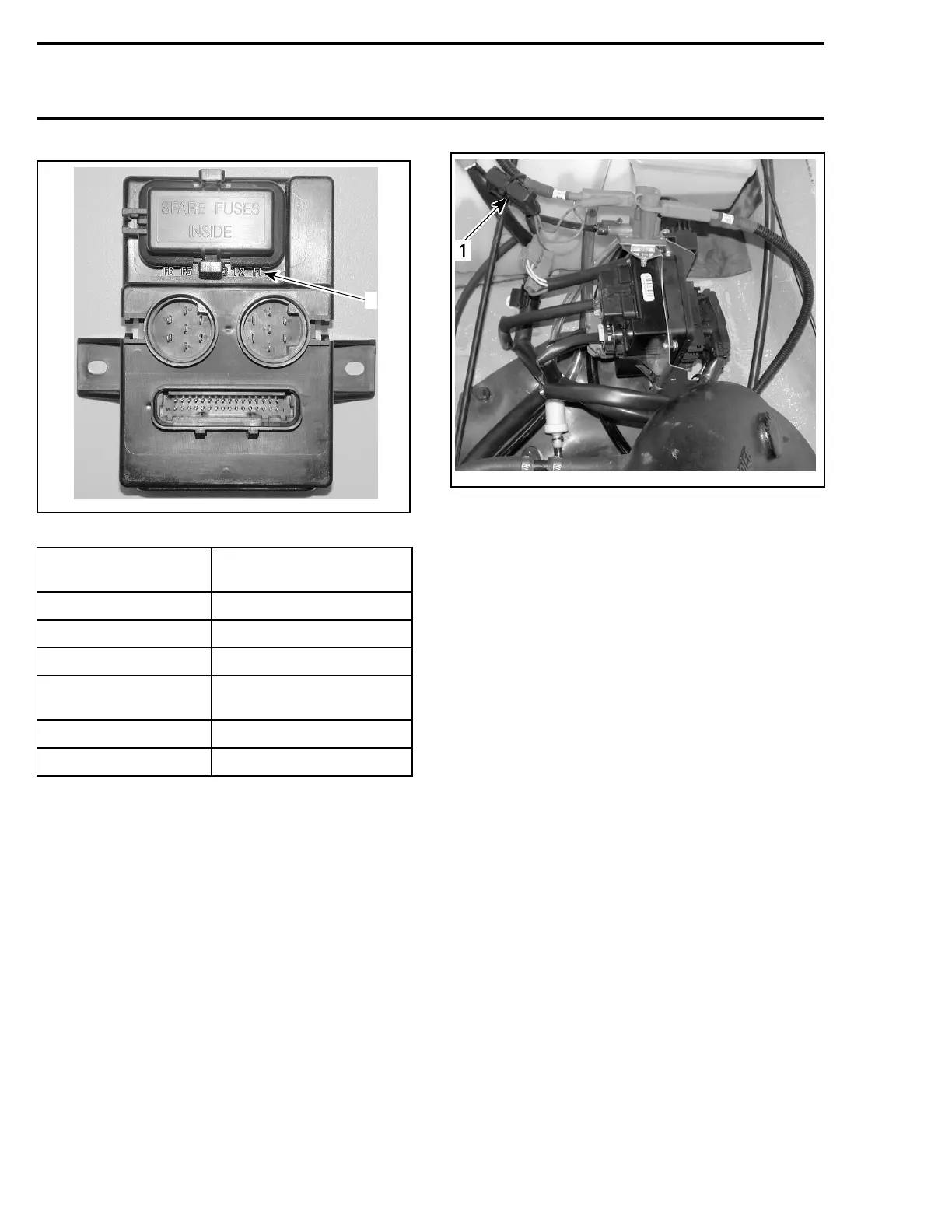

1. Fuse location and identification
FUSE
IDENTIFICATION
FUSE CAPACITY AND
FUNCTION
F1 5 A, Accessories
F2
10 A, Fuel pump
F3 5 A, RAVE solenoid
F4
10 A, Ignition coil and
starter solenoid
F5
3 A, Injector 1 (MAG)
F6
3 A, Injector 2 (PTO)
smr2005-054-004_b
TYPICAL
1. Fuse holders of the main fuse (VCM and charging fuse)
Gauges Current Supply
When installing the safety lanyard it activates the
reading of gauges without the engine running. It
will give access to most functions of the informa-
tion center gauge (if so equipped) without starting
the engine.
NOTE: The fuel pump will be activated for 2 sec-
onds to build up pressure in the fuel injection sys-
tem.
Low-Fuel and Low-Oil Level Warning Device
When the fuel level in the reservoir is low, the fuel
level sensor transmits a signal to the VCM. The
VCM sends out signals to the beeper and to the
information center gauge or to the indicator light
cluster.
When the oil level is low in the reservoir, the VCM
sends out a signal to the information center gauge
or to the indicator light cluster and the pilot lamp
on the gauge will turn on.
O.T.A.S. (Off-Throttle Assisted Steering)
The O.T.A.S. system is electronically activated by
the VCM.
The O.T.A.S. system provides additional maneu-
verability in some off-throttle situations. Refer to
STEERING SYSTEM for more details on this sys-
tem.
114 smr2005-054
