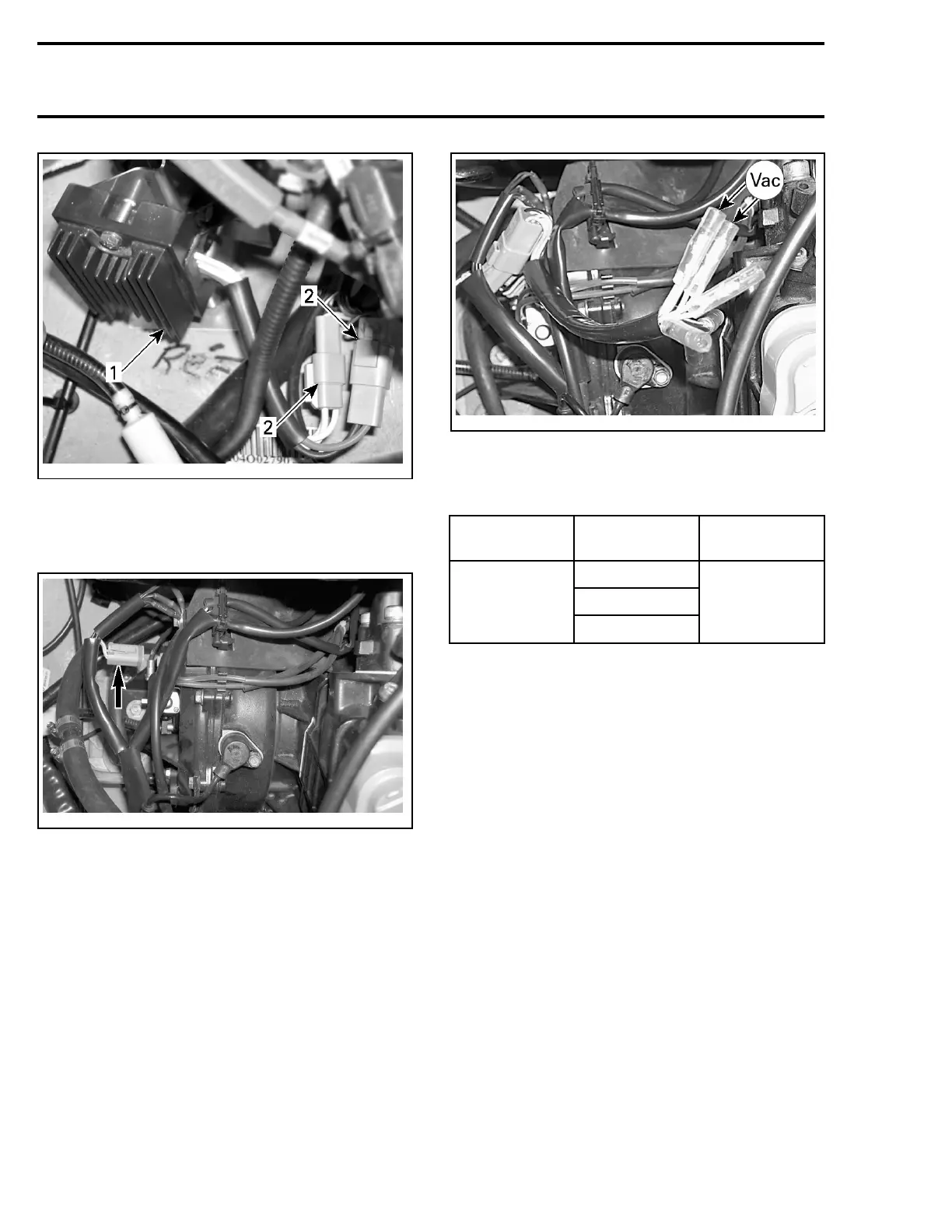

Section07ELECTRICALSYSTEM
Subsection 02 (CHARGING SYSTEM)
smr2005-058-009_a
1. Voltage regulator/rectifier
2. Unplug connectors
– Disconnect the magneto wiring harness con-
nector.
smr2005-058-006_a
– Install the 4-pin magneto harness adapter
(P/N 295 000 131) between unplugged connec-
tors.
– Connect test probes of the multimeter between
YELLOW wires.
smr2005-058-007_b
– Set multimeter to Vac scale.
– Start engine.
– Connect multimeter between YELLOW wires.
TEST ENGINE
SPEED
TERMINAL VOLTAGE
1and2
1and33500 RPM
2and3
45 - 70 Vac
– Read voltage.
– If voltage is out of specification, replace stator.
– Replug connectors properly.
174 smr2005-058
