SeaDoo 3D User Manual

Section 07 ELECTRICAL SYSTEM
Subsection 03 (STARTING SYSTEM)

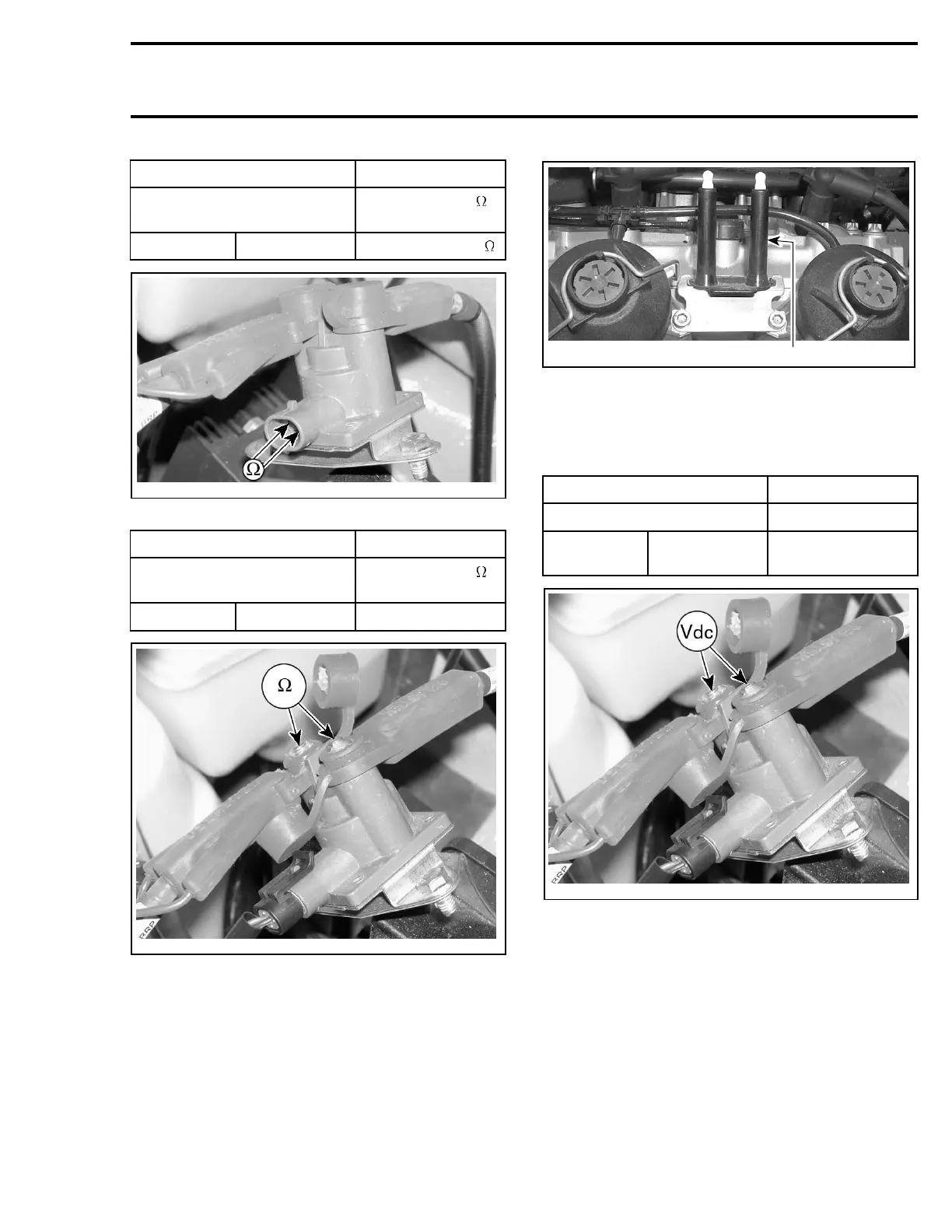

SOLENOID CONNECTOR MEASUREMENT
PIN
RESISTANCE
@20°C(68°F)
A B approximately 5
smr2005-059-004_a
TYPICAL
SOLENOID CONNECTOR MEASUREMENT
PIN
RESISTANCE
@20°C(68°F)
Battery post Starter post Open circuit
smr2005-059-005_b
TYPICAL
If any measurement is out of specification, replace
solenoid.
Dynamic Test
Disconnect spark plug cables and
connect them
on grounding device.
NOTE: This is done to avoid engine starting.
1
F01H7DA
1. Grounding device
Depress start/stop button and while engine is
cranking, measure the voltage drop as follows
with a multimeter.
SOLENOID CONNECTOR MEASUREMENT
PIN VOLTAGE
Post coming
from battery
Post going to
starter
0.2 Vdc max.
smr2005-059-005_a
TYPICAL
If voltage is out of specification, replace solenoid.
Electrical Cables or Connections
Check all connections, grounds, cables and wires.
Tighten any loose cables. Replace any chafed
wires.
smr2005-059 189
