Section 07 ELECTRICAL SYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)

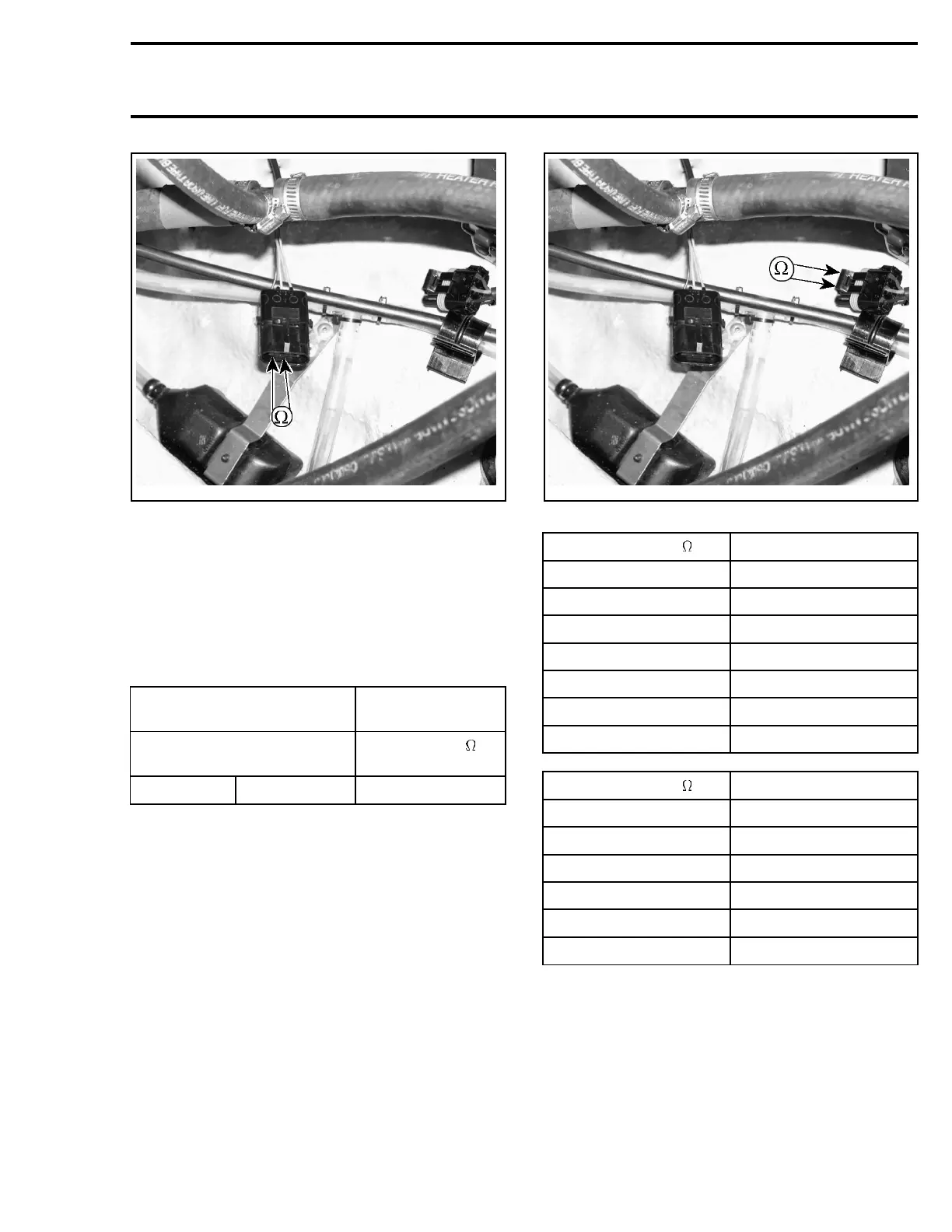

smr2005-060-003_a
SENSOR CONNECTOR
If resistance is out of specification, replace the
speed sensor. Otherwise, perform the following
procedure.
Water Temperature Input
Disconnect the speed sensor connector.
Connect potentiometer test probes as follows.
MAIN HARNESS
CONNECTOR
MEASUREMENT
PIN
RESISTANCE @
20°C(68°F)
B C See table below.
Adjust potentiometer to the resistance values as
per following chart to test the accuracy of the In-
formation Center.
smr2005-060-003_b
MAIN HARNESS CONNECTOR
RESISTANCE ( ) TEMPERATURE (°C)
25407 5±2
19911 10 ± 2
15718 15 ± 2
12495 20 ± 2
10000 25 ± 2
8054 30 ± 2
6528 35 ± 2
RESISTANCE ( ) TEMPERATURE (°F)
22799
45 ± 4
17262
55 ± 4
13470 65 ± 4
10496
75 ± 4
8264 85 ± 4
6528 95 ± 4
If out of specification, check wiring harness/con-
nectors. If good, try a new Information Center.
Exterior Temperature
Exterior Temperature Sensor
Temperature sensor is located on inner side of
storage cover.
smr2005-060 203
