Section 08 COOLING SYSTEM

Subsection 01 (COMPONENTS AND CIRCUIT)

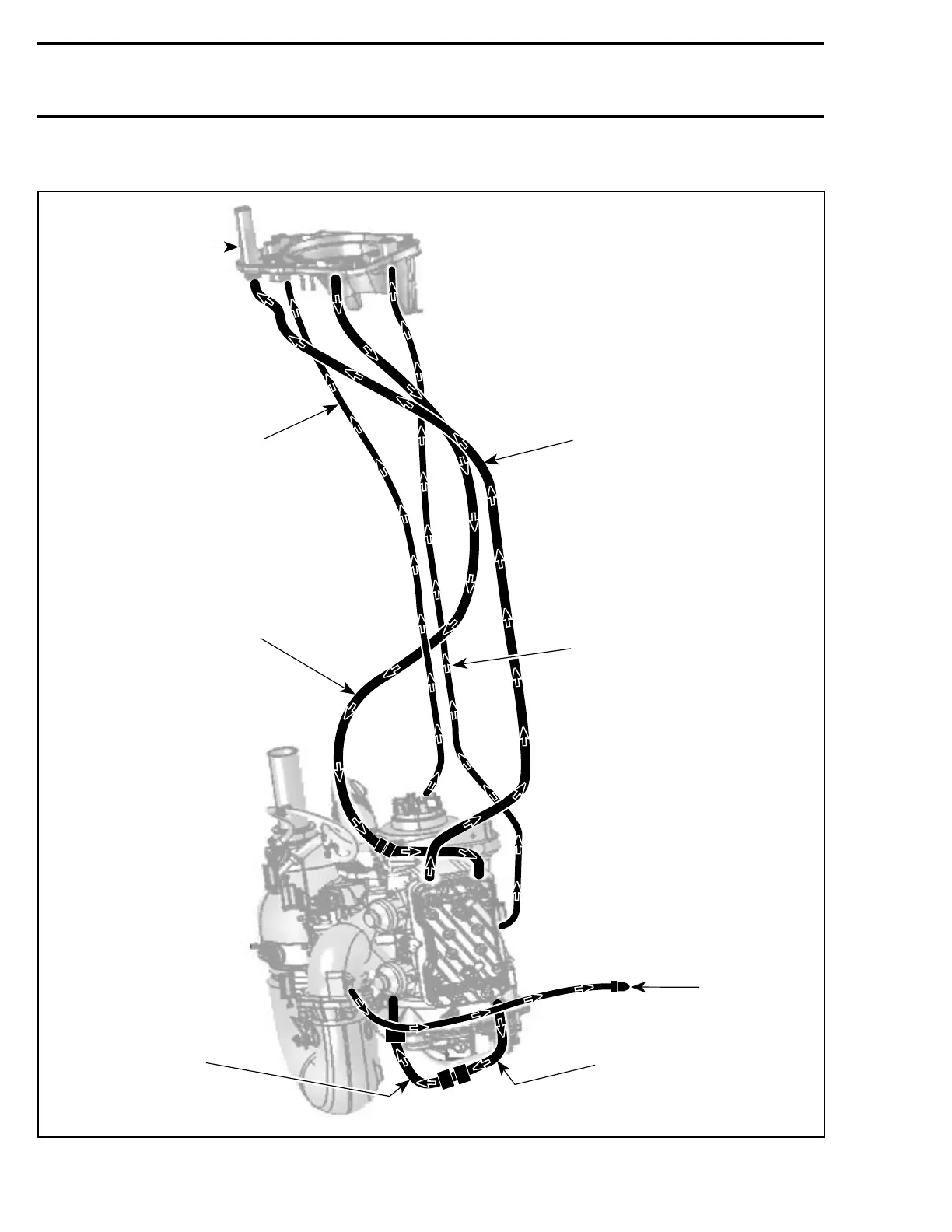

787 RFI Engines (3D Series)

Tuned pipe

water jacket

supply hose

Cooling system

indicator hose (C.S.I.)

Cylinder head

outlet hose

Engine water

supply hose

Engine drain hose

(from cylinders)

Engine water

outlet hose

Hose adaptor

(flushing)

Crankcase heat

exchanger outlet

hose
