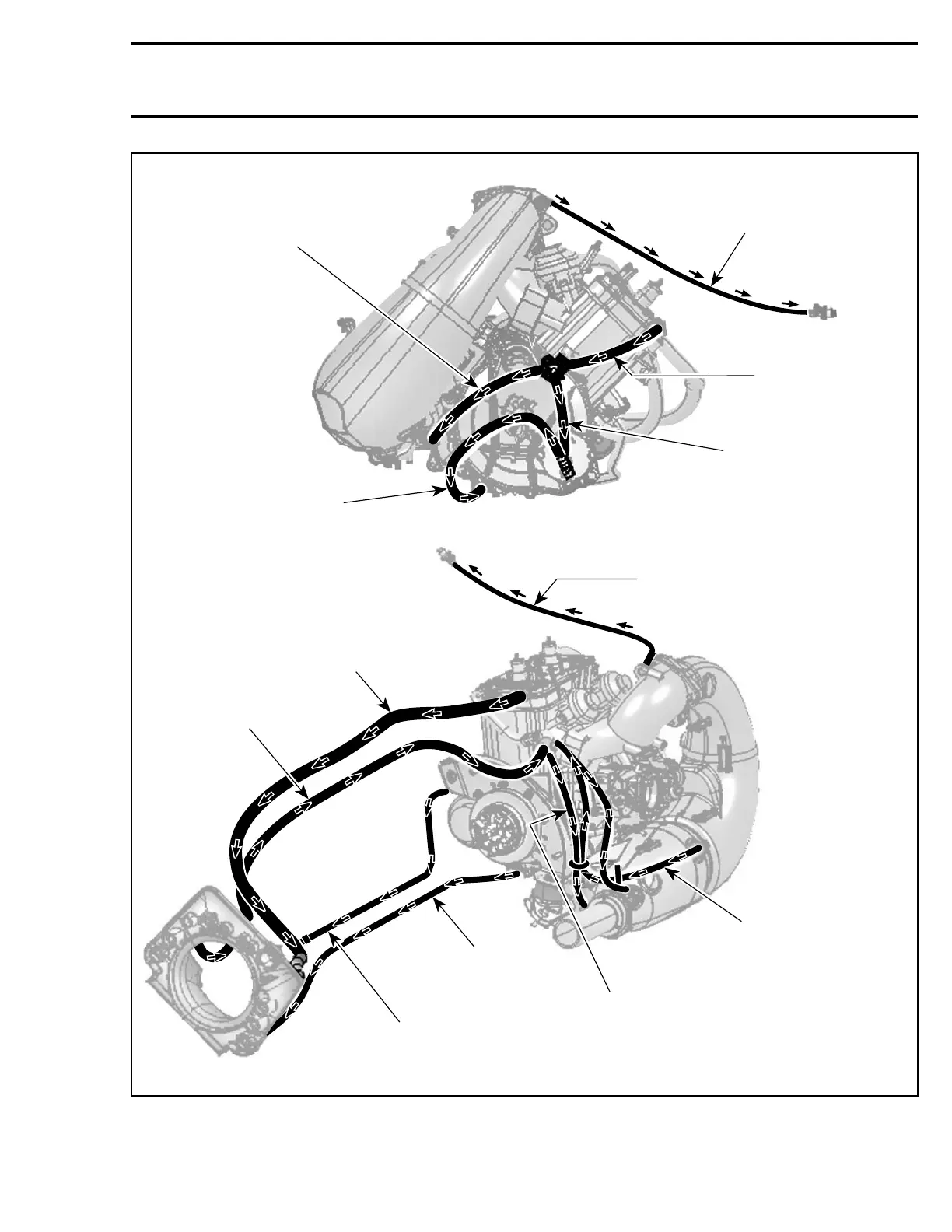

Section 08 COOLING SYSTEM
Subsection 01 (COMPONENTS AND CIRCUIT)
Tuned pipe water jacket
supply hose
Cooling system
indicator hose (C.S.I.)
Magneto heat exchange
outlet hose (to crankcase
heat exchange inlet)
Cylinder head
outlet hose
Magneto heat
exchange
inlet hose
Anti-rollover
bypass hose
CAUTION: Do not modify
routing or hose length.
Engine drain hose
(from cylinders)
Crankcase heat
exchange
outlet hose
Tuned pipe
water jacket
supply hose
Cooling system
indicator hose (C.S.I.)
Engine water
outlet hose
Engine water
supply hose
smr2005-061-002_aen
smr2005-061 225
