Section09PROPULSION
Subsection 01 (JET PUMP)
F01J5EA
1
3
2

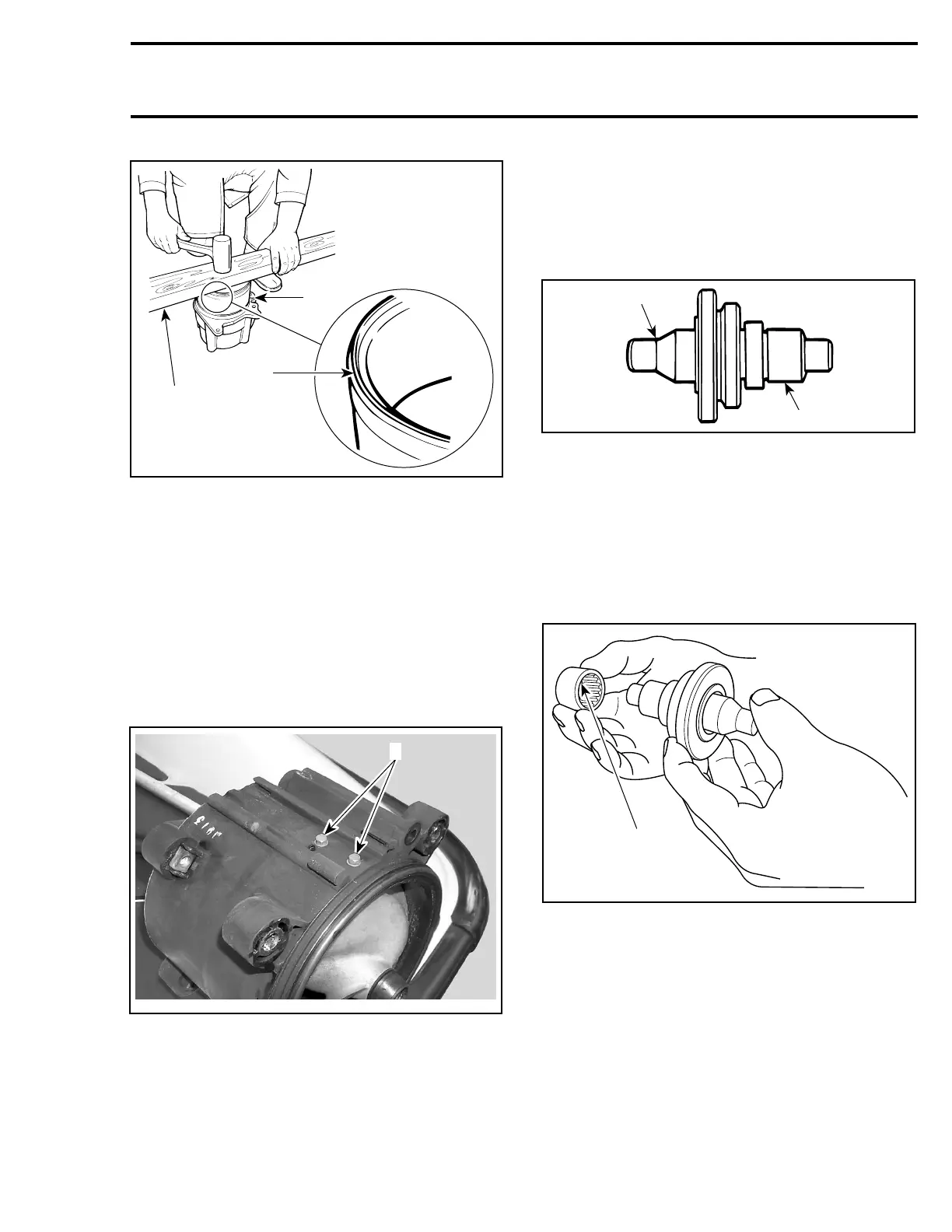

1. Piece of wood
2. Seal lip facing upward
3. Wear ring
After wear ring installation, it is required to fit
screws no. 12 to wear ring. Using their holes in
jet pump housing as a drilling guide, drill 4.5 mm
(11/64 in) diameter holes in wear ring.
CAUTION: Drill carefully paying attention
not to damage threads in jet pump housing.
Drilling holes prior to screw installation will
avoid wear ring deformation.
Install screws and torque to 6 N•m(53lbf•in).
F08J06B
1
1. Screws
Seal and Needle Bearing
Impeller Side
Bearing no. 16 and seal no. 7 on impeller side
will be properly installed in housing using the bear-
ing/seal installer tool (P/N 295 000 107).
F01J4KA
2
1
BEARING/SEAL INSTALLER TOOL
1. Seal side
2. Bearing side
Stamped end of bearings (showing identification
markings) must be located toward outside of
housing.
Properly insert bearing on tool. Using an arbor
press only, push tool until tool flange contacts
housing.
F01J1HA
1
1. Stamped end facing tool
CAUTION: Never hammer the bearing into its
housing.
smr2005-062 243
