Section 10 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
1
2

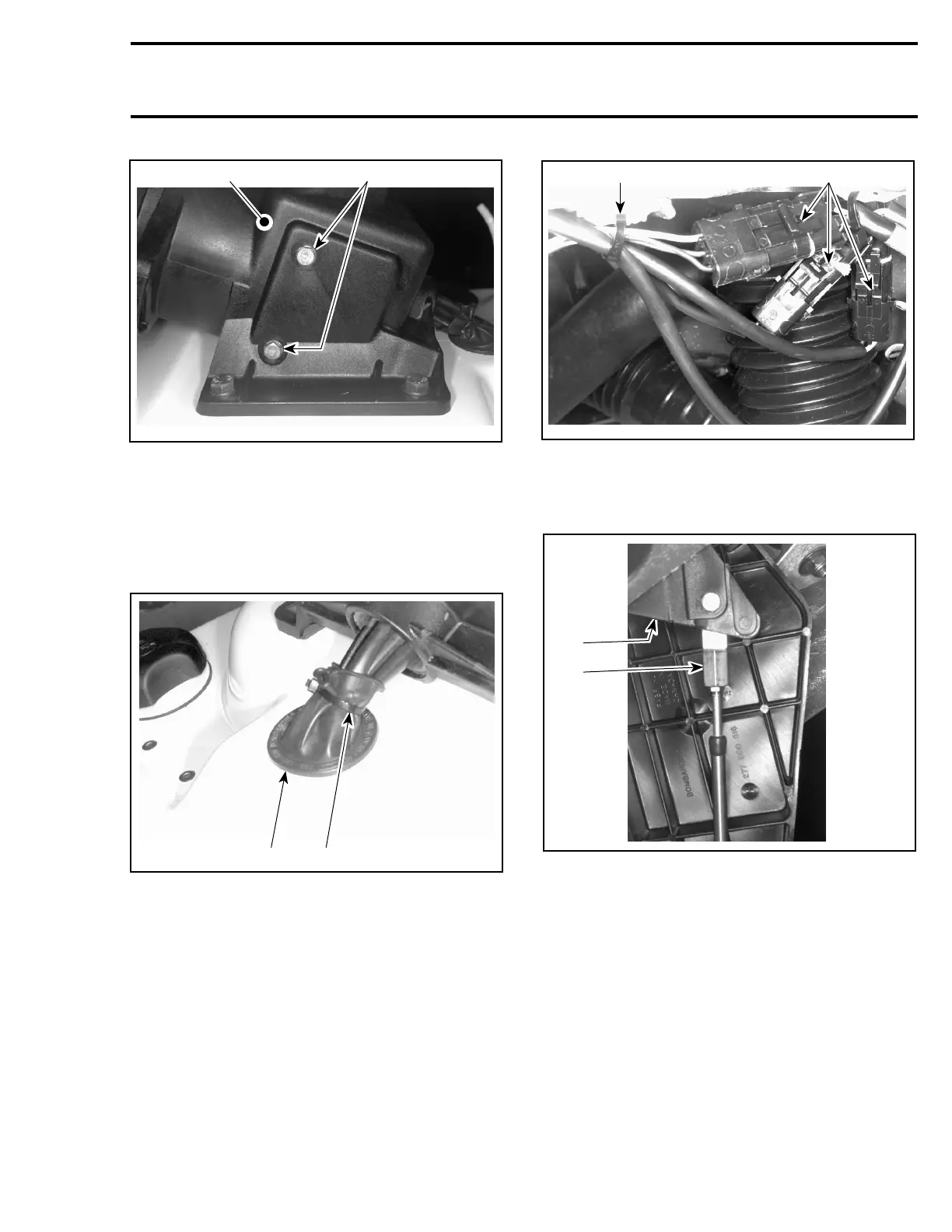

F07K03A
RIGHT SIDE
1. Steering support
2. Bolts
Remove cable support no. 23.
Steering Support
Cut locking tie securing wiring harness boot.
F07K04A
1 2
TYPICAL
1. Boot
2. Locking tie
In accordance with the engine, disconnect throttle
and choke cables from carburetor or disconnect
throttle cable from throttle body.
Disconnect the wiring harnesses leading out of
steering stem no. 17 and cut locking tie.
F07K05A
21
1. Tie rap
2. Connectors
Disconnect the steering cable from the steering
stem arm no. 24.
F07K06A
1
2
1. Steering stem arm
2. Steering cable
Remove bolts no. 21 retaining cable support
no. 23 to steering support no. 22.
Remove bolts no. 25 and lock nuts no. 26 from
steering retaining strip studs.
smr2005-066 281
