Section 10 STEERING SYSTEM

Subsection 01 (STEERING SYSTEM)

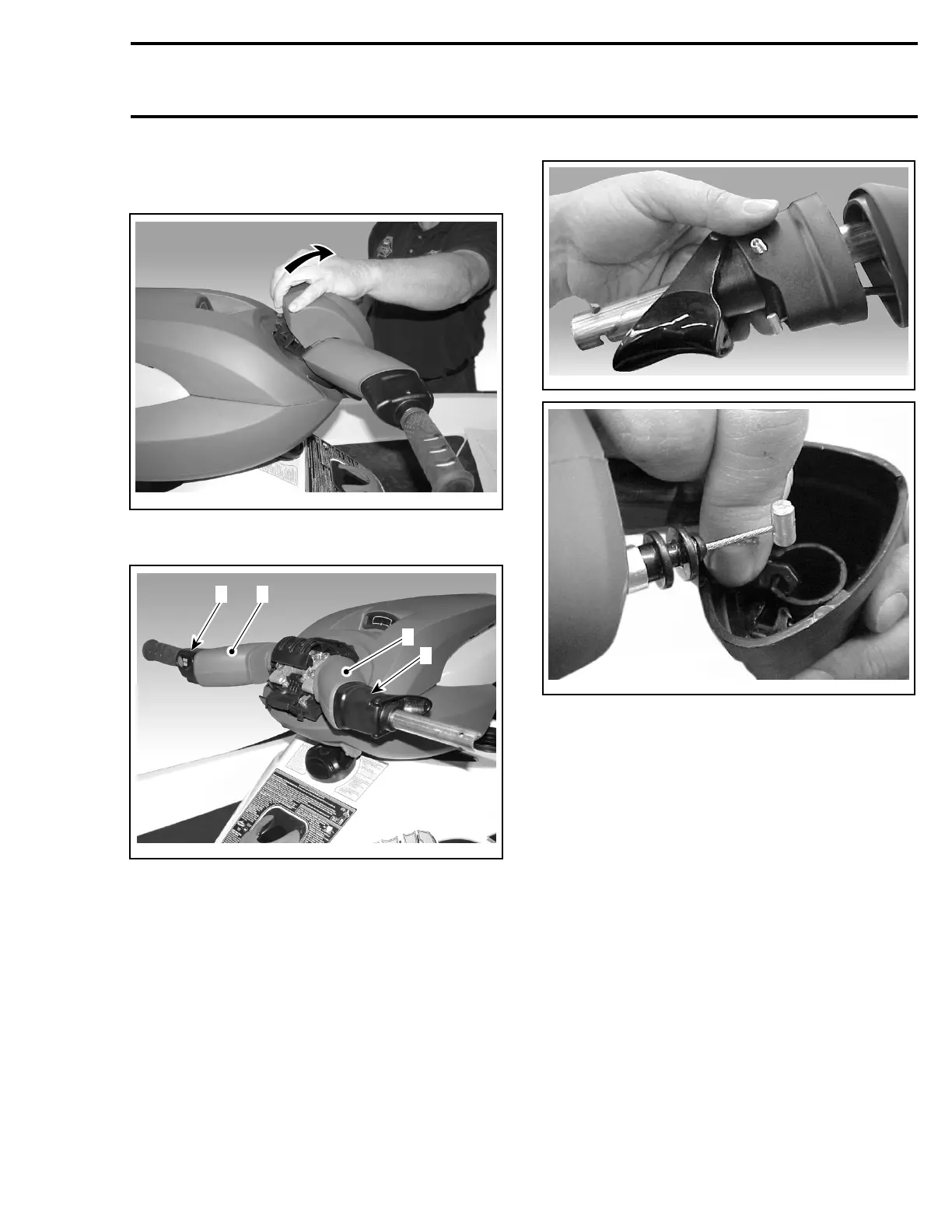

Steering Cover

Pull up steering padding no. 10.

F22K0LA

Loosen set screws no. 11 of handlebar housings

no. 12 and no. 13.

F22K0MA

1. Cover

2. Screw

RH Cover

Unhook throttle cable.

F22K0NA

F22K0OA

Pull out throttle housing no. 12.

Remove cover no. 14.

LH Cover

Pull out start/stop switch housing no. 13.

Remove switches from housing.

Remove cover no. 15.

smr2005-066 289
