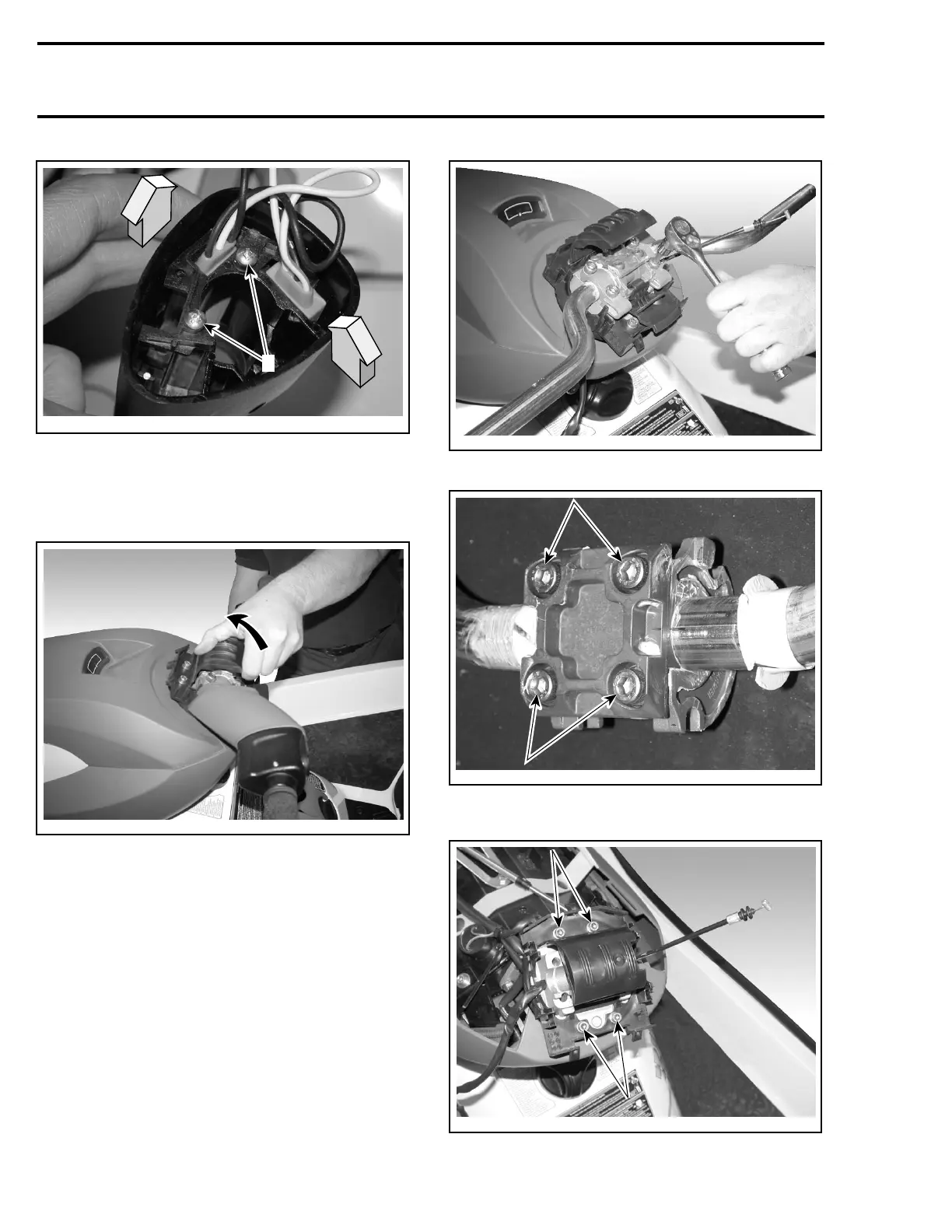

Section 10 STEERING SYSTEM

Subsection 01 (STEERING SYSTEM)

F22K0PA

1. Retaining screws

Handlebar and Adjuster

Lift cover of steering padding support no. 16.

F22K0QA

Remove screws no. 17, upper clamps no. 18 and

handlebar no. 1.

F22K0RA

Remove screws no. 19 of adjuster blocks no. 20.

F22K0SA

Remove spring no. 21, steering padding support

no. 16 then latch lever no. 22.

F22K0UA

290 smr2005-066
