Section 10 STEERING SYSTEM

Subsection 01 (STEERING SYSTEM)

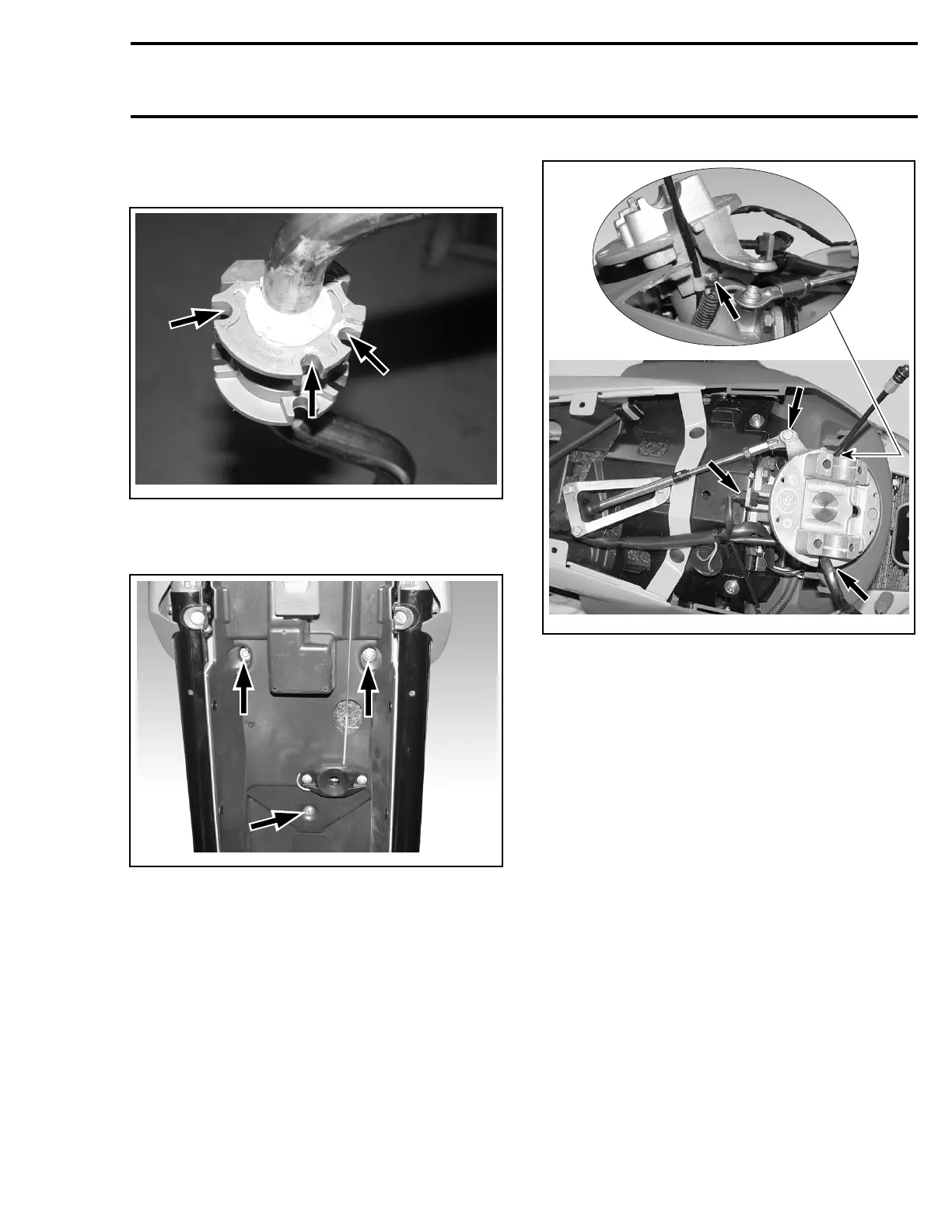

Inspect notches of adjuster blocks no. 20 and the

pin no. 23 forwearorotherdamage.

F22K0TA

Steering Stem and Support

Remove top cover no. 24.

F22K0YA

Detach steering cable, switch harness and throttle

cable from steering support.

Remove OTAS switch.

F22K0CA

Raise steering pole.

Unbend lock tab no. 25 then unscrew steering

stem screw no. 26.

smr2005-066 291
