SeaDoo 3D User Manual

Section 10 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

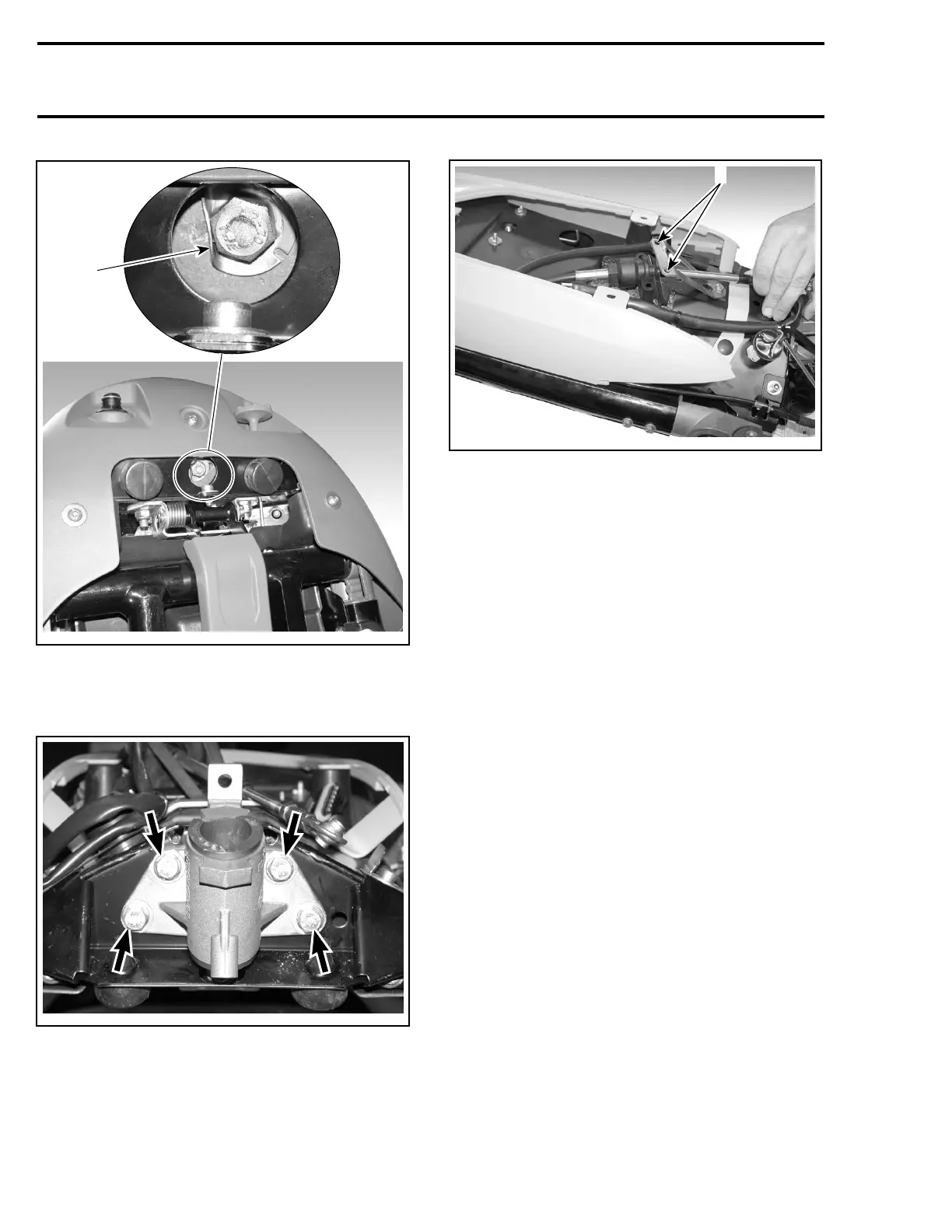

1
F22K0ZA
1. Unbend tab
Pull steering stem no. 27 out.
Remove steering support screws no. 28.
F22K12A
Steering Cable
Remove screws no. 29.
F22K13A
1
1. Screws removed
Remove retaining block no. 30.
Remove ball joint no. 31 and adjustment knob
no. 32 from cable.
Disconnect ball joint no. 33 from jet pump nozzle
then from cable.
Use the steering cable tool (P/N 295 000 145) and
remove nut no. 34, then remove half rings no. 35
and O-ring no. 36.
Raise steering pole.
Cut locking ties as required to allow puling out
steering cable.
Remove steering pole to be able to pull steering
cable out of bilge. See below.
Steering Pole
Raise and lock steering pole with its retainer.
Cut locking ties as required then pull throttle cable
outofsteeringpole.
Pull wiring harness out of pole.
Completely release return spring no. 2 preload.
292 smr2005-066
www.SeaDooManuals.net

SeaDoo 3D Specifications

General

Manufacturer	Sea-Doo
Model	3D
Engine	Rotax 947
Horsepower	130 hp
Category	Personal Watercraft
Engine Type	2-stroke
Width	46.5 inches
Seating Capacity	1 person
