Section 10 STEERING SYSTEM

Subsection 01 (STEERING SYSTEM)

F22L14A

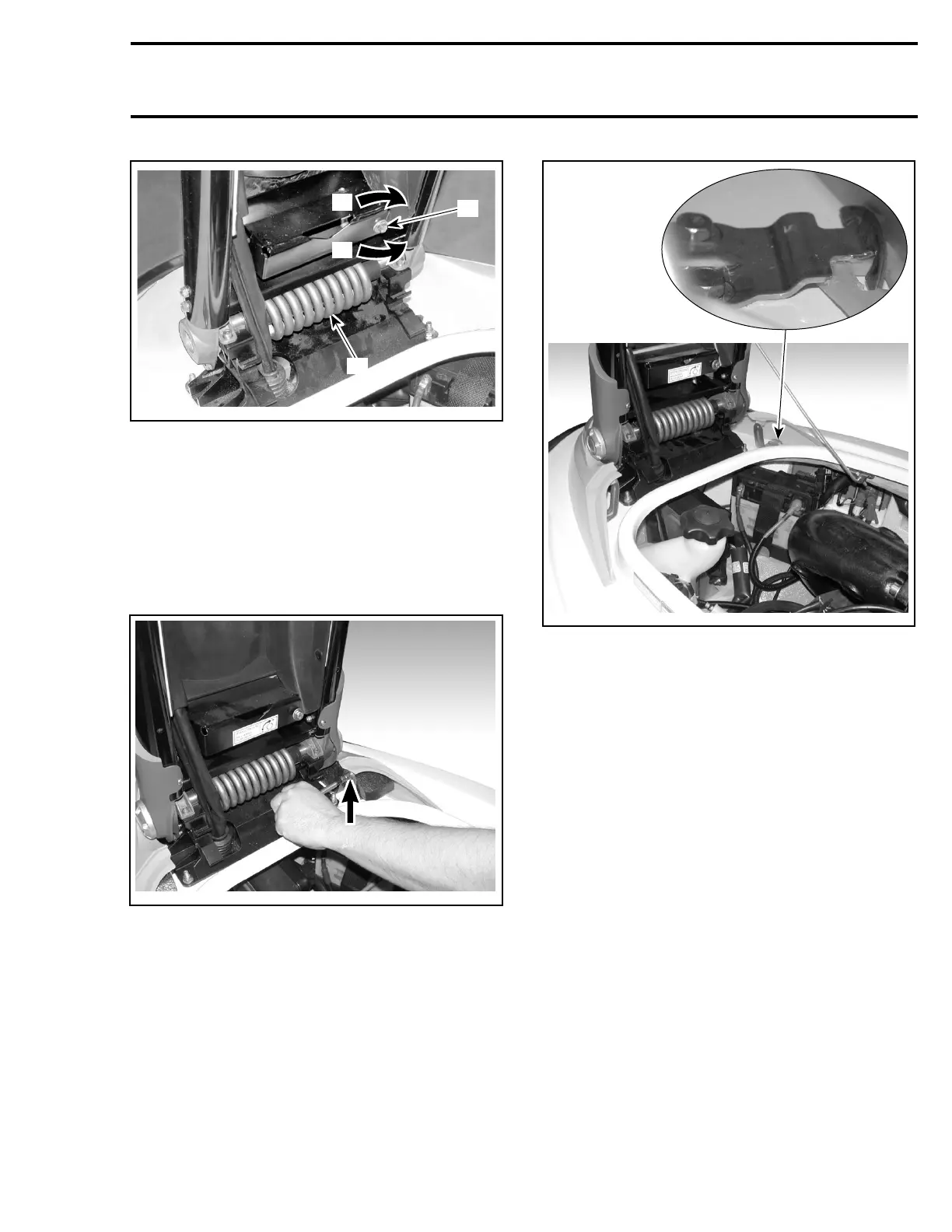

1. Return spring

2. Adjustment

3. To increase preload

4. To reduce preload

Lower steering pole.

Remove front cover in the following step order.

CAUTION: Work carefully when releasing lock-

ing tabs from cover to avoid damaging cover.

Remove side screws.

F22K14A

Release rear metal tabs.

F22K15A

INNER FOAM REMOVED FOR CLARITY PURPOSE

Using the provided openings, release side metal

tabs while pulling cover outward.

smr2005-066 293
