Section 10 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

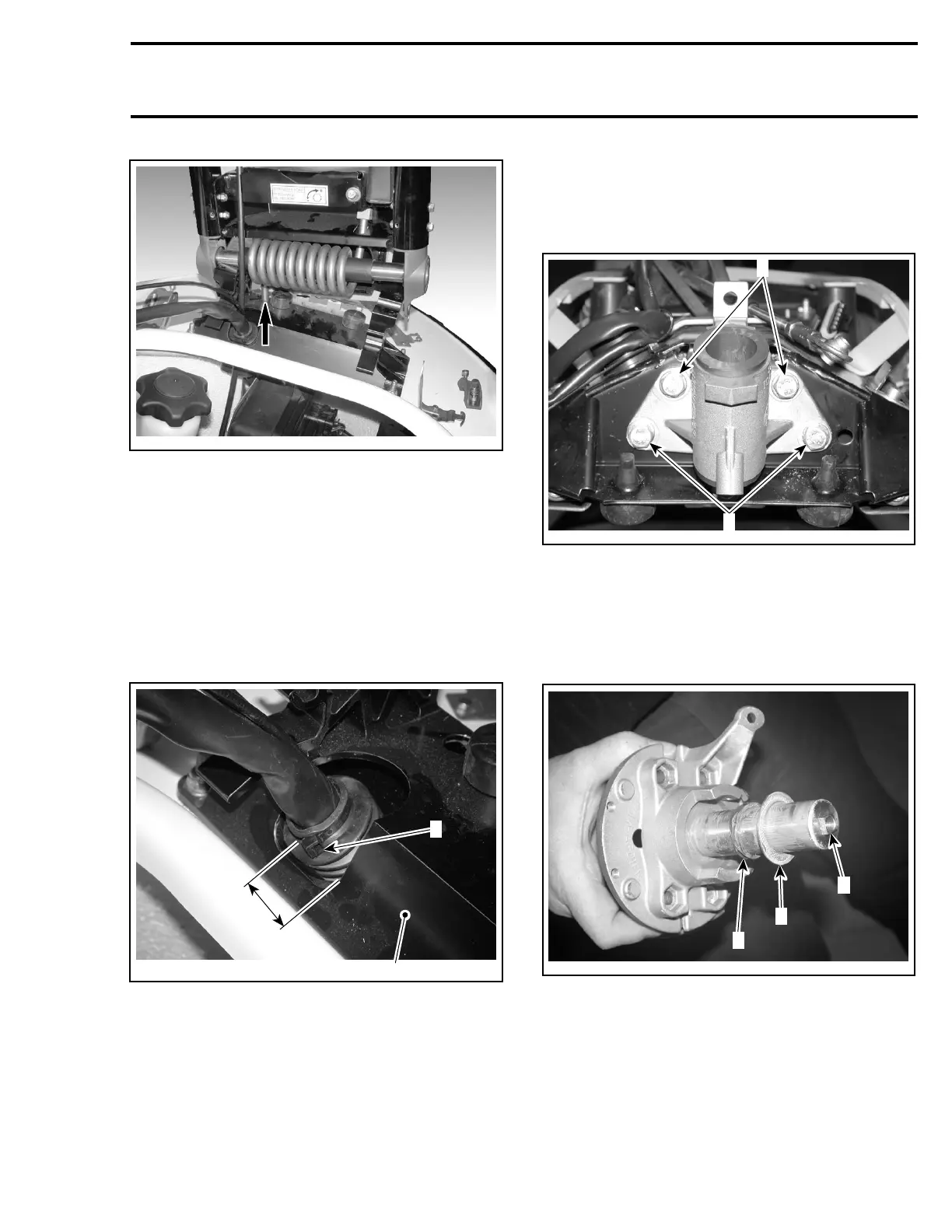

F22K1QA
Secure pole to bridge mount. Torque nuts no. 40
in a criss-cross sequence.
Ensure to center pivot tube no. 41 with clamps
no. 42.
Insert wiring harness and throttle cable in pole.
Ensure to stretch boot in the bridge mount no. 39
to the indicated length. Then install a locking tie
and strongly tighten.
NOTE: Ensure steering pole is centered (refer-
ence fuel tank cap).
1
F22K1RA
2
A
1. Bridge mount
2. Tightened locking tie
A. 45 mm (1.77 in)
NOTE: A missing or unfastened locking tie would
allow water entry in bilge.
Steering Stem and Support
Position steering support no. 4 onto steering pole.
Lubricate moving parts and bushings no. 3.
Position washers no. 43 against top nuts no. 44.
Install steering pole retainer no. 45 on bottom
screws.
F22K1SA
1
2
1. Washers against nuts here
2. Steering pole retainer against nuts here
Torque screws no. 28 of steering support in a
criss-cross sequence.
Ensure spring washer no. 47 and washer no. 46
are positioned as shown.
F22K1TA
1
2
3
1. Spring washers
2. Washer
3. Notice the square end
Install steering stem no. 27 into steering support
no. 4 and position its lever on the RH side.
Position rounded edge of washer no. 48 opposite
of screw head and position washer square hole
into square end of stem.
smr2005-066 297
