Section 10 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

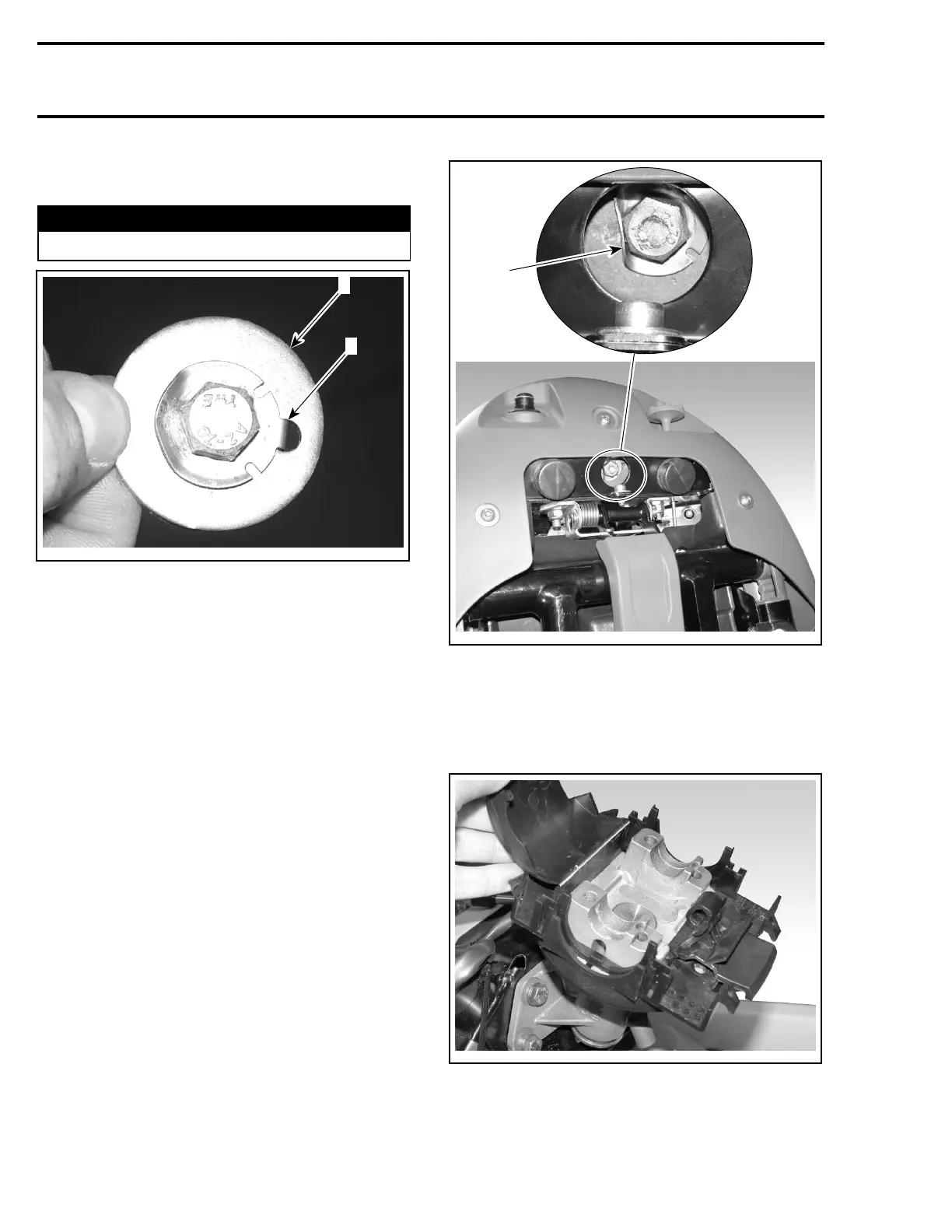

Using a new tab lock no. 25 position its small tab
into hole of washer no. 48.
WARNING
Ensure to use a new tab lock.
F22K1UA
1
2
1. Rounded edge on backside
2. Small tab into hole of washer
Torque screw no. 26 then bend tab lock edge
against a flat side of screw head.
1
F22K0ZA
1. Tab lock edge against flat side of screw head
Properly route wiring harness and steering cable
in steering support notches.
First install latch lever no. 22 then steering
padding support no. 16.
F22K1VA
298 smr2005-066
