Section 10 STEERING SYSTEM

Subsection 01 (STEERING SYSTEM)

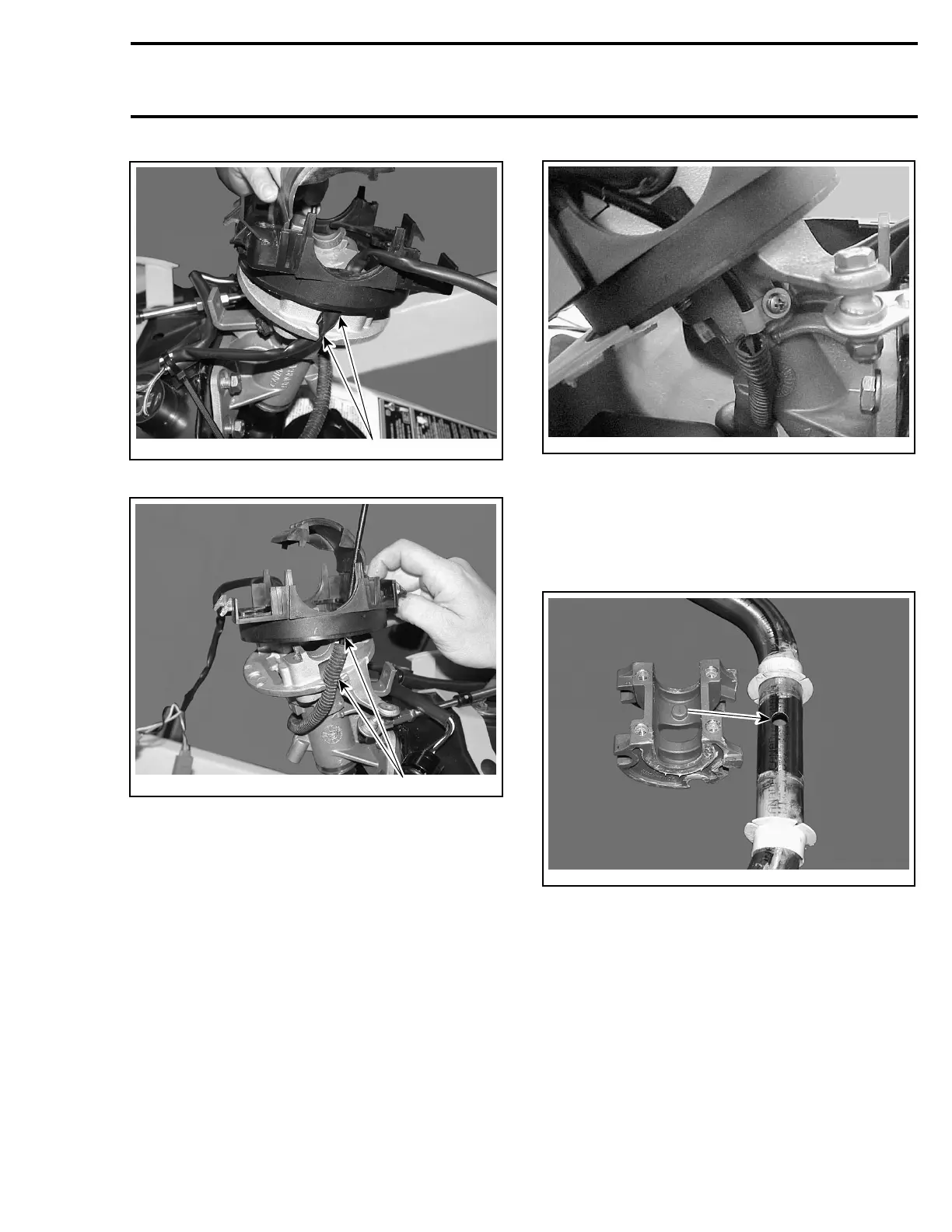

F22K22A

1. Wiring harness routing

F22K23A

1. Throttle cable routing

Secure throttle cable to steering support with

clamp no. 49.

F22K25A

Handlebar and Adjuster

When installing blocks no. 20 on handlebar, en-

sure to position block pin into handlebar hole.

NOTE: Block must be centered on handlebar. If

not, it is in reverse position.

F22K1WA

Torque screws no. 19 as per the following se-

quence.

smr2005-066 299
