Section 10 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
F22K0SB
12
3
4

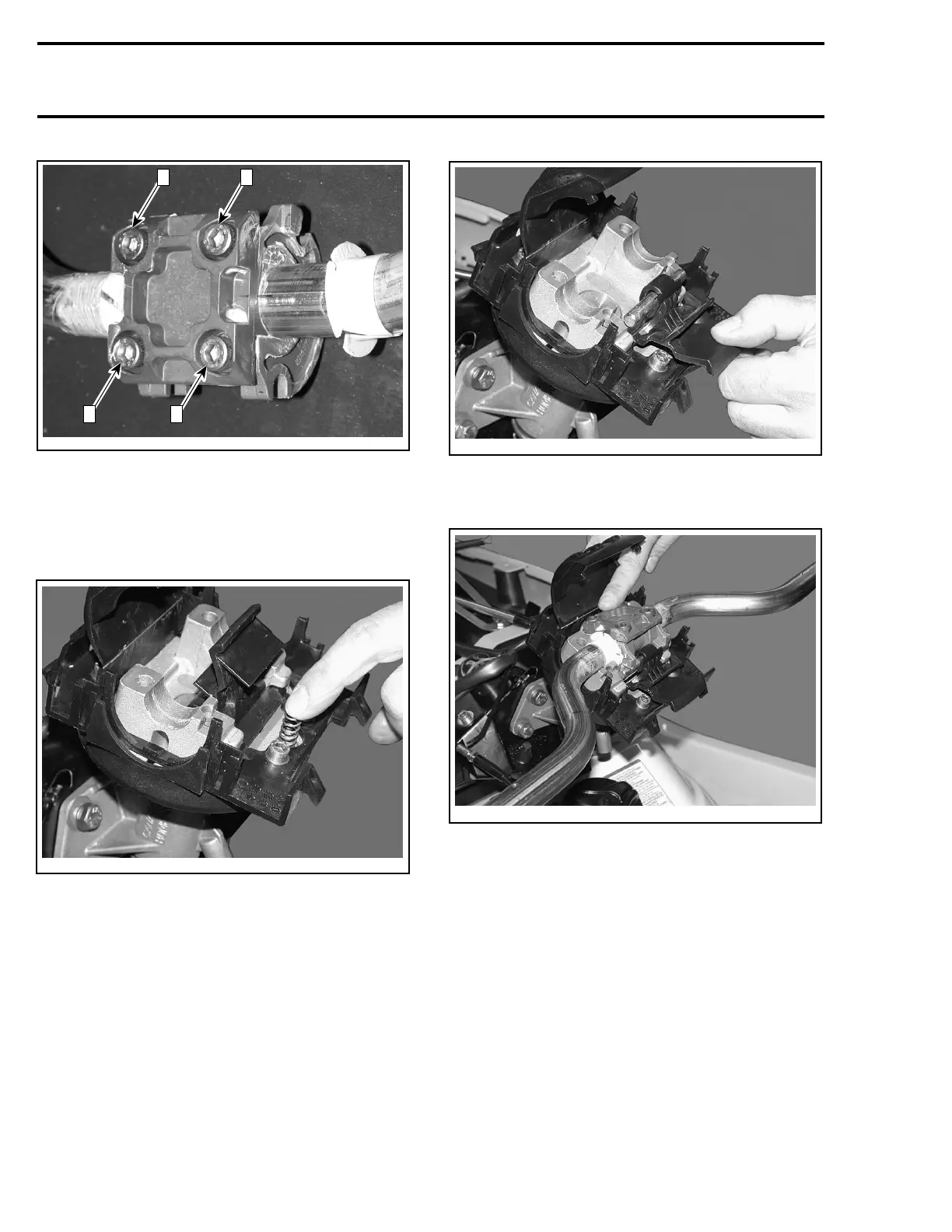

TORQUE SEQUENCE
Lubricate friction areas and bushings no. 50 with
synthetic grease (P/N 293 550 010) then slide
bushings against blocks no. 20.
Position compress spring no. 21.
F22K1YA
Install pin no. 23. Hold latch lever depressed.
F22K1ZA
Install handlebar on steering support then upper
clamps no. 18. Position pin no. 23 into slots of
blocks no. 20.
F22K20A
Using synthetic grease (P/N 293 550 010)lubricate
pin no. 23 and the notches on blocks no. 20.
Position handlebar vertically then torque screws
no. 17 in a criss-cross sequence.
Snap cover of steering padding support no. 16 on
screw heads.
