Section 10 STEERING SYSTEM

Subsection 02 (OFF-POWER ASSISTED STEERING (O.P.A.S.))

Torque Phillips screws no. 19 to 2.2 N•m

(19 lbf•in).

Cross Support Plate

For LH Side Cross Support Plate

Remove inlet hose, exhaust pipe and muffler (re-

fer to EXHAUST SYSTEM).

For RH Side Cross Support Plate

Remove resonator (refer to EXHAUST SYSTEM).

Removal

Remove side vane no. 1 and cylinder support no. 6

as mentioned above.

Unscrew the screw no. 22 retaining cross support

plate no. 21 to hull.

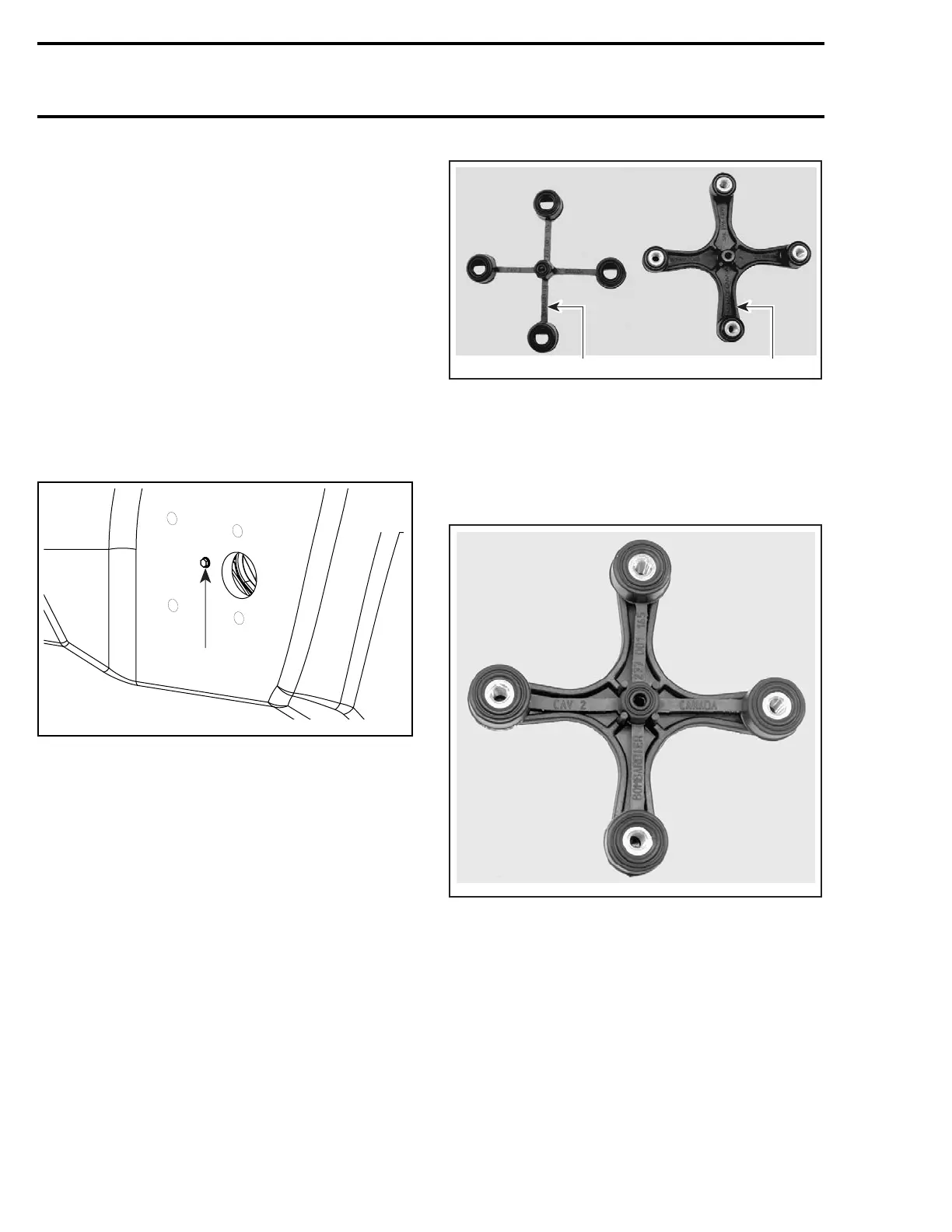

smr2005-067-003_a

1. Remove screw

Remove cross support plate from the inside of

bilge.

Inspection

Check for cracks and deterioration of screw

threads on cross support plate, replace if neces-

sary.

Verify the condition of gasket no. 23 before instal-

lation, change if necessary.

F18K1BA

1. Gasket

2. Support plate

Installation

Assembly is the reverse process of disassembly,

make sure of the following when doing assembly:

Install the gasket on the cross support plate.

F18K1CA

GASKET INSTALLED ON SUPPORT PLATE

Inside the bilge, install the cross support plate.

Place the gasket against the hull then align the

holes.

Apply silicone sealant (clear) (P/N 293 800 086)

in hole of screw no. 22 then torque screw to

1.2 N•m(10lbf•in).

310 smr2005-067
