SeaDoo 3D User Manual

Section 13 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)
smr2005-056-004_a

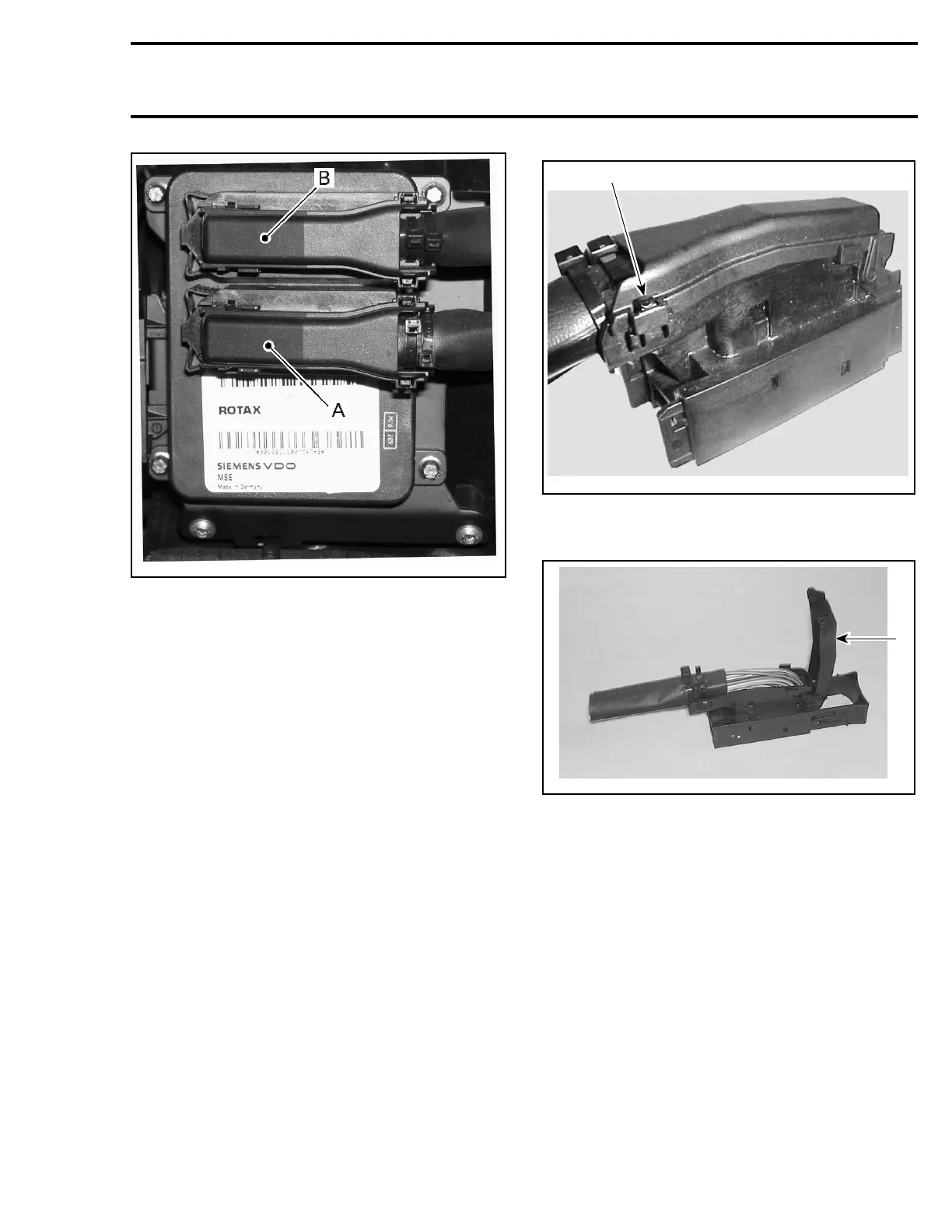

ECM CONNECTORS IDENTIFICATION
CAUTION: Do not disconnect the ECM connec-
tors needlessly. They are not designed to be
disconnected/reconnected frequently.
CAUTION: For adequate probing techniques
and tool, refer to ENGINE MANAGEMENT sec-
tion.
Terminal Removal
Unlock the connector cover by pushing in the tabs
on top of the connector with a flat screwdriver to
be able to flip the top cover up.
1
F18Z0RA
1. Push in tab
Lift the cover by pushing it forward.
1
F18Z06A
1. Cover
Cut both tie raps that secure the harness to the
connector.
smr2005-073 367
www.SeaDooManuals.net

SeaDoo 3D Specifications

General

Manufacturer	Sea-Doo
Model	3D
Engine	Rotax 947
Horsepower	130 hp
Category	Personal Watercraft
Engine Type	2-stroke
Width	46.5 inches
Seating Capacity	1 person
