Motor parameter group 05
PARAMETER DESCRIPTION 141
Confirm the wiring
Please refer to 3.7
Terminal wirearrangement)
Set motor parameter
05-01(P.302)~05-
06(P.307)
Press the forward/reverse rotation key
and start to measure,the operation
Panel will display TUN.
Measuring
succeed
If succeed, the
operation panel
will display
TEnd.
Manually input parameters 05-08
P.309~05-11(P.312), and then
reset the inverter.
If failed,the
operationpaneldisplay
FAL.
Restore display
after 3s
The motor parameter
auto-tuning is finished
Finish
05-00(P.301)
Manually adjust
parameter values
Y
0
12
5
N
Y
N
When set 00-21(P.300) to 5 or 6, please set the PM motor parameters correctly and do automatic PM motor
parameters measurement function, to ensure the control stability and dynamic response.
When set 00-21(P.300) to 5, if encoder or motor UVW wiring order is changed, please set 05-00(P.301) to 9 to
execute PM motor Phase Z measurement function.

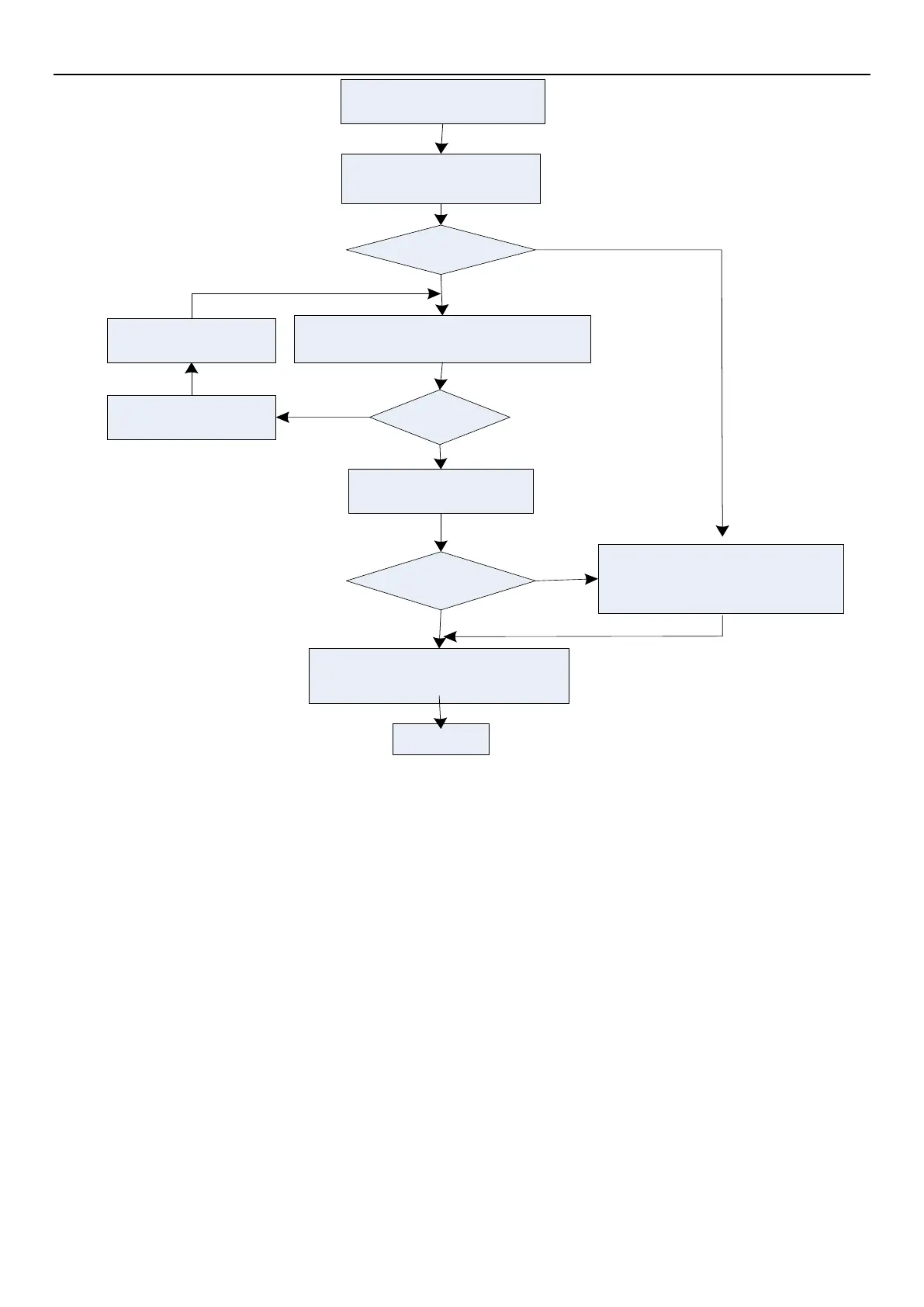

Procedures for PM motor parameter measurement includes the following steps:
