5 Maintenance
Preparing for Maintenance Procedures
Many of the procedures in this section require you to lift the door on the
measurement module.
1. Grasp both sides of the front cover and pull it toward you.
2. Lift the front cover.
3. Push up the latches on the measurement module door.
4. Lift the door.

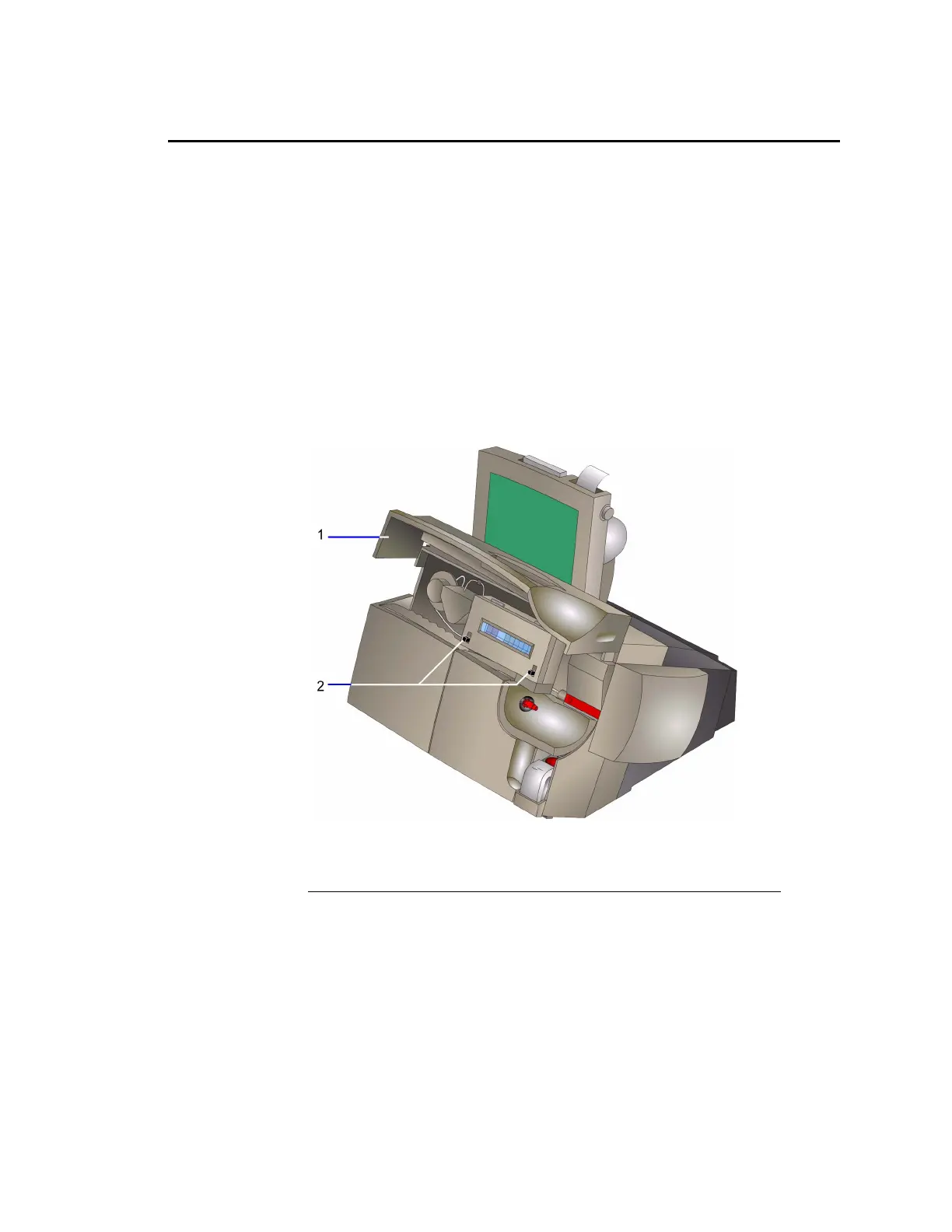

Figure 5-1 Rapidlab 1200 System–Front Cover Open
1 Front cover
2 Latches–measurement module
