5-26 Rapidlab 1200 Operator’s Guide: Maintenance
02087462 Rev. V
5. While holding the lower side of the tubing, turn the roller cage clockwise and gently
pull the tubing away from the platen and the roller cage.

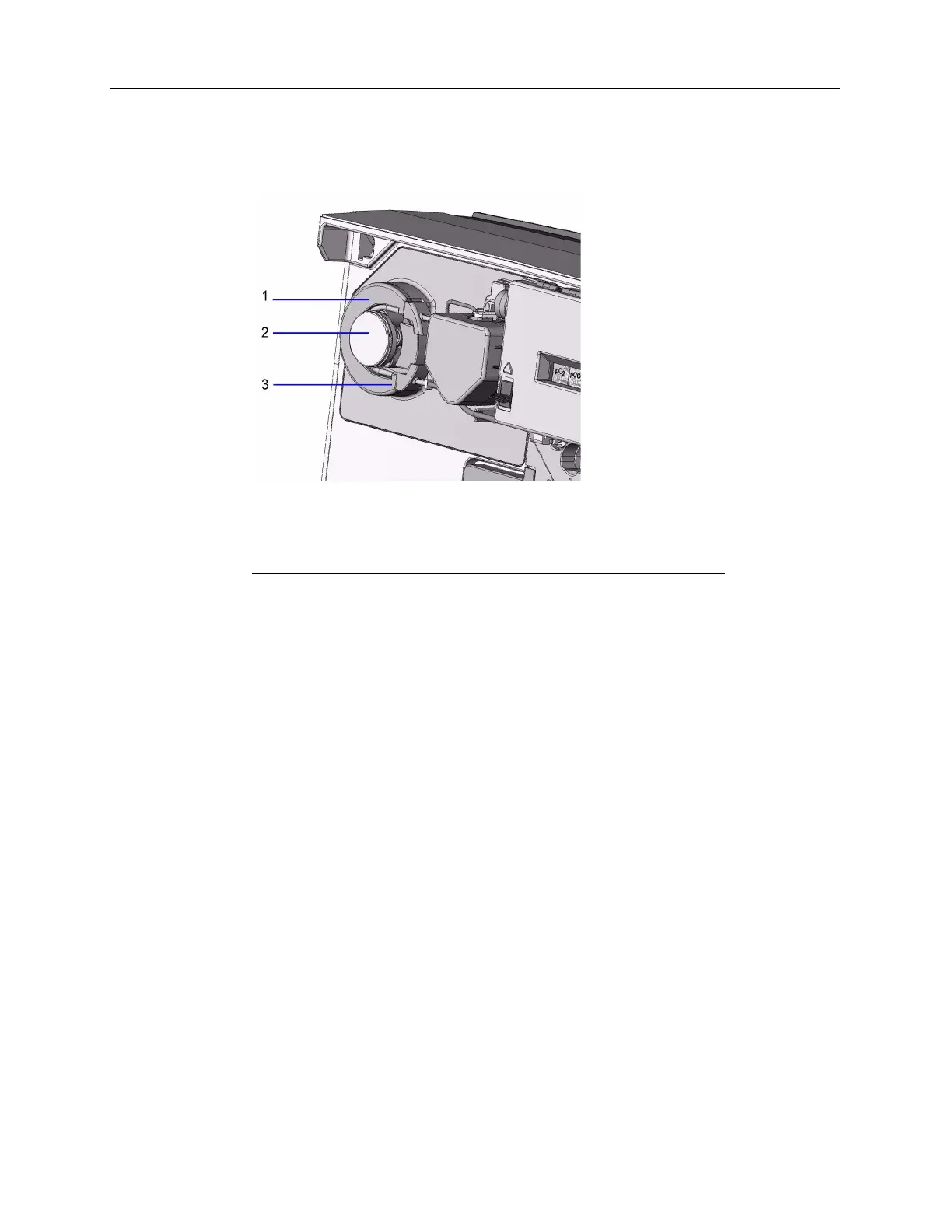

Figure 5-13 CO-ox Module
6. Gently pull the roller cage straight off its shaft.
Cleaning the Roller Cage
1. Clean the rollers and the roller cage shaft using lint-free tissues moistened with the
bleach solution.
2. Clean the interior surface of the roller cage using a lint-free swab moistened with the
bleach solution.
3. Rinse the rollers, the cage, and the shaft with water.
4. Dry the roller cage thoroughly and ensure that the rollers turn freely.
Reinstalling the Roller Cage
1. Replace the roller cage onto the shaft.
2. Press the roller cage down and turn it clockwise until the cage snaps into place.
1 Platen
2 Roller cage
3 Lower tubing cuff
