Replacing the Measurement Module Tubing
You need a tubing kit for this task.
BIOHAZARD: Wear personal protective equipment. Use universal precautions.
Refer to Appendix A, Protecting Yourself from Biohazards for
recommended
precautions when working with biohazardous materials.
1. Select Status > Diagnostics > Cartridges.
2. Select
Eject R Cartridge.
3. Lift the door on the measurement module.
Refer to Preparing for Maintenance Procedures‚ page 5-1.
4. Replace the pinch valve tubing.
Perform steps 4 and 5 of Replacing the Pinch Valve Tubing‚ page 5-10.
5. Replace the waste tubing between the pressure sensor bubbler and the reagent
manifold:
a. Disconnect the waste tubing from the pressure sensor bubbler and the reagent
manifold.

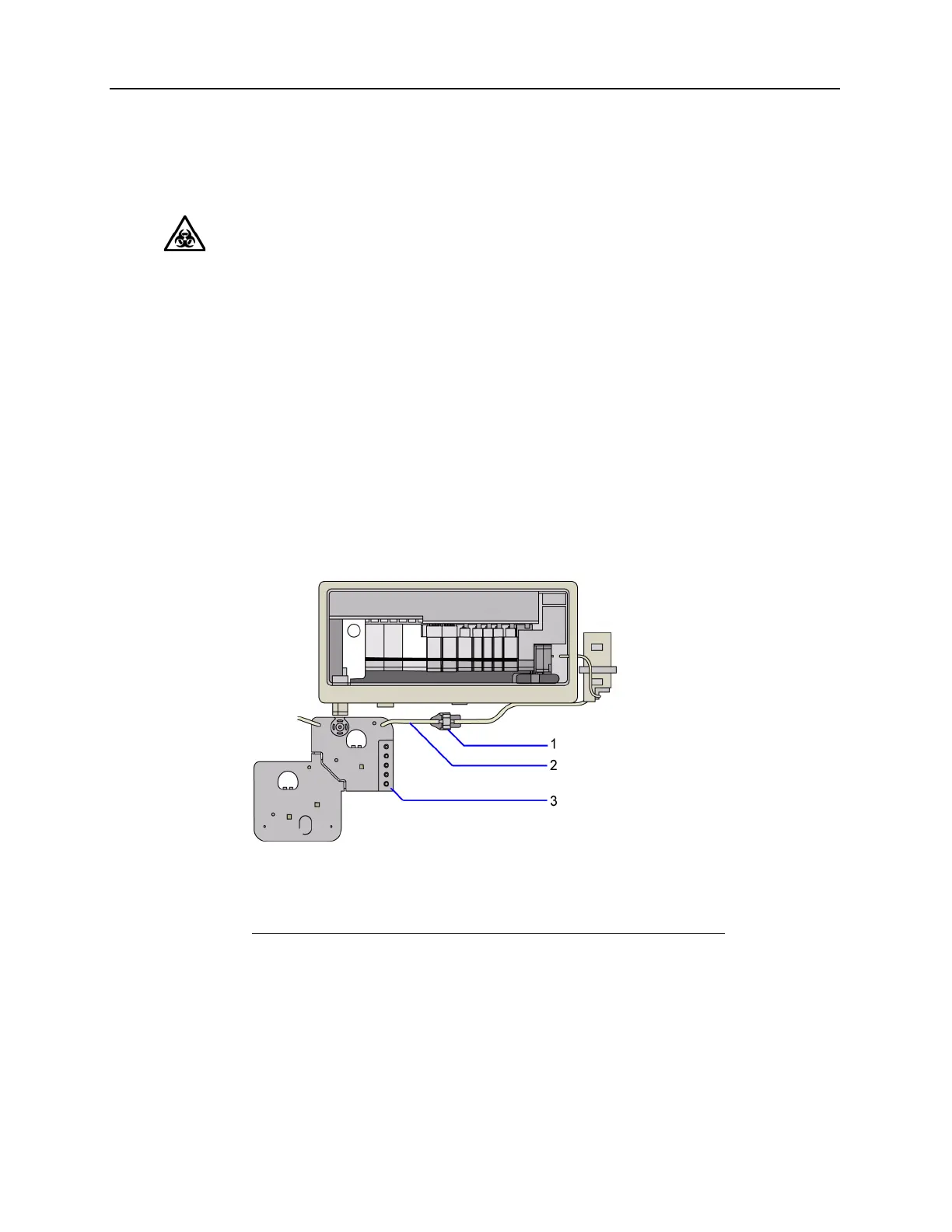

Figure 5-3 Measurement Module–Rapidlab 1260 and 1265 systems
1 Pressure sensor bubbler
2 Waste tubing
3 Reagent manifold
