7-4
Chapter 7 EPS with IDNet 2
EPS Configuration (continued)
Earth Connect
Jumper
The EPS Earth Fault Enable/Disable jumper allows you to enable or disable Earth Fault
detection.
• To enable the function: Place the jumper block on pins 1 and 2
• To disable the function: Place the jumper block on pins 2 and 3

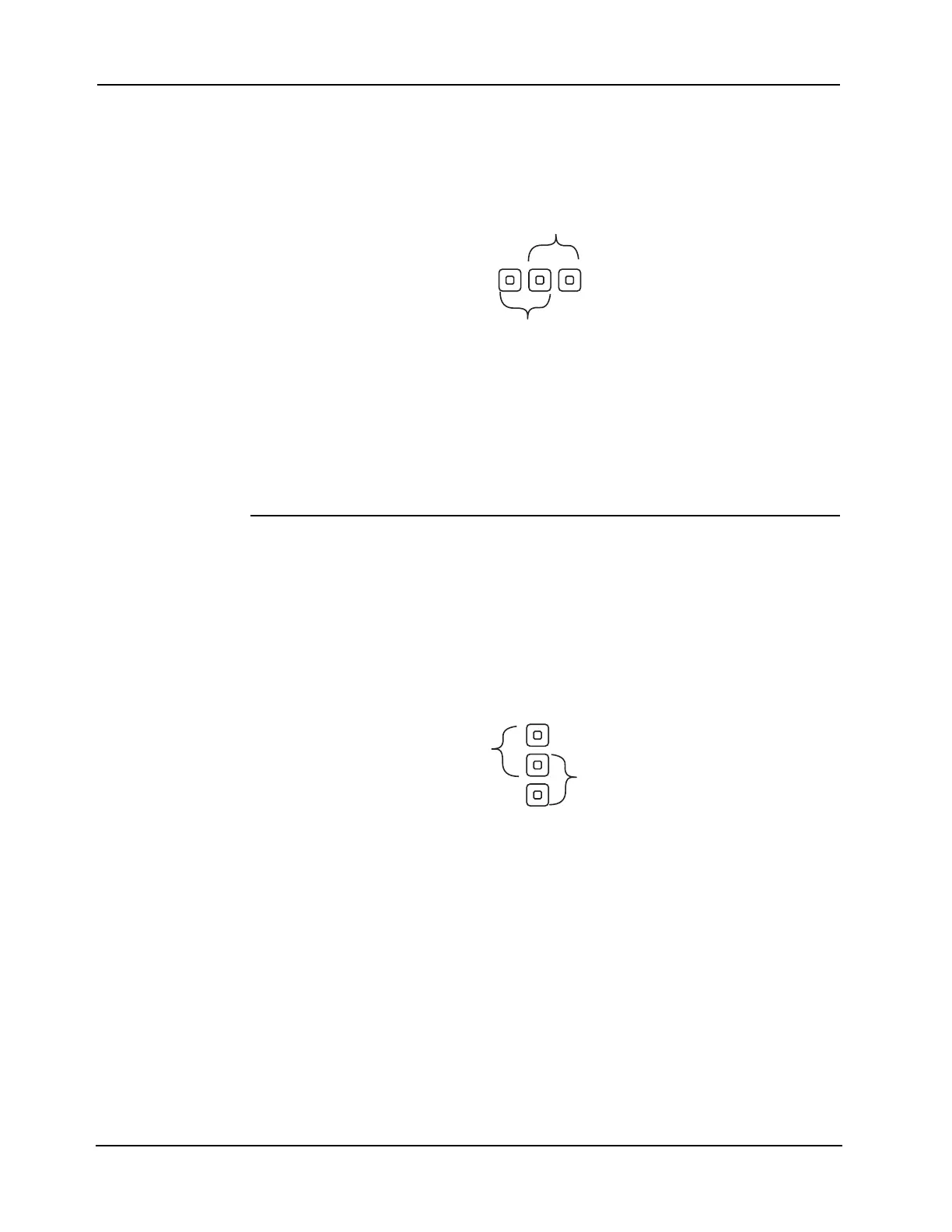

Figure 7-3. Earth Connect Jumper Positions
Earth Fault detection is set to active on one EPS per battery location. A battery location is any
cabinet connected to the master 4100 communications channel without a TIC. A transponder
cabinet is another battery location. Only ONE earth fault circuit should be active on all power
supplies (EPS, TPS, SPS, RPS) within a battery location. Disable earth fault detection on all
other power supplies at a battery location. Any system that includes one or more EPS MUST
have earth detection from an EPS.
Battery
Disconnect
Jumper
Jumper P16 selects Low Battery operation.
• Jumper in Top position (pins 2-3) will cause panel shutdown when batteries are depleted.
• Jumper in Bottom position (pins 1-2) will allow panel to continue operating.
For S527 compliance, jumper must be installed to top position of P16.
Note: When jumper is set to pins 2-3, EPS will not power-up from battery.
Figure 7-4. Battery Disconnect Jumper Positions
3
21
Function Enabled
Function Disabled
P18
3
2
1
P16
Shut Down
When
Depleted
Continue
Operation
When Depleted
