Simplex 4100ES Installation Guide

C-3
Appendix C
Introduction to MINIPLEX Systems (continued)
Overview Figure C-1 is an outline of a MINIPLEX system.

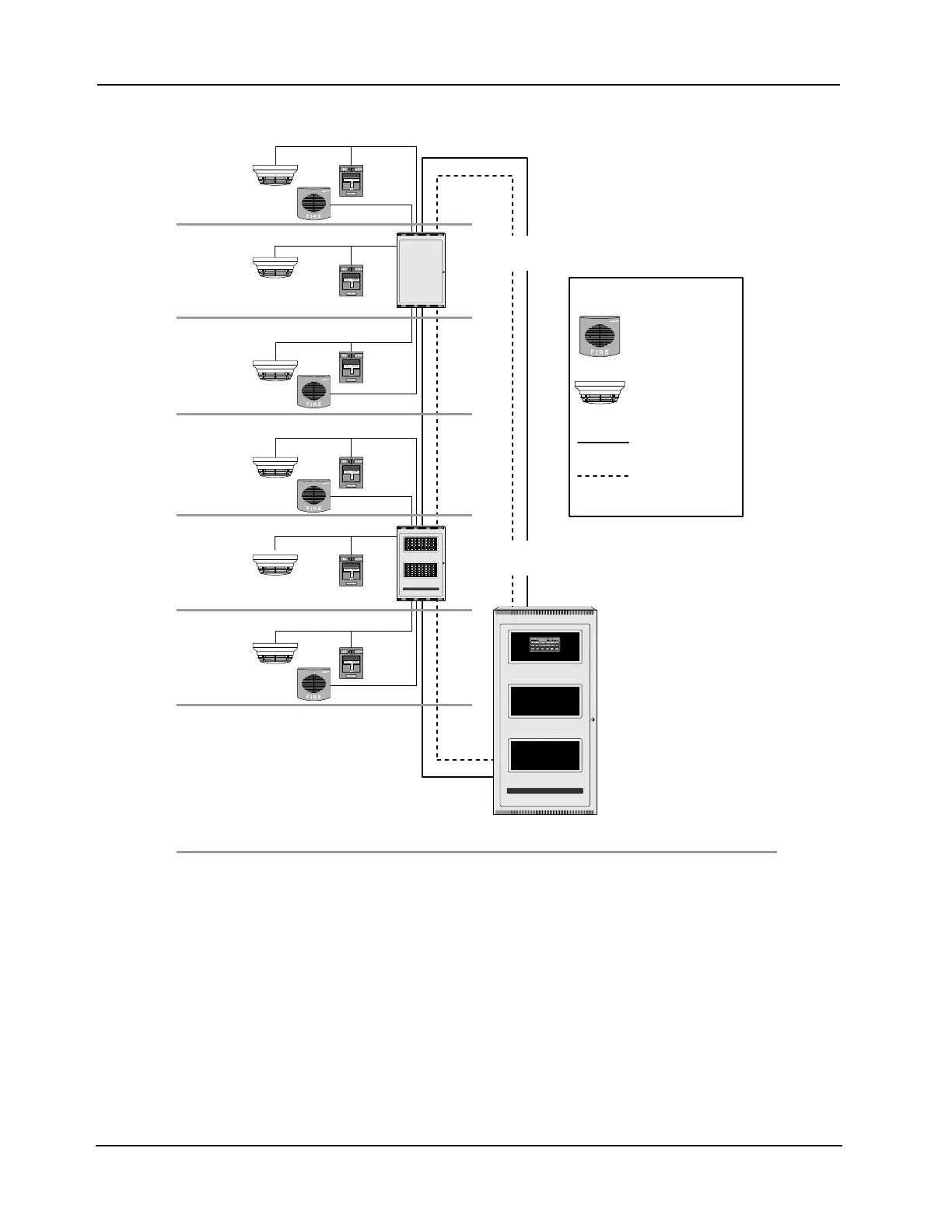

Figure C-1. MINIPLEX System Design
Seventh floor
Sixth floor
Fifth floor
Fourth floor
Third floor
Second floor
First floor
Speaker NAC
TrueAlarm sensors
and MAPNET II
addressable circuits
RUI communications
wiring, twisted,
shielded pair
Audio riser wiring,
twisted pair
Legend:
MINIPLEX transponder
with solid door
MINIPLEX transponder with
LED/switch modules on door panel
FACP
ACKNOWLEDGE
Seventh floor
Sixth floor
Fifth floor
Fourth floor
Third floor
Second floor
First floor
Speaker NAC
TrueAlarm sensors
and MAPNET II
addressable circuits
RUI communications
wiring, twisted pair
Audio riser wiring,
twisted pair
Legend:
MINIPLEX transponder
with solid door
MINIPLEX transponder with
LED/switch modules on door panel
FACP
ACKNOWLEDGE

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
