Simplex 4100ES Installation Guide

2-3
Chapter 2 Installing FACP Components
SPS CPU Bay Overview
RUI+ Master
Motherboard
The 4100 Master motherboard has two slots, one is dedicated for the system CPU and The
other slot is typically used for 4120 Network or RS232 cards. The first RUI channel in the
system is the master motherboard. The RUI+ feature on this card provides electrically-isolated
power for the RUI channel, giving it greater immunity to crosstalk from other channels.
The card is installed on the PDI, occupying the space next to the power supply.

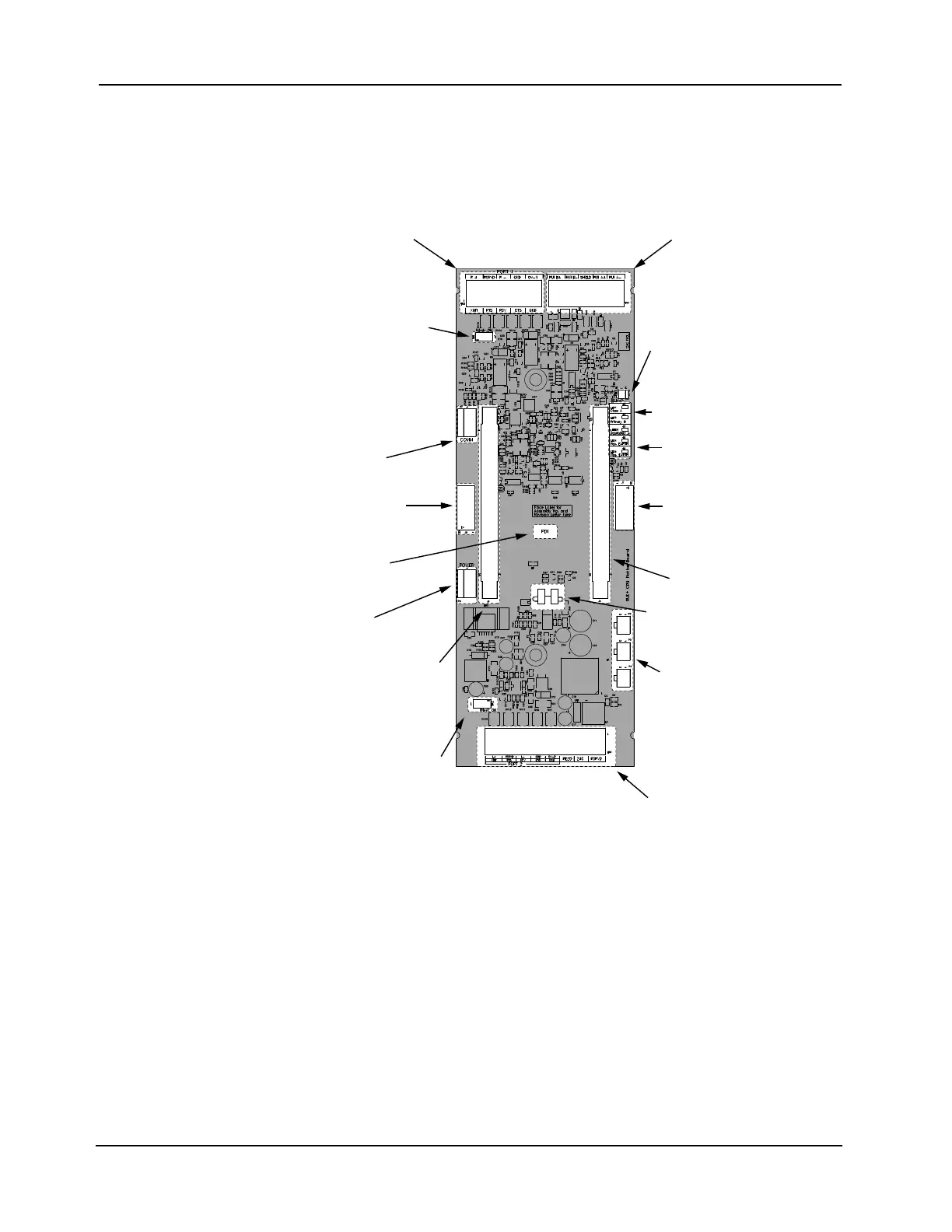

Figure 2-2. RUI+ CPU Master Motherboard (566-938)
Note: If the RUI+ Master Motherboard is used to connect to a 4602-6001 (SCU) or 4602-7001 (RCU) move
the P5 and P6 jumpers to the RUI NON ISO position.
RS-232/Network
Switch
Card Port 2
Network Wired
Media/RS-232
Terminal Block
Power/COMMS to
Adjacent Bay
CPU Slot
10POS female
RUI Earth
Fault LEDs
RUI Trouble LEDs
RUI Terminal
Block
Network Wired
Media/RS-232
Terminal Block
COMM
10POS female
PDI Connector
(on back)
Power
Network/RS232 Slot
RS-232/Network
Switch Card Port 1
Earth Fault
connection to
power supply
(EPS only)
RUI Isolation
Jumpers - See Note
J7
J5
P6 P5
RUI
NON ISO
RUI+
ISO

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
