Simplex 4100ES Installation Guide

8-4
Chapter 8 EPS and IDNet 2 Wiring
EPS Class B IDNAC Wiring (continued)
IDNAC Speaker
Wiring
Application
Guidelines
CLASS B Audio Wiring:
Connect a maximum of 127 IDNAC speakers to Class B wired audio
NAC. A Class B wired audio NAC connected to TrueAlert ES speakers can employ T-Tap and
Wire Branch wiring topologies.
Do not connect an End-Of-Line Resistor to a class B wired audio NAC connected to
TrueAlert ES speakers.
CLASS A Audio Wiring:
Connect a maximum of 70 TrueAlert ES speakers to a Class A audio
NAC. Speakers must be wired in a standard Class A loop fashion.
Except as noted above, audio NAC wiring connected to TrueAlert ES speakers must follow the
requirements of the connected 4100ES amplifier.

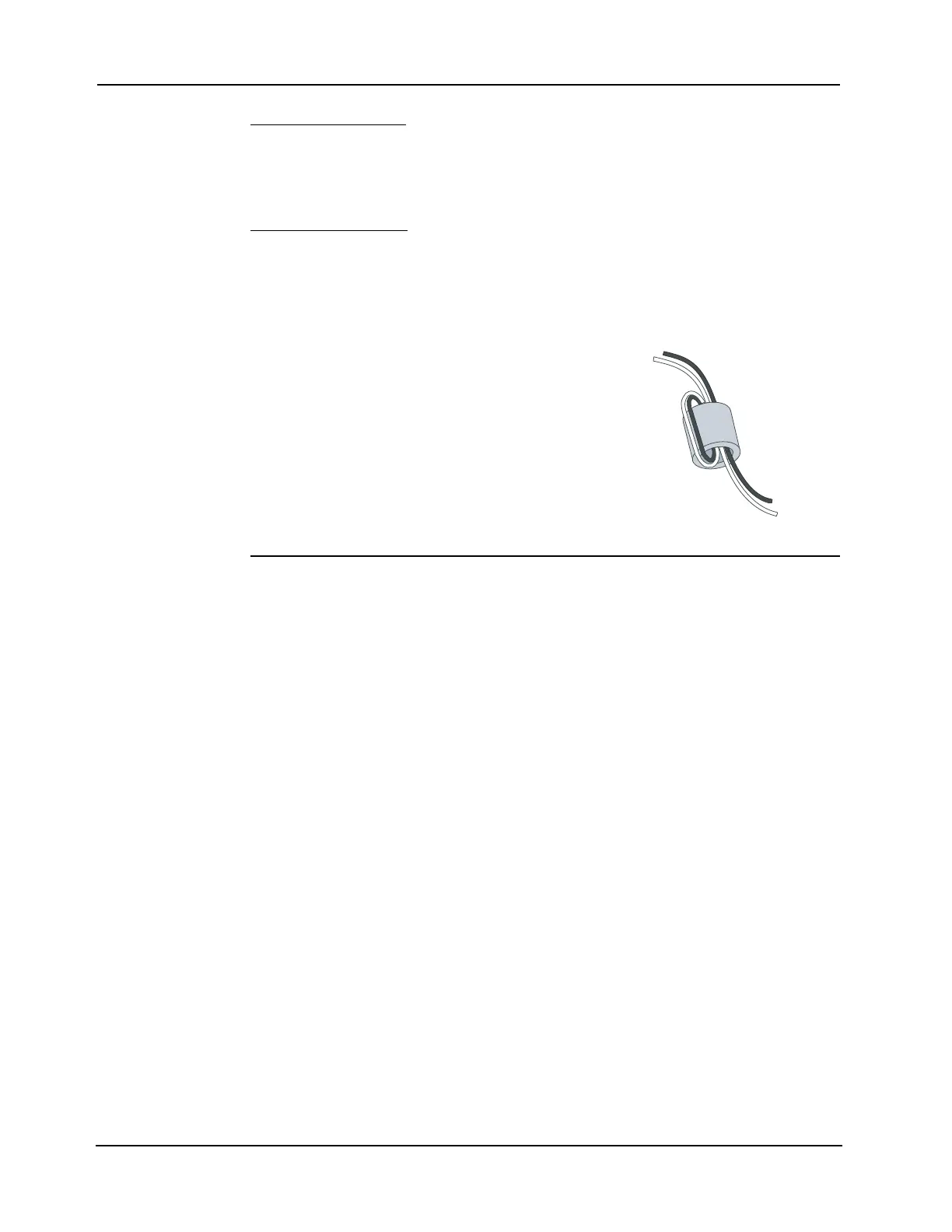

Ferrite Beads Ferrite beads must be used for Class B wiring.
1. Install the ferrite bead close to the EPS field wiring
terminals for lowest radiated emissions (before the wires
leave the box).
2. Loop the wires through the bead as shown.
Figure 8-2. Ferrite Bead Installation

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
