Appendix C

MINIPLEX System Components (continued)

The Remote

Interface Card

(RIC)

Remote interface cards (RICs) in the transponder cabinets allow for data, power, and audio

interconnections between the 4100 host panel and remote locations. They support RUI

connections in Style 4 and Style 7 wiring configurations.

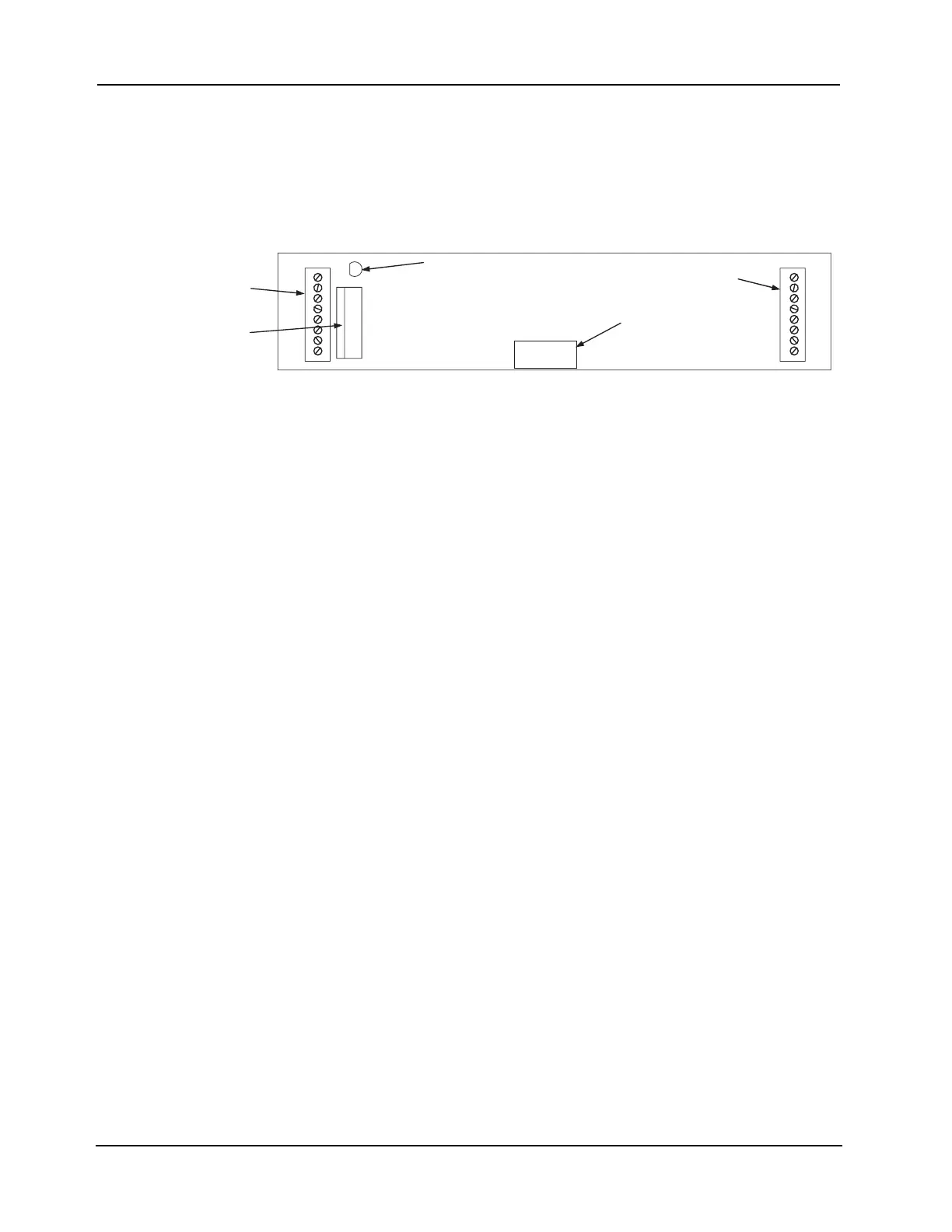

Figure C-3 illustrates the RIC circuit board.

Figure C-3. The RIC II Card

TB2

LED1

TBL

+COMM

PRIM

+COMM

PRIM

-COMM

+COMM

24C

PIEZO

CTRL

LED

CTRL

PTT+

PTT-

SHLD

GRN

CIM

WHT

COMMS TROUBLE LED

(LED 1):

Lights if there is a line short

on either primary or

secondary lines, or if both

comms inputs are absent.

POWER/COMM

TERMINAL BLOCK (TB1)

HEADER CONNECTOR

(J1)

SEC

+24 V

PIEZO/MICROPHONE

TERMINAL BLOCK (TB2)

REMOTE MICROPHONE

CONNECTOR (P1)
