6-3
Chapter 6 4100ES SPS Field Wiring
General Field Wiring Guidelines (continued)
Power-Limited
Guidelines
Make sure these guidelines are accounted for before wiring for power-limited systems:
Non-power limited field wiring (AC power, batteries, City connection) must be installed and routed in
the shaded areas shown in Table 6-1.
Power-limited field wiring must be installed and routed in the non-shaded areas shown in Table 6-1,
with the exception of City wiring.
Excess slack should be kept to a minimum inside the back box enclosure. The wiring should be neatly
dressed and bundled together using wire ties. Anchor power-limited wiring to tie points, as shown in
Figure 6-1.

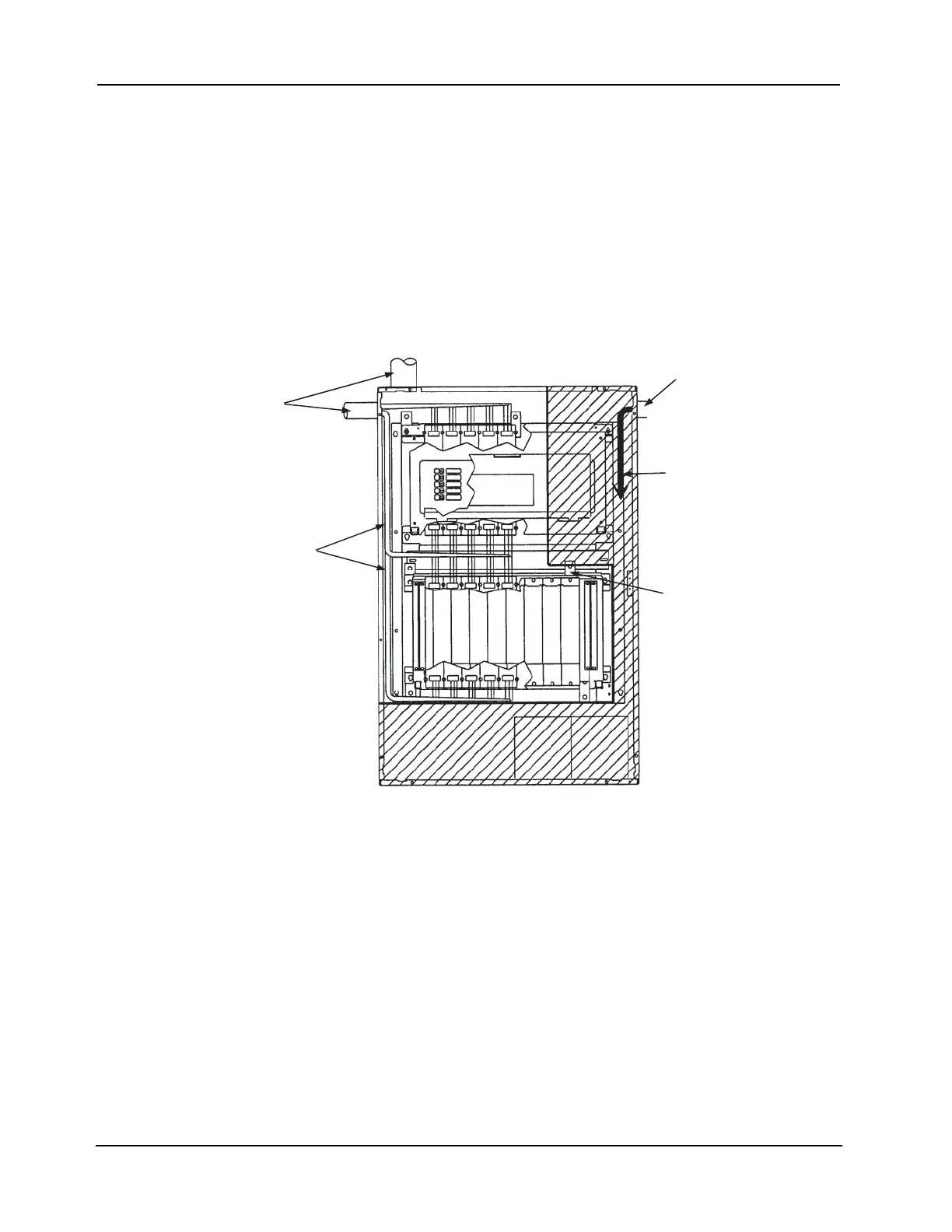

Figure 6-1. Power-Limited Wiring
Tie the wiring located between bays to the internal wiring troughs, if applicable.
When powering remote units or switching power through relay contacts, power for these circuits must
be provided by a power-limited power supply listed for fire-protective signaling use. An EOL relay must
be used to supervise the auxiliary power circuit.
Continued on next page
CONDUIT ENTRANCE
FOR POWER-LIMITED
WIRING
POWER-LIMITED
WIRING
CONDUIT ENTRANCE
FOR NON-POWER
LIMITED WIRING
TIE POINT
(LOCATION MAY VARY)
NON-POWER LIMITED
WIRING
