Simplex 4100ES Installation Guide

C-12
Appendix C
MINIPLEX Wiring (continued)

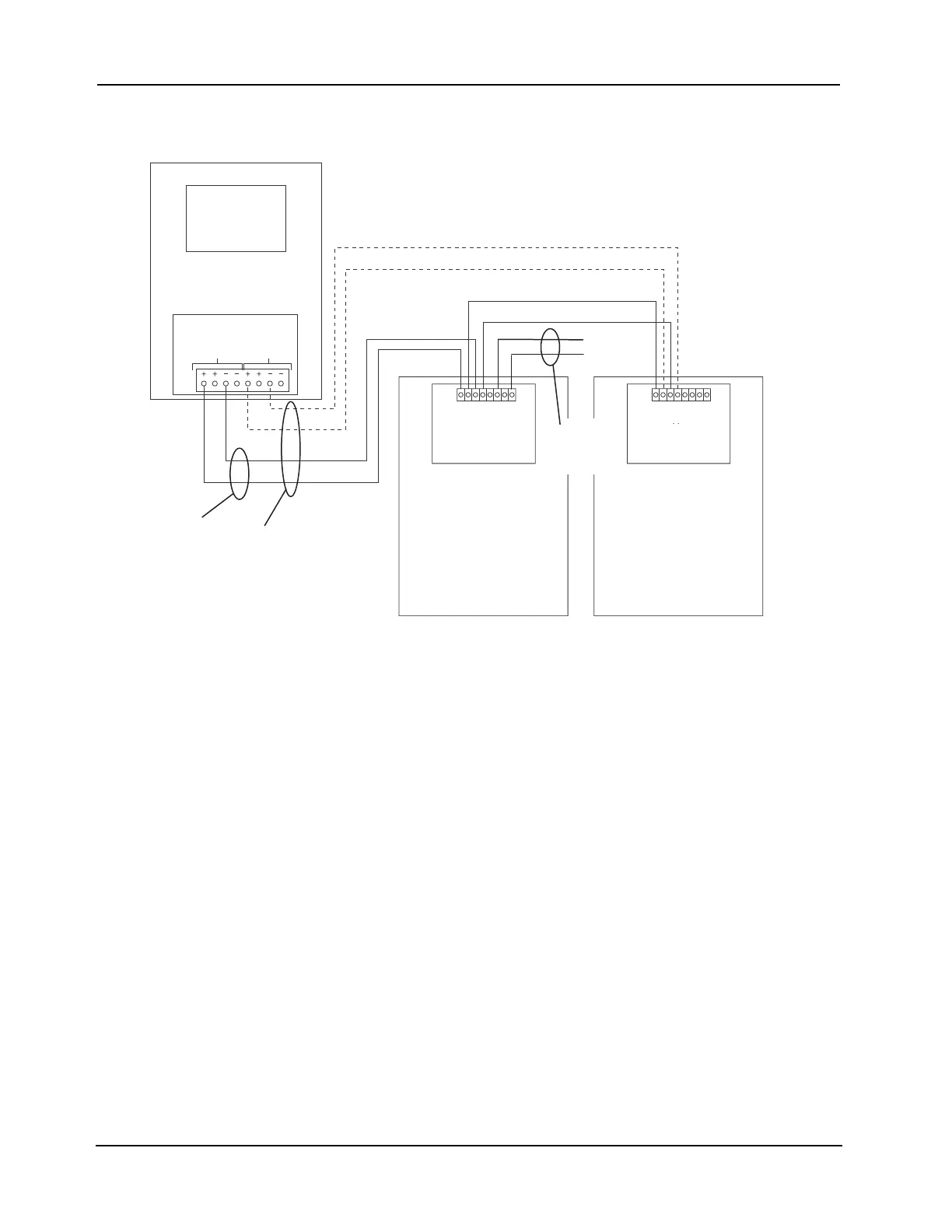

Wiring Illustration Figure C-7 illustrates Class A and Class B wiring.
Figure C-7. MINIPLEX Wiring
Notes:
1. Power wiring is not shown. Connect the RIC II card to the UPS or expansion power supply in the tran-
sponder cabinet.
2. If a UPS is not provided in the transponder cabinet, then 24 VDC must be provided from the host panel.
3. Maintain correct polarity on terminal connections. Do not loop wires under terminals.
4. All wiring is supervised and power limited.
4100 MINIPLEX MASTER
RIC 11
565-233
MINIPLEX
TRANSPONDER
562-856 W/565-217
COMMS "A"
81
COMMS "B"
RUI
T
B
1
T
B
1
RIC 11
565-233
MINIPLEX
TRANSPONDER
81
T
B
1
CLASS A
CLASS B
+24 V
24 C
See
Note 1
II II

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
