Simplex 4100ES Installation Guide

2-12
Chapter 2 Installing FACP Components
FACP Operator Interface
Operator Interface The following images show the two operator interfaces which are available with the 4100ES.
The Operator Interface is used to obtain alarm, supervisory, trouble and other status via the
Liquid Crystal Display and LEDs. Control functions are accessed using dedicated and 
user-programmable keys.
Figure 2-10 is the standard 2x40 LCD Operator Interface. This model includes a 2 line by 40
character Liquid Crystal Display. Figure 2-11 is the Flexible User Interface. This model
includes a multi-line Liquid Crystal Display, which can display more information 
simultaneously.

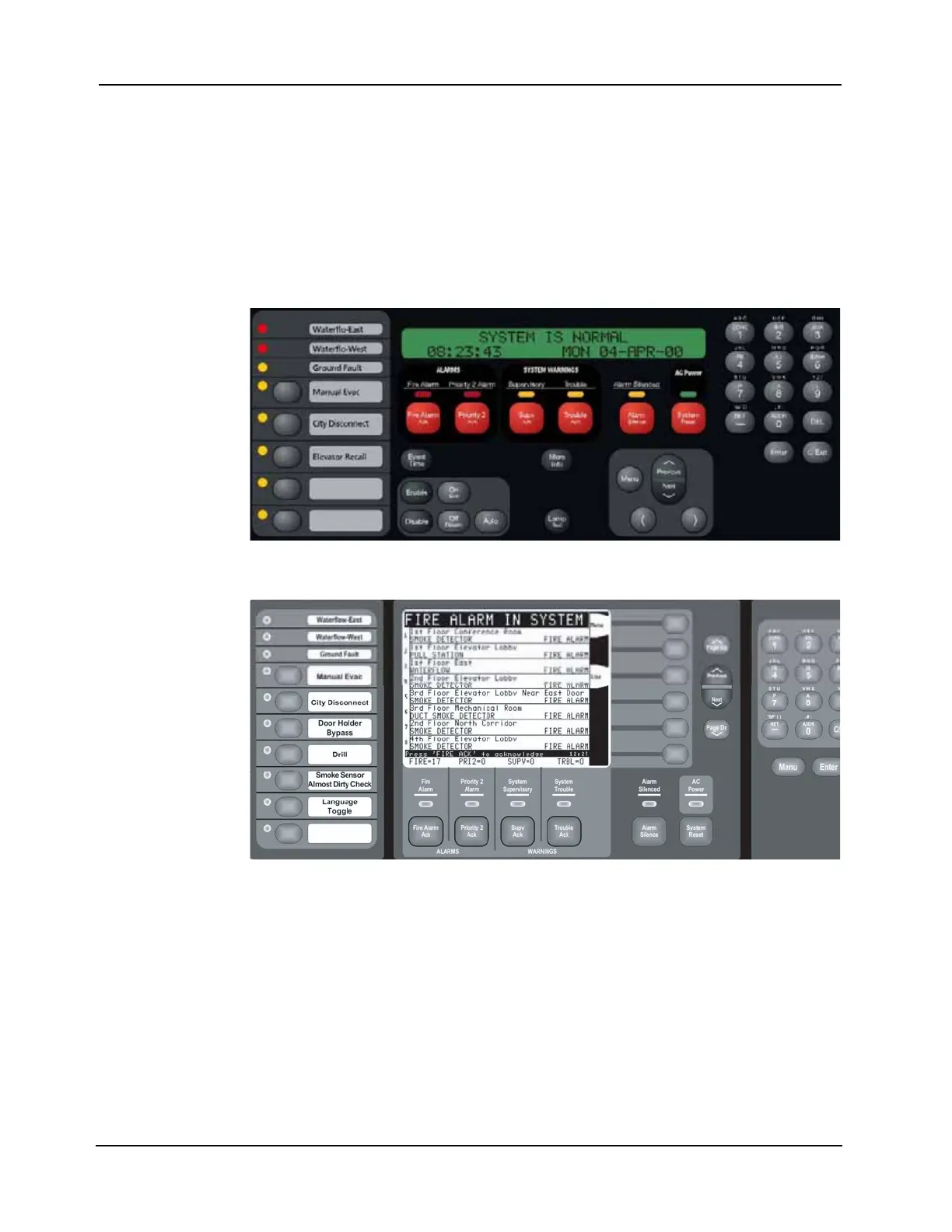

Figure 2-10. Operator Interface
Figure 2-11. Flexible User Interface

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
