Simplex 4100ES Installation Guide

4-18
Chapter 4 Networking
Step 4. Wiring Network Cards (continued)
Wiring
Illustrations
The following figures show how to wire the NIC. The illustrations use the 565-274 and 
565-275 motherboards only. If you are using the 4100ES motherboard, refer to Figure 4-14
along with the figures below.
Wired Media Style
7 Wiring

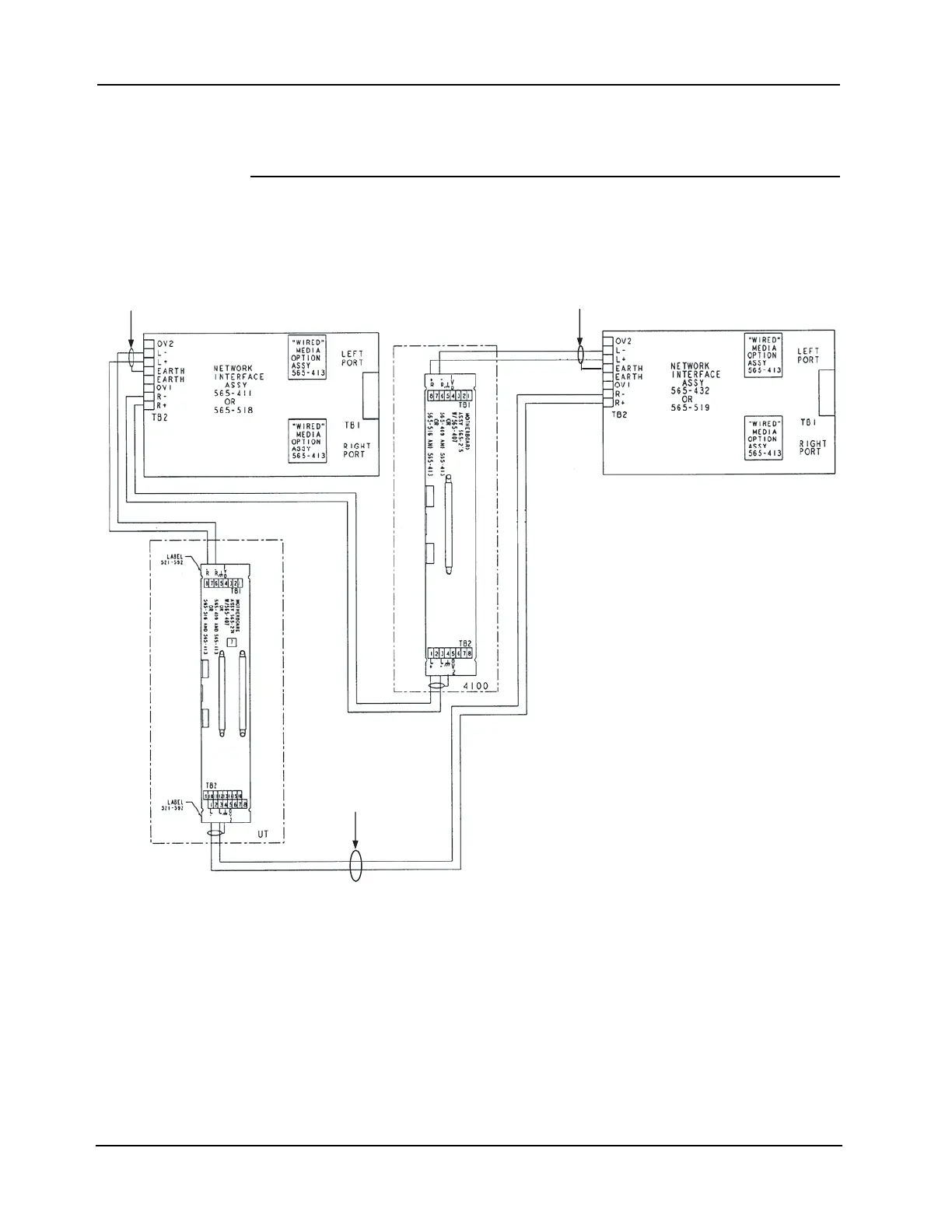

Figure 4-14. Wired Media, Style 7 Wiring
Notes:
1. Refer to general wiring precautions in this
chapter, as well as Field Wiring
Specifications: document 900-082 for
4100; 900-242 for 4100ES.
2. When the 565-413 Interface Card is used
with 565-516, -407, –409, or 566-793
Network Card, TB1 on the 565-413
Interface Card cannot be used.
Connection to the motherboard is required
as shown.
3. The shield should only be connected at
one end of the line. The shield is
connected to the left port.
4. On assembly 565-274, JW1 and JW2
must be installed. Jumper plugs must not
be installed on P5-P8.
5. Each “wired” media cable requires two
ferrite beads, one at each end (included in
the shipping group). Refer to installation
instructions 574-041 for proper bead
mounting.
SEE NOTE 3
SEE NOTE 5
SEE NOTE 3
OR
566-826
OR
566-825

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
