2-44
Chapter 2 Installing FACP Components
The Terminal Block Utility Module
Overview The 4100-0632 Terminal Block Utility Module is an all-purpose terminal block that mounts to
an electronics bay, above or below the power distribution interface (PDI). Each module utilizes
one block of mounting space.
The terminal block utility module has two 16-position terminal blocks that accept up to a
maximum of 12 AWG wire.
Mounting to the
Electronics Bay
Follow the directions below to mount the terminal block utility module to the electronics bay.
1. Align the terminal block utility module to any two compatible screw holes on the electronics
bay. Position the higher terminal block towards the middle of the bay. There are eight
possible locations: four above and four below the PDI. Refer to Figure 2-41.
2. Secure the terminal block utility module to the electronics bay with two #6 screws and
lockwashers.
3. The shorting strip may be removed or modified, depending on the application.

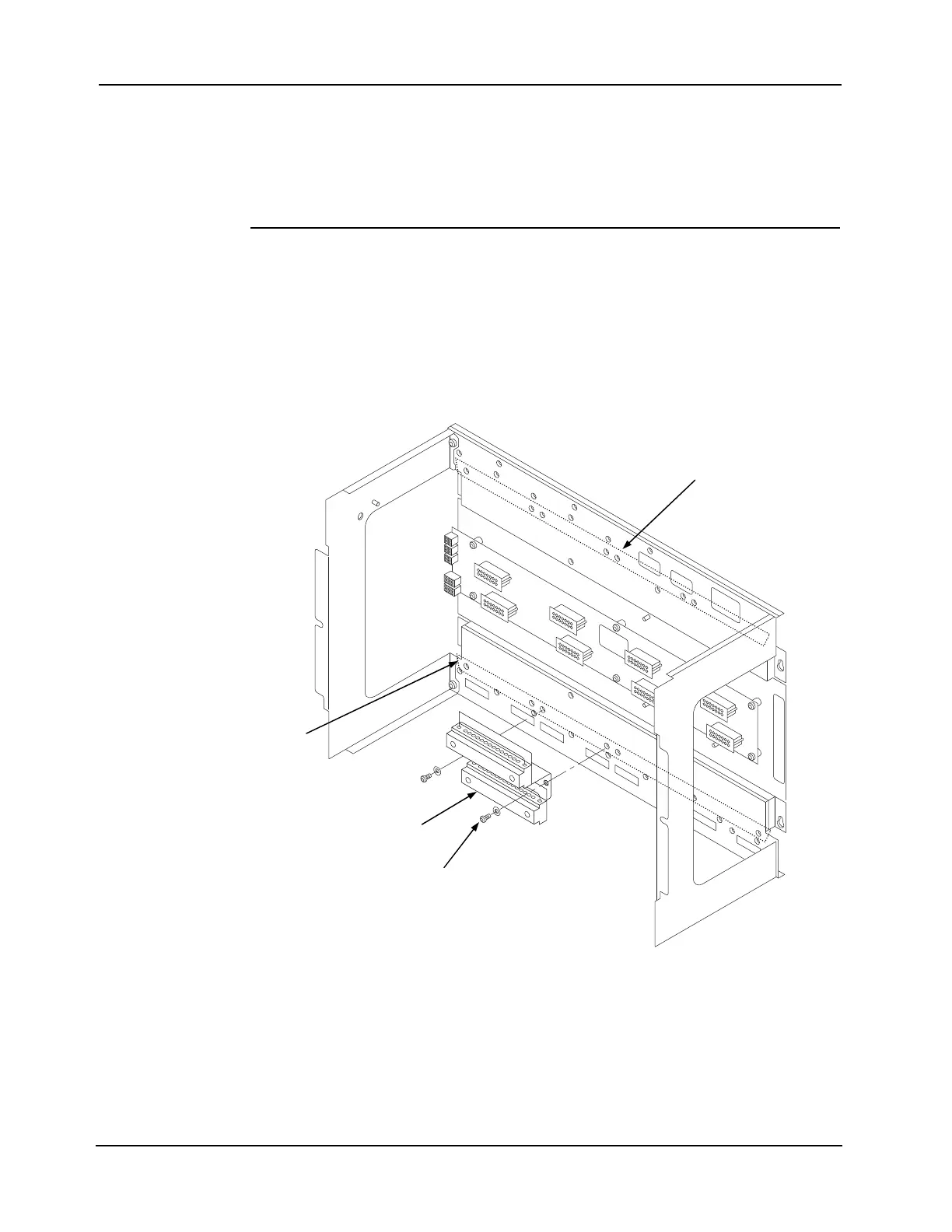

Figure 2-41. Terminal Block Utility Module Mounting
TERMINAL BLOCK UTILITY MODULE
#6 SCREW AND LOCKWASHER
SCREW HOLES FOR
MODULE BRACKET
SCREW HOLES FOR
MODULE BRACKET
