Simplex 4100ES Installation Guide

2-11
Chapter 2 Installing FACP Components
EPS CPU Bay Overview (continued)
Extended Power
Supply with
IDNet 2
The 4100-3109 IDNet 2 is a slave card that provides the Fire Alarm Control Panel (FACP) with
an isolated IDNet channel which contains two isolated loops.
This card is compatible with IDNet communicating initiating devices and allows the system
CPU to communicate with up to 250 peripheral devices, such as smoke detectors and pull
stations.

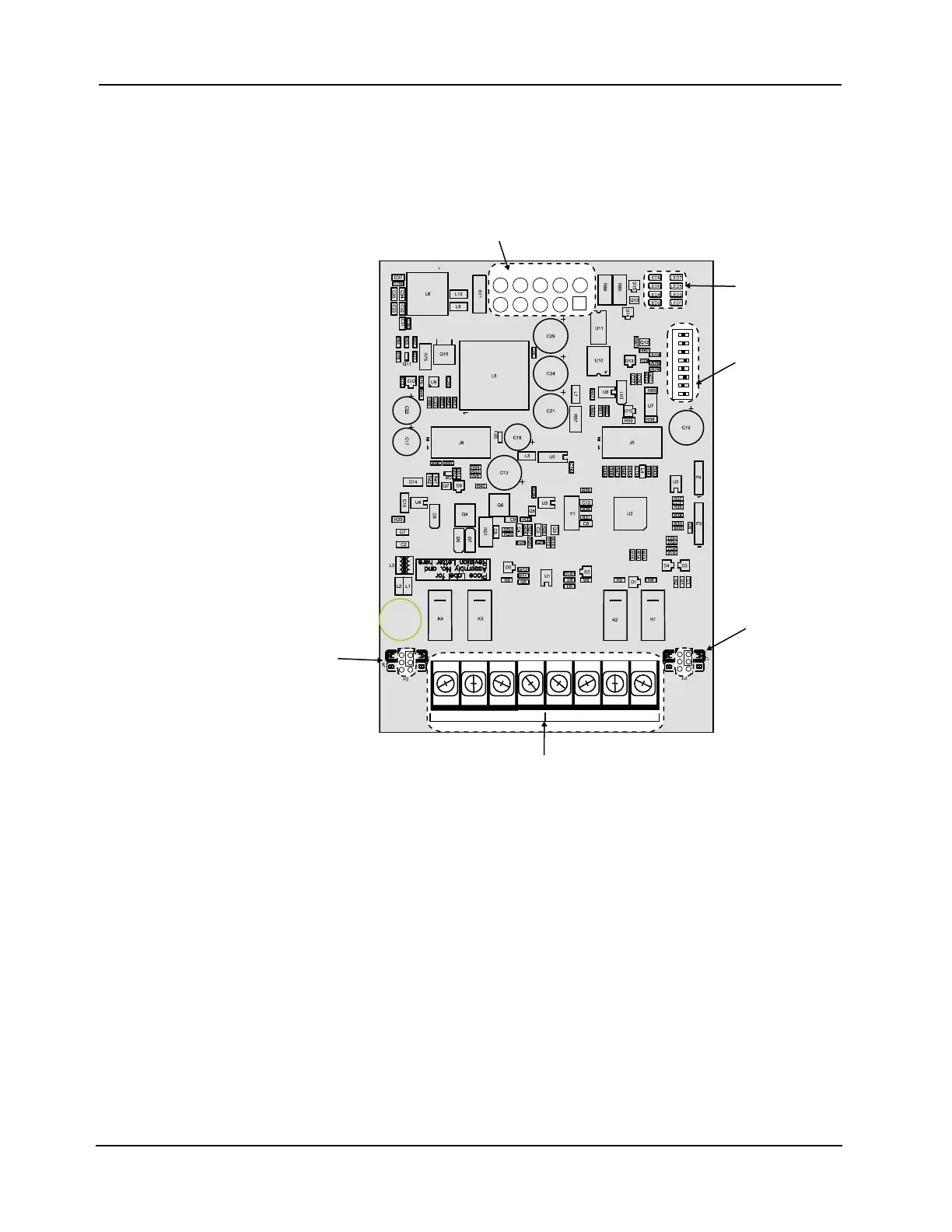

Figure 2-9. IDNet 2 Card
IDNET 2
12
34
5
6
7
8
B+
B-A+A-
B+B-A+A-
LOOP 1LOOP 2
Loop 1
Class A/B
Jumper (P1)
Loop 2
Class A/B
Jumper (P2)
PDI Connector (P5)
Address
Dip Switch
(SW1)
LEDs
IDNet Terminal Block (TB1)

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
