1-5
Chapter 1 Introduction to the 4100ES Fire Alarm System
MINIPLEX configuration (continued)
RUI communication
4100ES power and data from the CPU may have to be routed over long distances in a
MINIPLEX system. An RUI line, routed from either the CPU in the 4100ES or the RUI card in
the 4100ES, allows the power and data to travel longer distances. Once the RUI line terminates
at a remote box, the TIC (4100ES) or RIC (4100) at that box distributes the CPU’s power and
data to the remote modules.

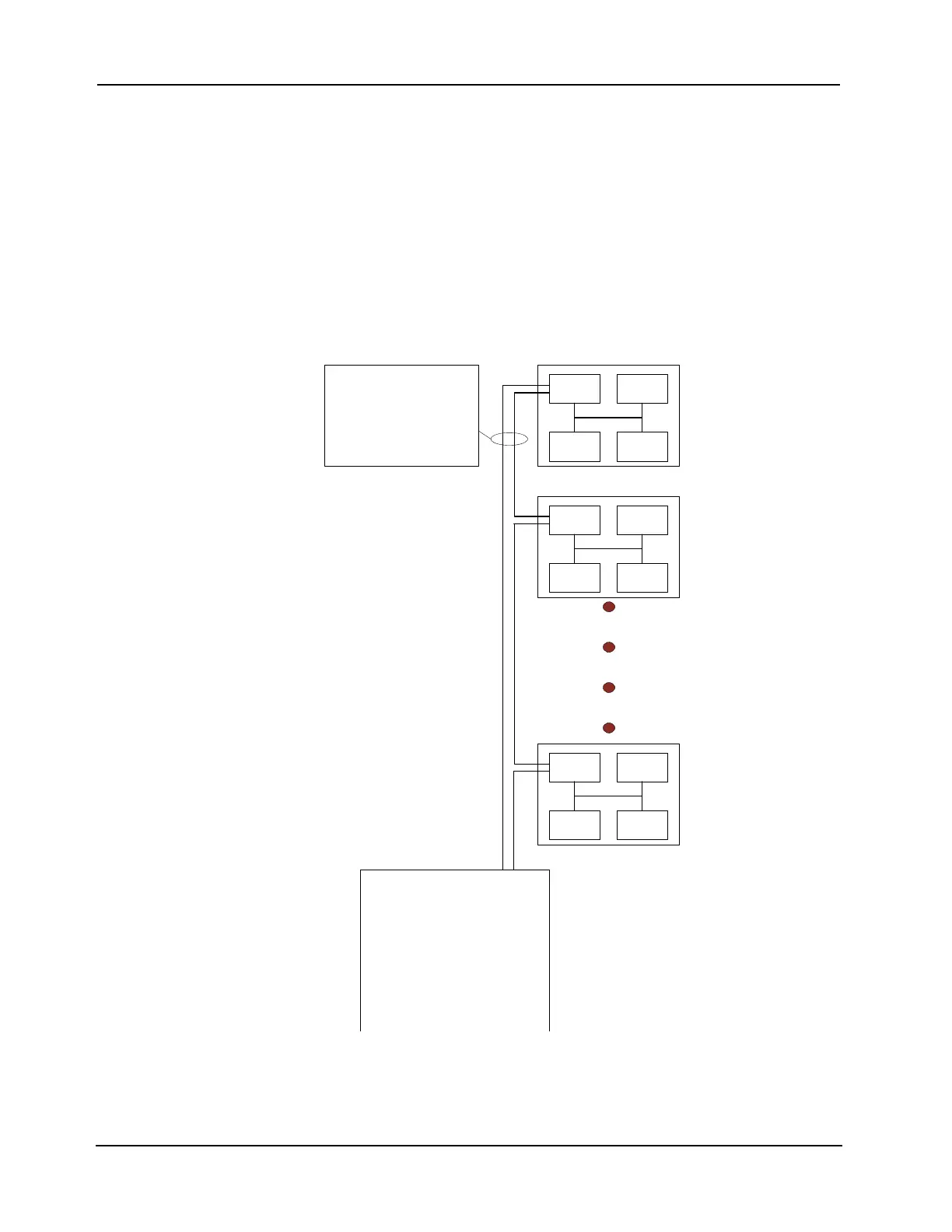

Figure 1-2 outlines this process in a typical 4100ES MINIPLEX setup.
Figure 1-2. MINIPLEX 4100ES system
4100ES
RUI Risers - 4 MAX (same channel)
(from CPU Motherboard or Remote
Unit Interface Card)
Digital Audio Riser
(from Digital Audio Controller)
Analog Audio Risers - 2MAX
(from Analog Audio Controller)
FF Telephone Riser
(from Phone Controller)
Transponders may be located
further apart (within the 2500'
limit) as called for by the
application requirements.
Risers from 4100ES to
Remote Transponders
RUI
Analog Audio
Digital Audio (DAR)
FF Telephone
Shown wired as Style 7
(Style 4 also supported)
9th Floor
Transponder
Unit
6th Floor
Transponder
Unit
3rd Floor
Transponder
Unit
RUI I/F Slave
Slave Slave
RUI I/F Slave
Slave Slave
RUI I/F Slave
Slave Slave
Note:
Although not shown, nested
RUI is supported up to one
level deep.
To Next Page
