Simplex 4100ES Installation Guide

Digital Audio PDI Termination Plug
Overview A Digital Audio Riser Termination Plug (734-183) is provided with every Digital Audio
Controller or Digital Audio Riser Module. You must use this termination plug to properly
terminate the Digital Audio Signal on the PDI.
Installing a Digital
Audio PDI
Termination Plug
To properly terminate the Digital Audio Signal on the PDI, you must install the termination
plug into P7 of the Node’s last bay that has Digital Audio. The Digital Audio Controller should
be the first item and the Digital Audio Termination Plug the last item in the Digital Audio PDI
Bay-to-Bay wiring. See Figure 4-22.

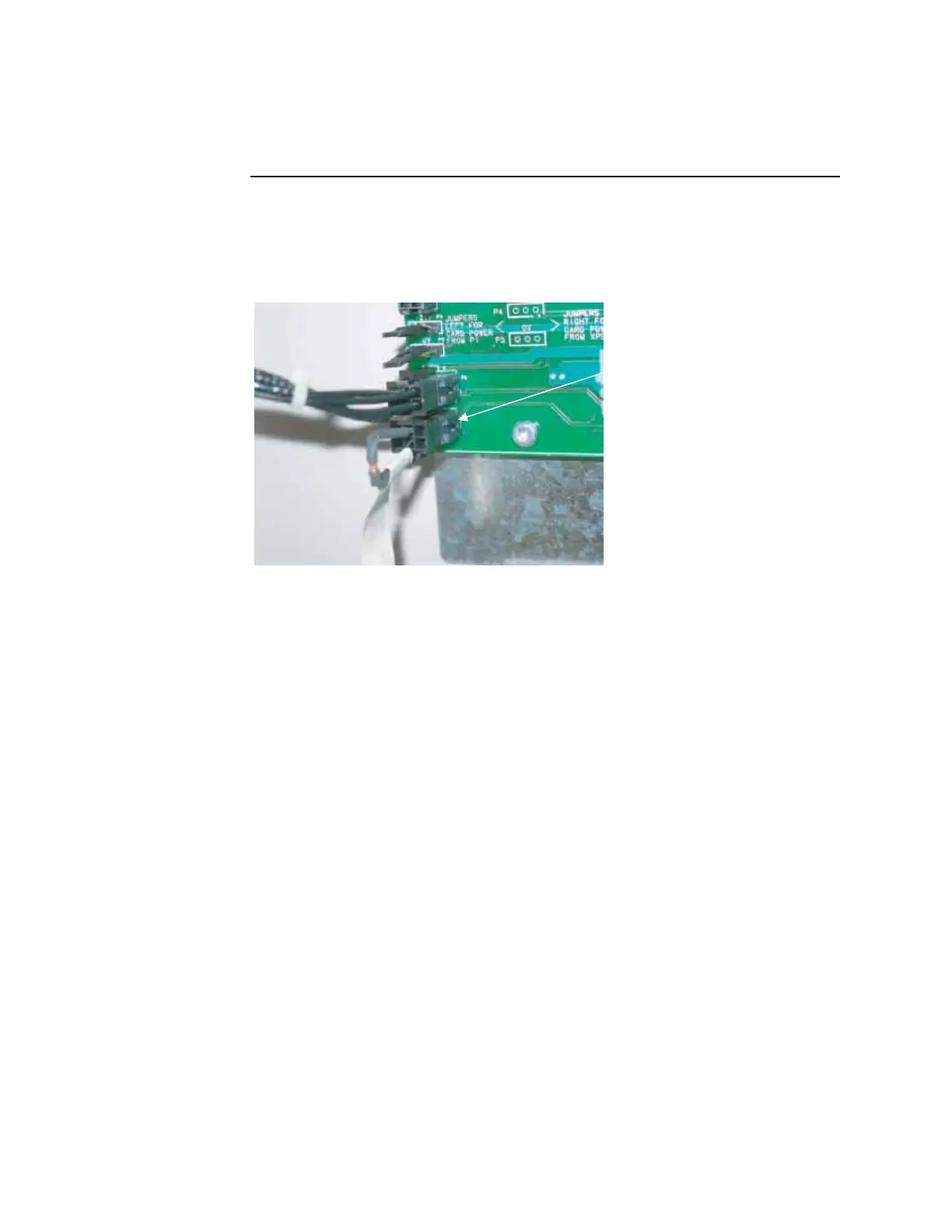

Figure 4-22. Installing a Digital Audio PDI Termination Plug
Place the Digital Audio PDI
Termination Plug into P7 of the
Node’s last bay with Digital Audio.

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
