Chapter 4 Networking
Introduction to the 4100 Network Interface Card (continued)
NIC Card Modules

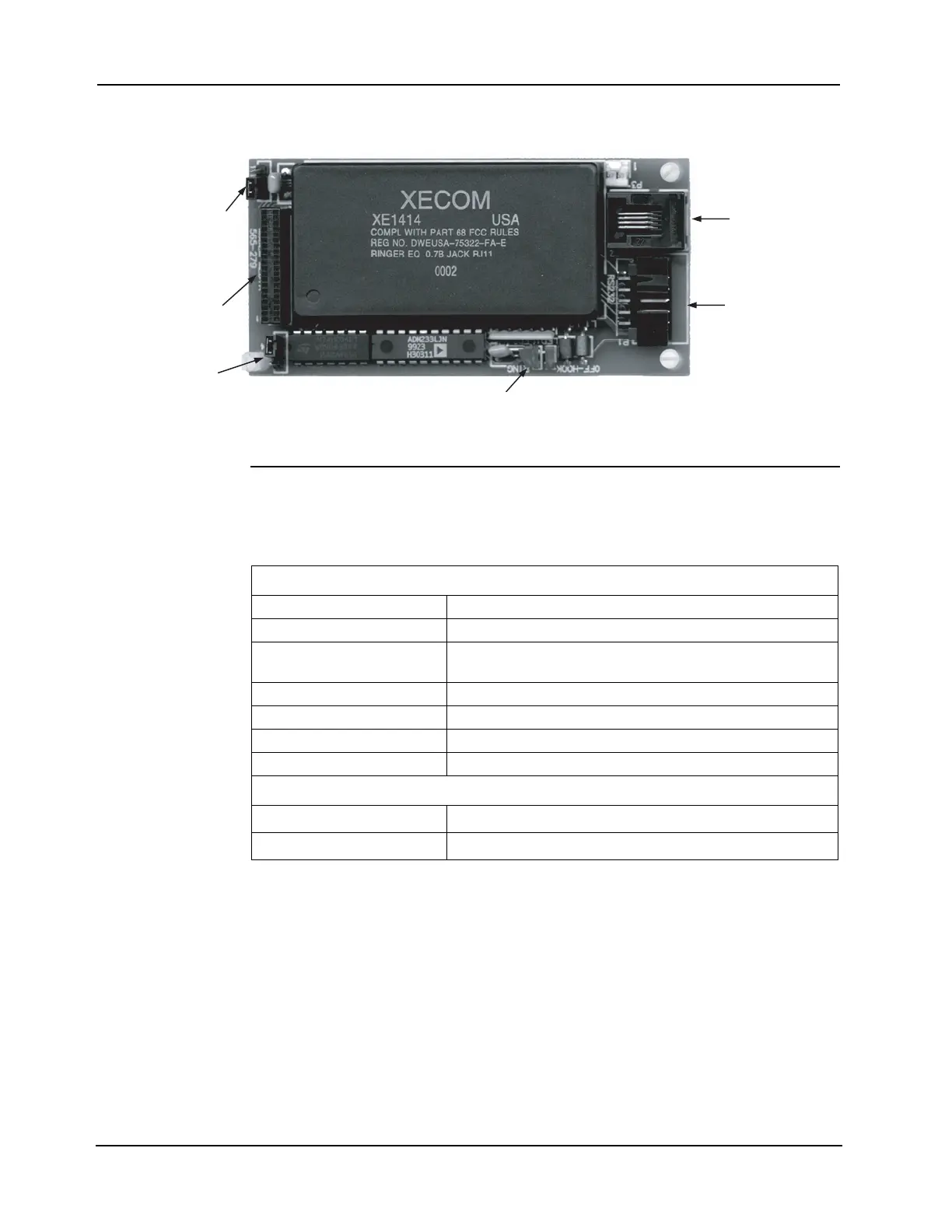

Figure 4-6. The 4100-6055 Modem Media Card (565-279 or 566-338)
Requirements
and Limitations
Refer to Table 4-1 for electrical environmental requirements for the 4100 NIC and media cards.
RJ-11
CONNECTOR
(P3)
RS-232
CONNECTOR
(P1) (USED FOR
PHYSICAL
BRIDGE)
DATA
TRANSMISSION
JUMPER PORT
(P4)
MODEM TYPE
JUMPER PORT
(P5)
STATUS LEDs (LED1, LED2)
40-PIN NETWORK
INTERFACE CARD
CONNECTOR (J1)
Table 4-1. Electrical and Environmental Specifications
Electrical Specifications
Network Interface Card Startup, no media cards: 8 VDC @ 110 mA
565-516 Nominal, no media cards: 20 to 32 VDC @ 0 mA
Network Interface Card 566-
793
Nominal, no media cards: 20 to 32 VDC @ 46 mA
Modem Media Card 5 VDC @ 180 mA max.
Fiber Using 24 VDC power supply: 20 VDC @ 140 mA max.
Media Card Using 5 V power supply (GCC/NPU): 5 VDC @ 130 mA max.
Wired Media Card 4.75 to 5.25 VDC @ 170 mA max.
Environmental Specifications (All Modules)
Operating Temperature
32
o
F to 120
o
F (0
o
C× to 49
o
C)
Humidity
10% to 93% relative humidity at 90
o
F (32
o
C)

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
