Simplex 4100ES Installation Guide

6-12
Chapter 6 4100ES SPS Field Wiring
SPS IDNet Wiring (continued)
Class B Wiring 1. On TB1, jumper B+ to A+, and jumper B- to A-.
2. Route wire (between 12 and 18 AWG) from the A+, A-, and SHIELD outputs on TB1 of the
SPS to a junction box. Begin “T” tapping at the junction box. The maximum distance
between the SPS and an IDNet appliance is 2,500 feet (762 m). The maximum wiring 
distance for any IDNet circuit is 10,000 feet (3,048 m) or 0.58 uF.
Figure 6-7 shows Class B wiring.

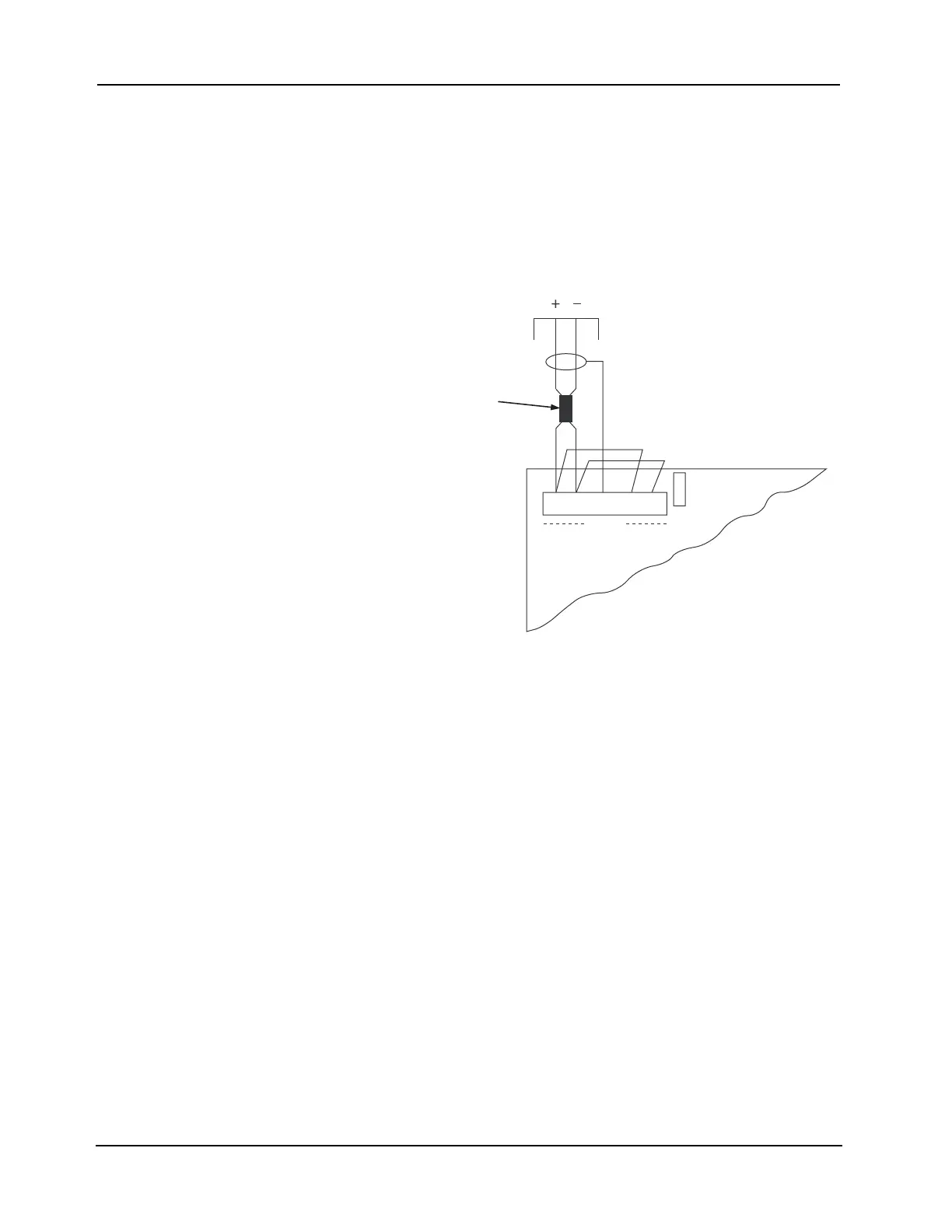

Figure 6-7. Class B Wiring
B+ B- SHLD
IDNet
A+
P1
3
2
1
A-
IDNet LINES TO DEVICES
(CLASS B / STYLE 4)
IMPORTANT:
x Max. allowed wire load is 10,000 feet
total or .58uF. Maximum distance to
any device is 2500 feet (126-250
devices) or 4000 feet (up to 125
devices)
Ferrite bead
required.

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
