4-10

Chapter 4 Networking

Step 3. Mounting Network Cards

Daughter Card

Installing

The 4100 NIC daughter card, shown in Figure 4-8, inserts into motherboards as follows:

• If the 565-274 Master Motherboard is being used, the NIC daughter card is inserted into

connector J1.

• If the 566-227 Master Motherboard or 565-275 Motherboard is used, the NIC daughter

card is inserted into connector J2.

• If the 566-938 RUI+ CPU Master Motherboard is used, the NIC daughter card is inserted

into connector J6.

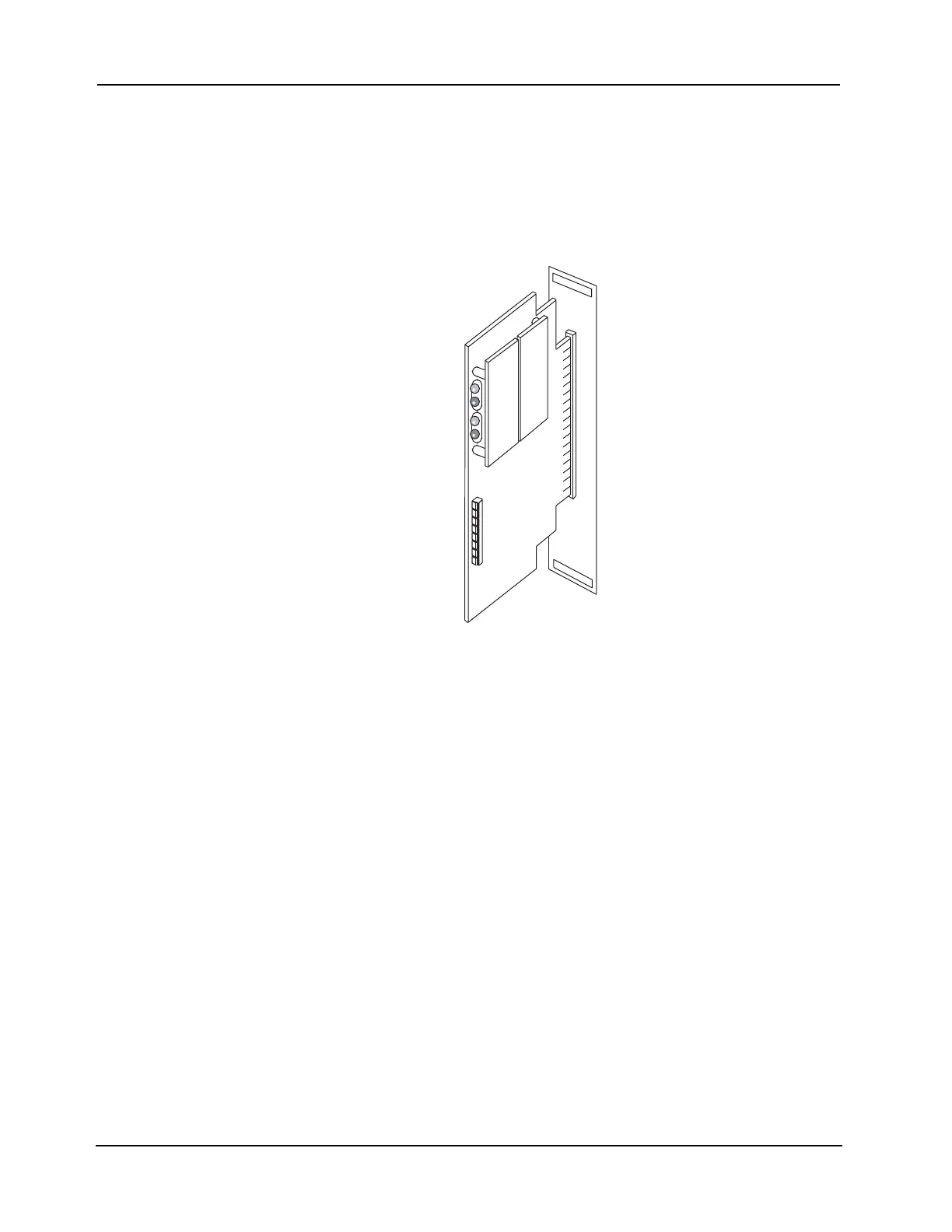

Figure 4-8. Installing the Daughter Card
