2-28
Chapter 2 Installing FACP Components
Step 6. Installing Modules into Expansion Bays (continued)
Mixed 4100
Motherboard/
4100ES 4”x5”
Card Placement
Guidelines
• As shown in Figure 2-30, motherboards can be installed alongside 4” X 5” cards, if
necessary.

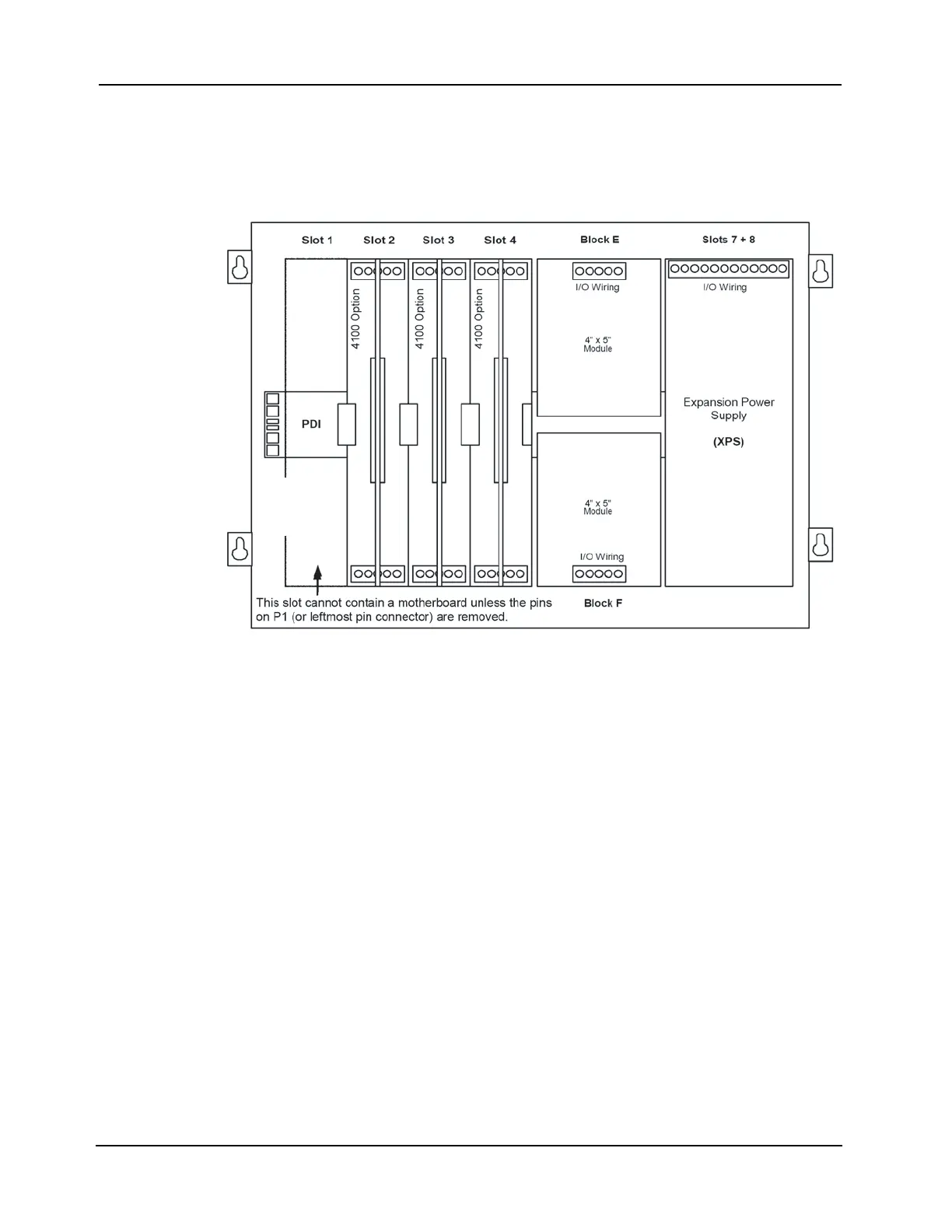

Figure 2-30. Mixed Module Placement
