Chapter 2 Installing FACP Components
FACP Expansion Bays
Additional CPU
Bay Modules
4100-6030 Service Modem Card. CPU mezzanine card. Provides a connection to remote PCs
for diagnostics and programming purposes.
4100-6031 City Card with Disconnect. FACP power supply mezzanine card. Provides two
UL-listed city connections to the municipal fire department or other remote supervising station.
Contains a hardware disconnect switch to allow for testing without alerting the remote station.
4100-6032 City Card. FACP power supply mezzanine card. Same as the 4100-6031, but
without the disconnect and testing option.
4100-6033 Alarm Relay Card. FACP power supply mezzanine card.
4100-6014 Modular Network Interface Card (NIC). A daughter card that mounts to the
CPU motherboard. Performs 4100 networking operations. May be installed with the 4100-6056
Wired Media Card, the 4100-6057 Fiber Media Card, and/or the 4100-6055 Modem Media
Card.
Expansion Bays An FACP always has one CPU bay, but it may have one or two expansion bays as well.
Expansion bays contain a variety of additional modules that the system might require.

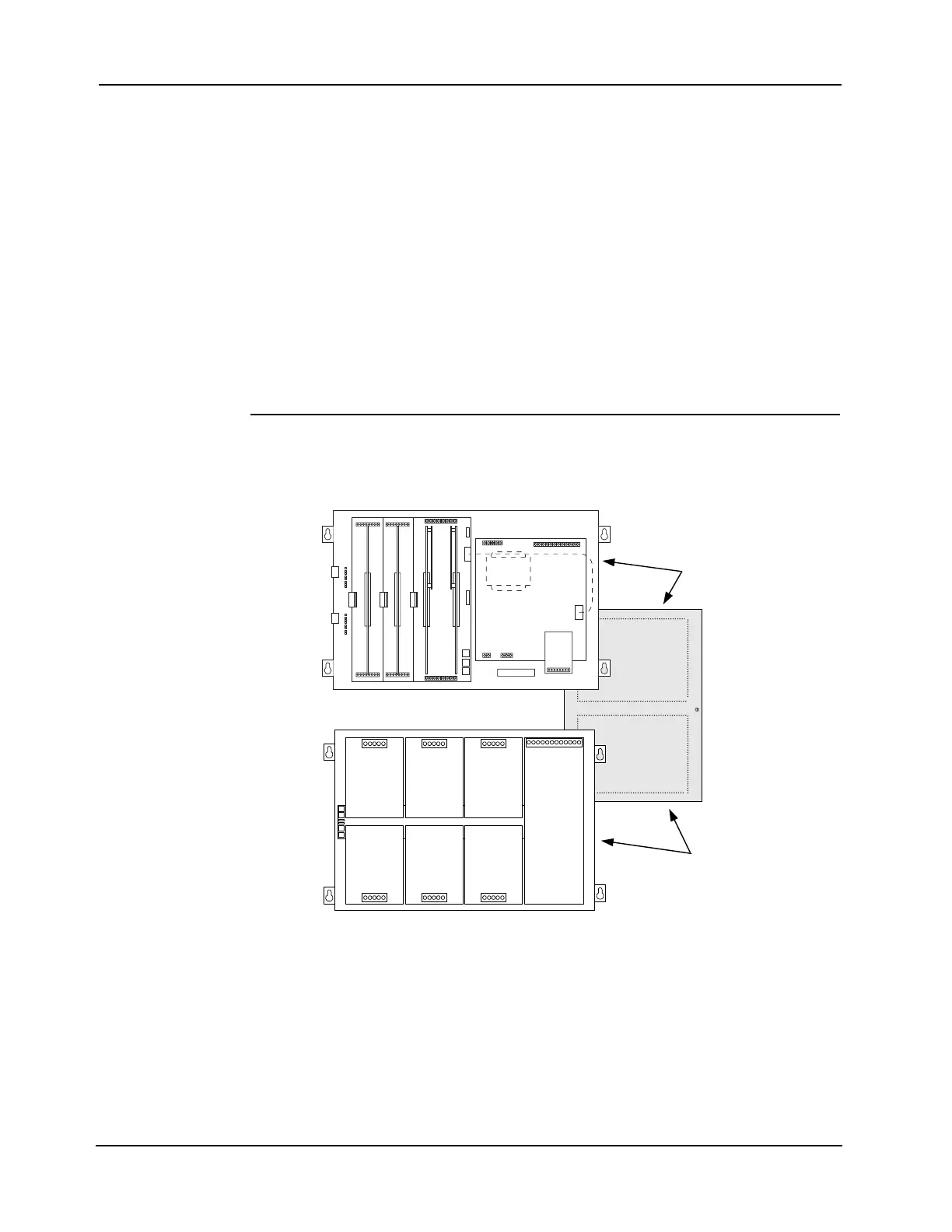

Figure 2-12. Expansion Bays
TWO-BAY
CABINET
MASTER
CONTROLLER BAY
(always on top)
EXPANSION
BAY
To Next Page
