Simplex 4100ES Installation Guide

4-15
Chapter 4 Networking
Step 4. Wiring Network Cards (continued)
4190-9010
Coupler
Requirements

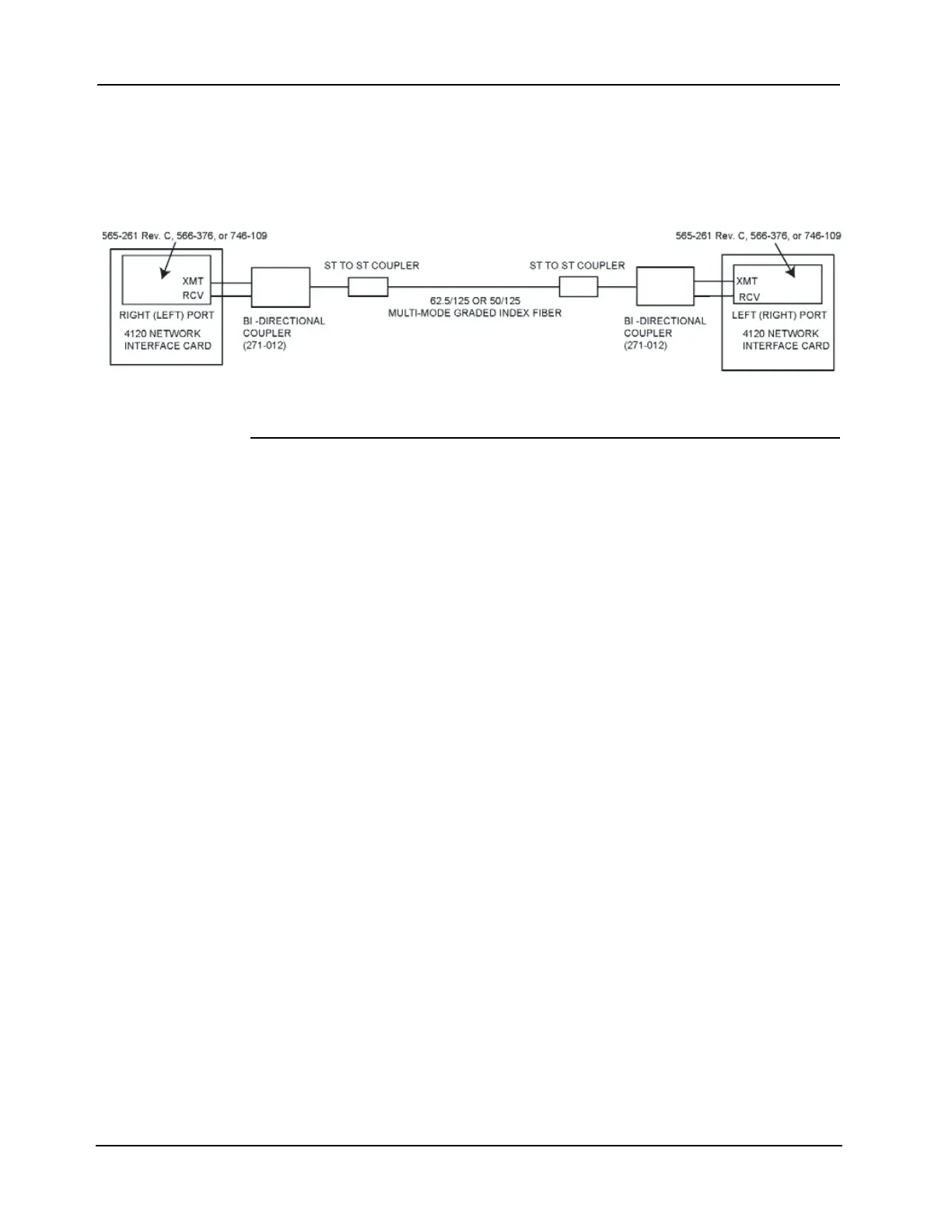

Figure 4-11 shows coupler wiring.
Figure 4-11. Coupler Wiring
Wiring with the
Wired Media Card
Refer to the guidelines and figures in this topic to use wired media cards.
• When the 565-413 Interface Card is used with 565-516, -407, –409, or 566-793 Network
Card, TB1 on the 565-413 Interface Card cannot be used. Connection to the motherboard
is required as shown.
• The shield should only be connected at one end of the line. The shield is connected to the
left port.
• When wiring leaves the building, 2081-9044 Overvoltage Protectors are required. One
overvoltage protector is installed where wiring leaves the building; another is installed
where wiring enters the next building.
Continued on next page
FD4-848-1
IMPORTANT: TB1 on the wired media card must not be used when it is
connected to the 4100-6014 NIC.

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
