Simplex 4100ES Installation Guide

6-4
Chapter 6 4100ES SPS Field Wiring
General Field Wiring Guidelines (continued)
Power-Limited
Guidelines
• Auxiliary power only: Supervision must be provided if the auxiliary power circuit is to be wired as a
power-limited circuit. In order to connect a circuit using power-limited wiring, the devices being
powered must all be addressable, or a UL Listed EOL relay must be used to supervise the circuit.
Refer to Figure 6-2 for wiring directions for the EOL relay.

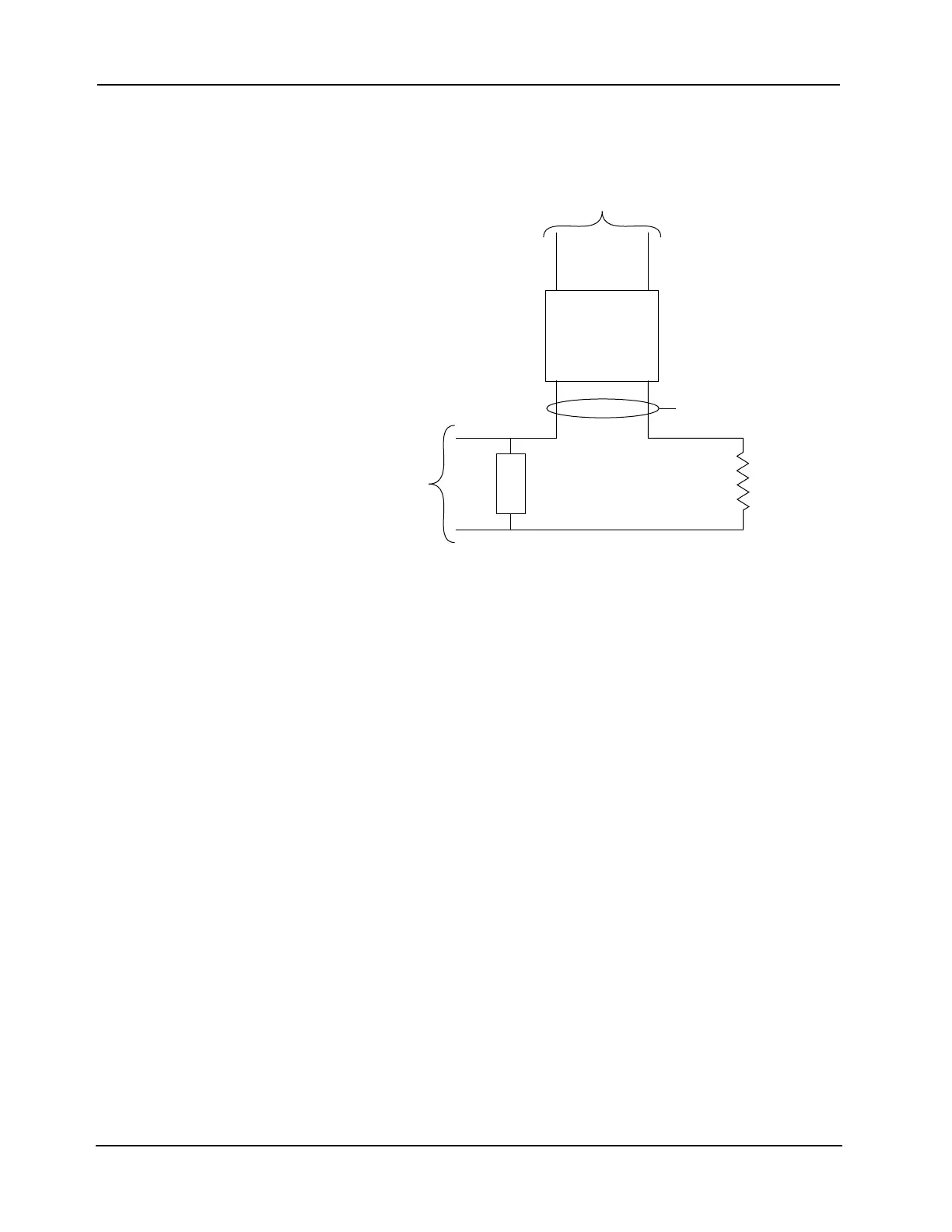

Figure 6-2. The EOL Relay
2098-9739
END OF
LINE RELAY
TO AUX POWER
RED BLACK
LAST IDC
DEVICE
YELLOW
RESISTORIDC
Note: The 2098-9739 Relay is
used as an example.
Other UL Listed 24VDC
EOL relays can be used,
depending on the
application.

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
