Simplex 4100ES Installation Guide

A-1
Appendix A
The Device Configuration DIP Switch
Overview Addressable cards include a bank of eight DIP switches. From left to right (see Figure A-1)
these switches are designated as SWx-1 through SWx-8. The function of these switches is as
follows:
• SWx-1. This switch sets the baud rate for the internal 4100 communications line running
between the card and the CPU. Set this switch to ON.
• SWx-2 through SWx-8. These switches set the card’s address within the 4100 FACP.
Refer to Table A-1 for a complete list of the switch settings for all of the possible card
addresses.
Note: You must set these switches to the value assigned to the card by the ES Panel Programmer.

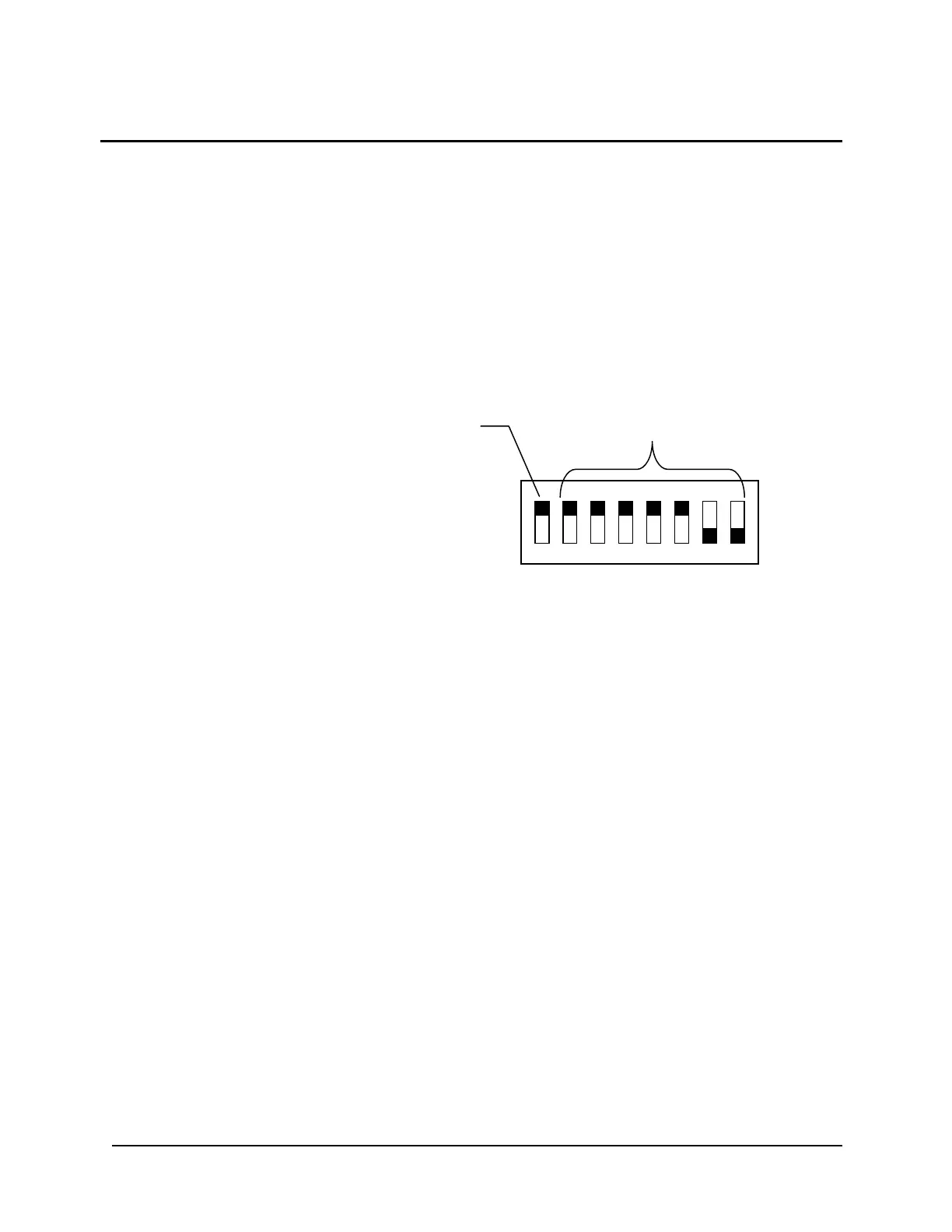

Figure A-1. DIP Switch SWx
18765432
ON
OFF
DIP Switches SWx-2 through
SWx-8 set the Card Address.
Figure shows an Address of 3.
4100 Comm. Baud Rate.
Switch (SWx-1)
Must Be Set to ON

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
