ECDIS-E User Guide Routes
65934012 8-27

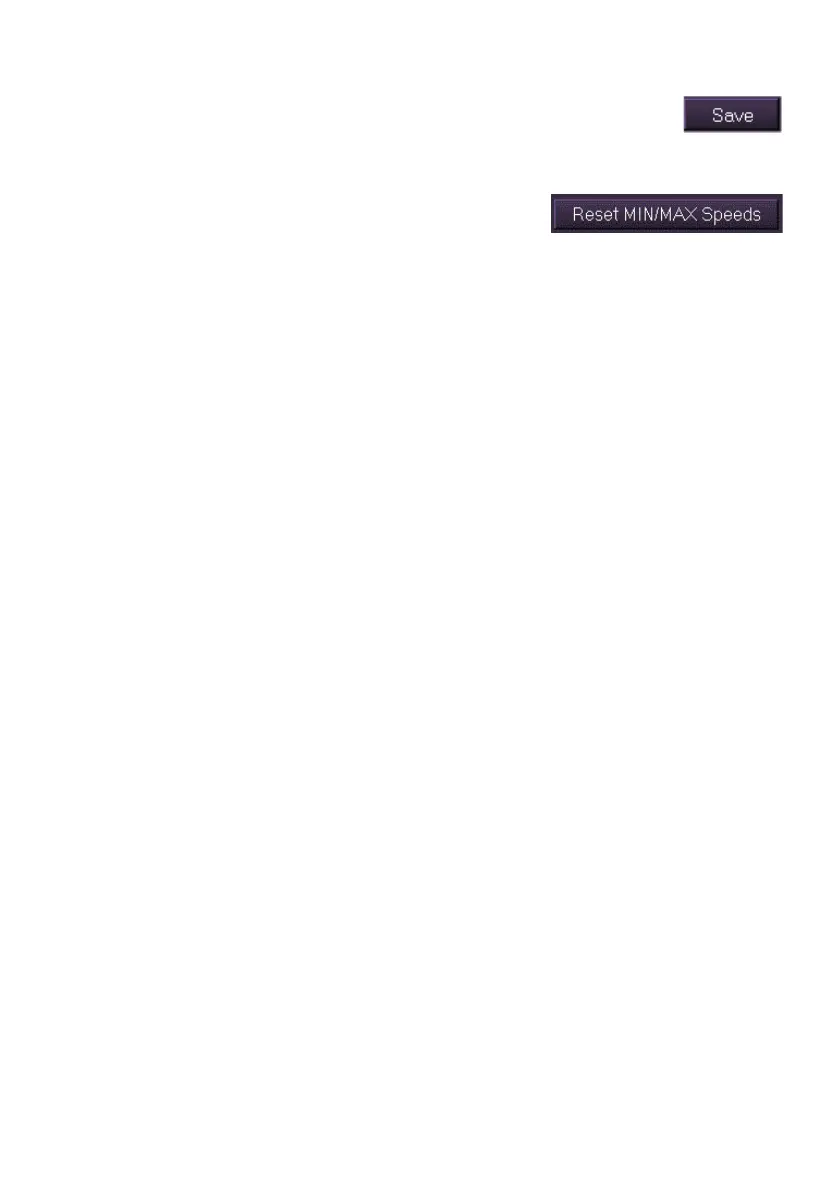

If changes to the edited route have been made the route name
shows an asterisk after the name (e.g. Route 2*) To save any
changes to the currently edited route click on the Save button, the route is
saved and the asterisk removed from the name.
If manual changes have been made to planned
speeds over a route leg, or changes to the ETA,
clicking the Reset MIN/MAX Speeds button calculates and resets the
minimum and maximum speed values over each leg of the route.
The following editable data for each leg/turn segment is displayed as read-
only data in the Speed Planning Setup window:
 Planned Speed
 Minimum Speed
 Maximum Speed
Waypoint Data on Route Editor Table
The following waypoint data can be edited on the route editor table:
 Label - the name given to the waypoint (WPT1 etc.)
 Latitude/Longitude (L/L) values
 Turn rate - the rate through wheelover, shown in degrees per
minute
 Turn radius of wheelover
 Speed - planned ground speed of ownship along route leg
 MIN Speed - the minimum planned ground speed of own ship
along route leg.
 MAX Speed – the maximum planned ground speed of own ship
along route leg.
 XTD Limits (Port and Starboard) - the limit of deviation from the
planned route at which activation of an automatic off-track error
alarm occurs, shown in metres.
The following waypoint data is read-only on the route editor table:
 The estimated time of arrival (ETA) showing the date and time to
the wheelover, if a wheelover exists for the waypoint, otherwise the
ETA to the next waypoint.
