ECDIS-E User Guide Conning Information Display
65934012 12-9
Sea CID Page
The Sea page displays alphanumeric
information on prevailing sea conditions,
including history of depth below keel, wind
strength and direction (relative and true) and
pitch & roll data.

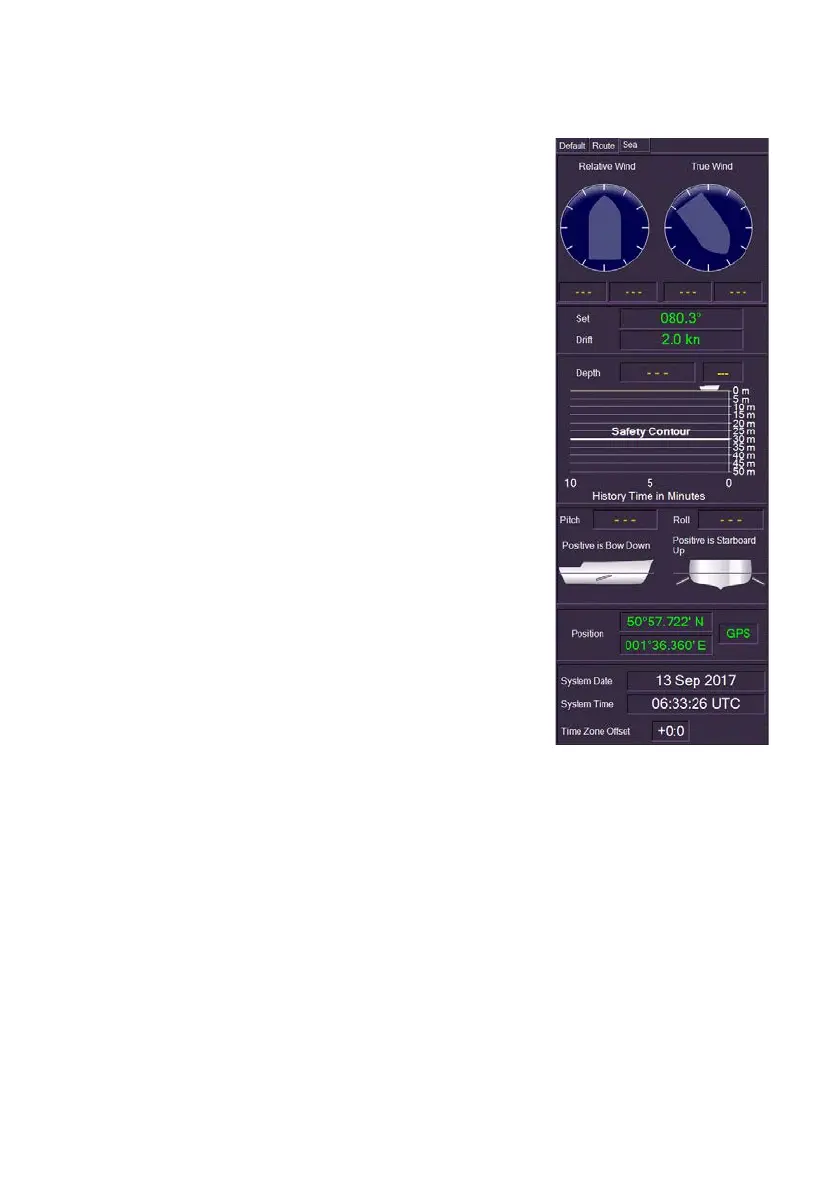

The default Sea page shows the data values
compiled from the following element groups:
• Wind (Relative) see Environment
• Wind (True) see Environment
• Set and Drift
• Depth Below Keel see Environment
• Pitch and Roll (Bow and Starboard)
including the following graphic elements:
• the current pitch angle as reported by
the selected pitch sensor.
• a side view graphic of a ship drawn at
an angle to represent the current pitch.
A pitch negative value is represented as
bow up.
• the current roll angle as reported by the
selected roll sensor.
• a front or back view graphic of a ship
drawn at an angle to represent the
current roll. A roll negative value is represented as port up.
• Position
• System date and time
