ECDIS-E User Guide System
65934012 13-25
6. Click the Eject button and remove the memory stick from the
trackball.
Applying the Config Update
When a modified configuration has been imported, all the nodes on the
system will require a re-start in order to apply the modified configuration,
see Shutdown.
Note that if an exception is raised during start-up after importing a modified
configuration, the system will automatically revert to the previous
configuration at the next re-start.

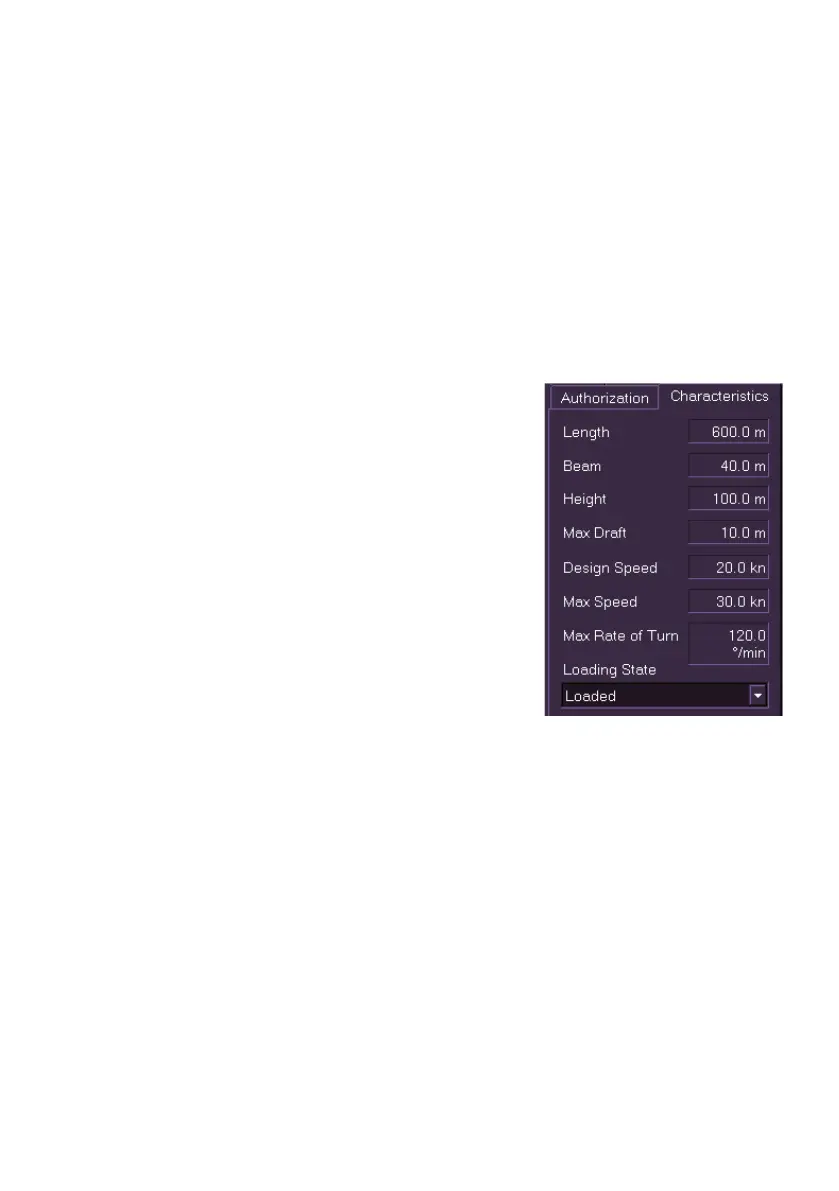

Characteristics
The Characteristics tab folder displays
persistent static data relating to own ship that
has been entered in the system configuration.
The read only data includes own ship length,
beam, height and maximum draft in metres,
design speed, maximum speed in knots and
maximum rate of turn in degrees per minute.
If more than one ship loading state has been
configured, these will be selectable from the
Loading State drop down list.
