Route CID Page

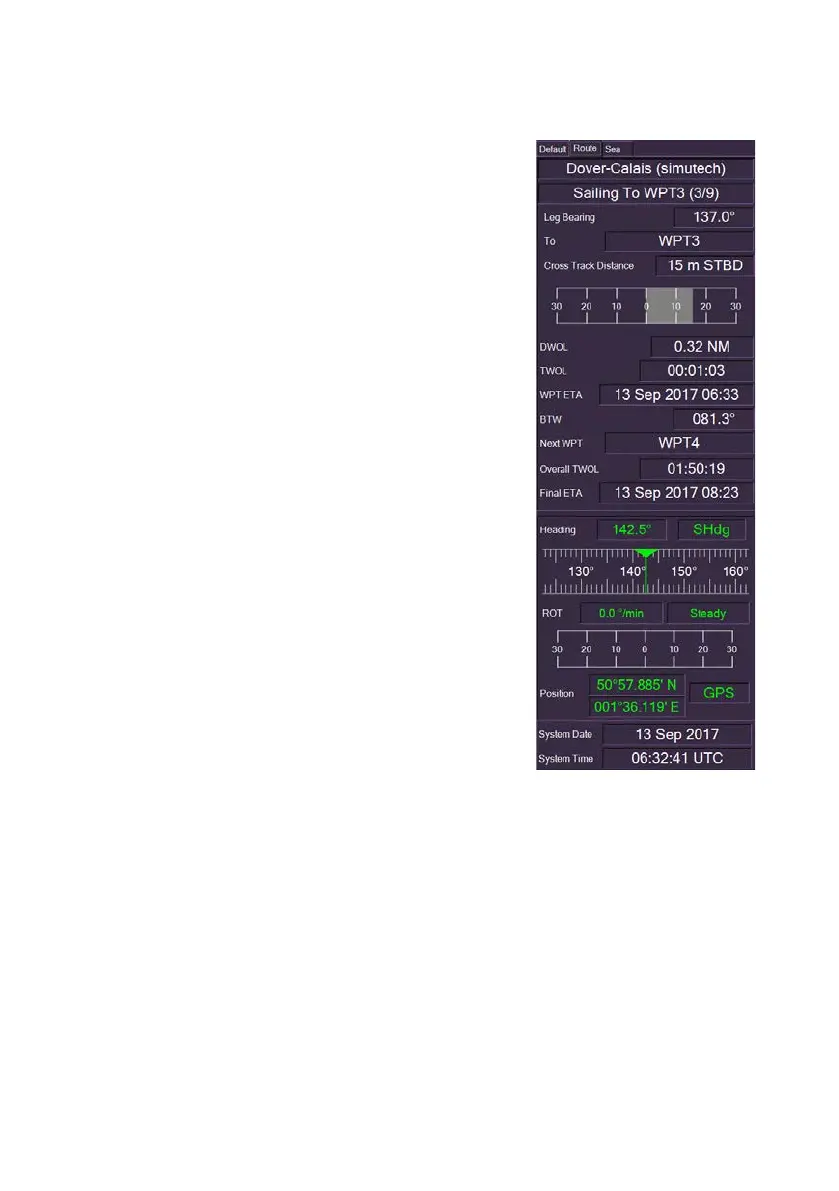

The Route page displays the following
alphanumeric information compiled from various
sensor data on the currently monitored route.
• Route Data, including:
• The name of the route being monitored
• The state of the ship on the route, e.g.
‘Sailing to WPT2 (2/5)’ denotes the next
waypoint on the route and the total
number of waypoints. The ship status may
be Idle, Sailing, Approaching, Turning,
Ending, or Finished.
• Leg Bearing - bearing of current route leg.
• To - the destination waypoint of the
current leg.
• Cross Track Distance - the distance own
ship is off track from route (L = left of
track, R = right of track), displayed as both
horizontal bar graph and distance value.
• DWOL – distance to go to the next
wheelover
• TWOL – time to go to the next wheelover..
• WPT ETA – estimated time of arrival at
next waypoint.
• BTW – bearing to next waypoint.
• Next WPT – the next waypoint on the
route.
• Overall TWOL - time to go to the end of the route using distances
along legs with own ship SOG for this leg and planned speeds for
future legs.
• Final ETA - estimated time of arrival at the end of route using own
ship SOG for this leg and planned speeds for future legs.
• Heading
• Rate Of Turn (ROT)
• Position
• System Date and Time
